Model: HX-slitting line
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com
A slitting operation is more than just a cutter—it's a coordinated sequence of uncoiling, leveling, slitting, tensioning, and recoiling. Haixing Industrial Group Co., Ltd. designs and builds every slitting line as a fully synchronized system, ensuring that each stage works in harmony to deliver consistent strip quality and optimal production efficiency.

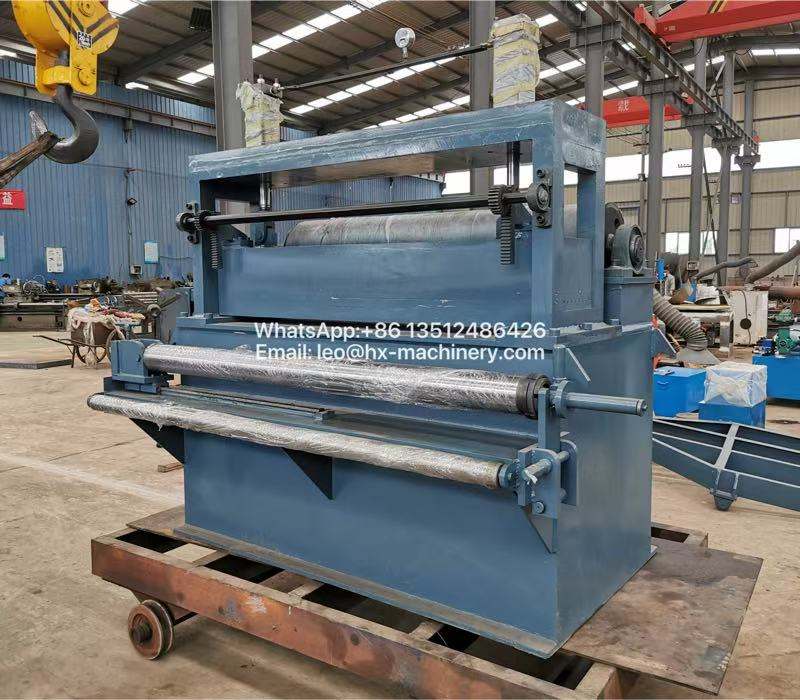

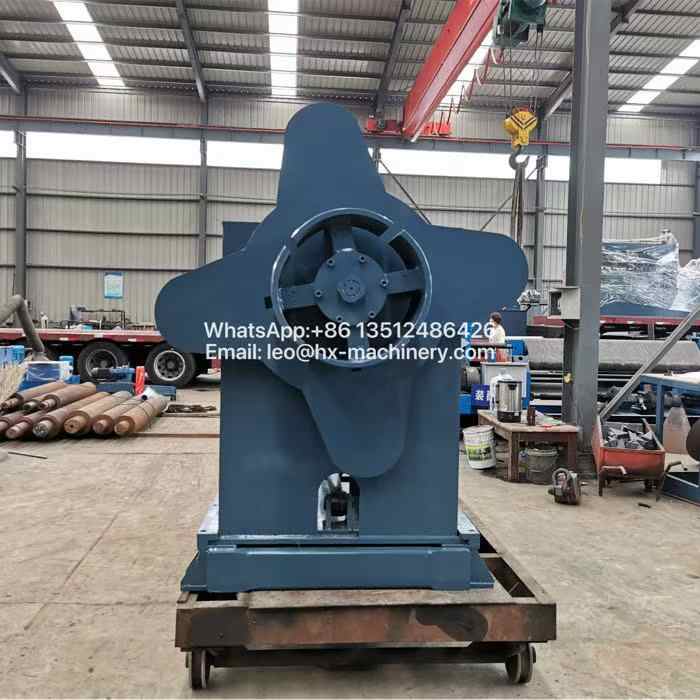

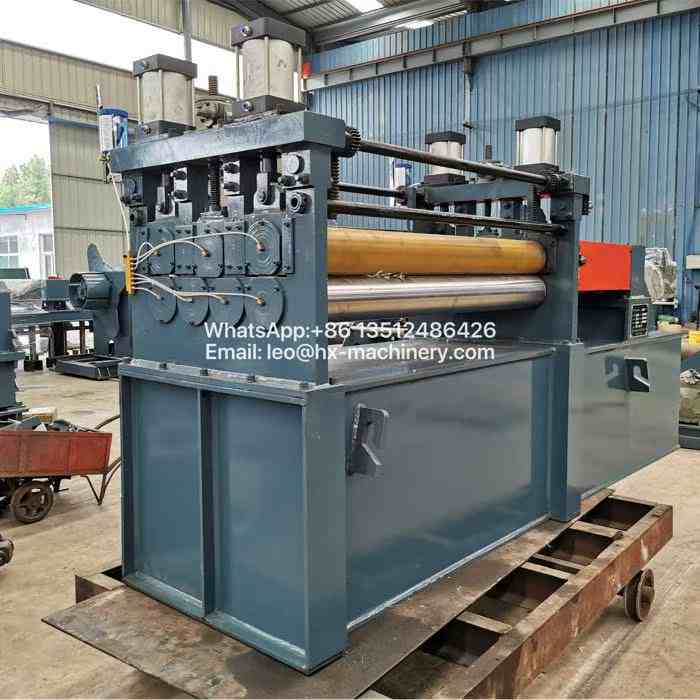

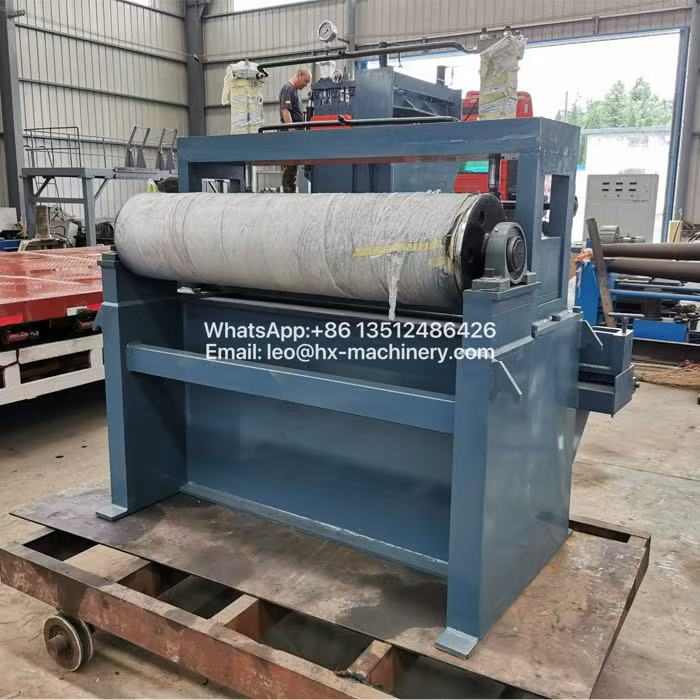

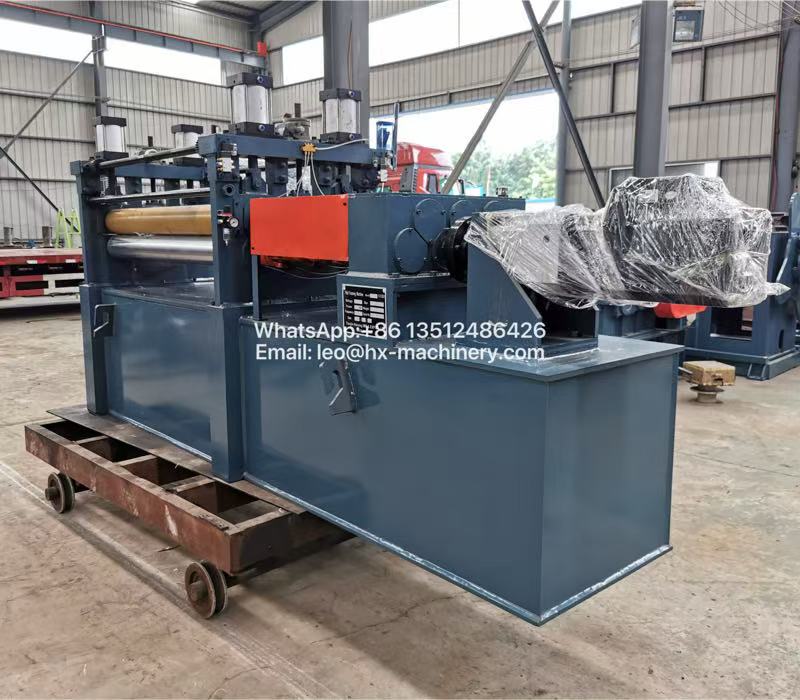

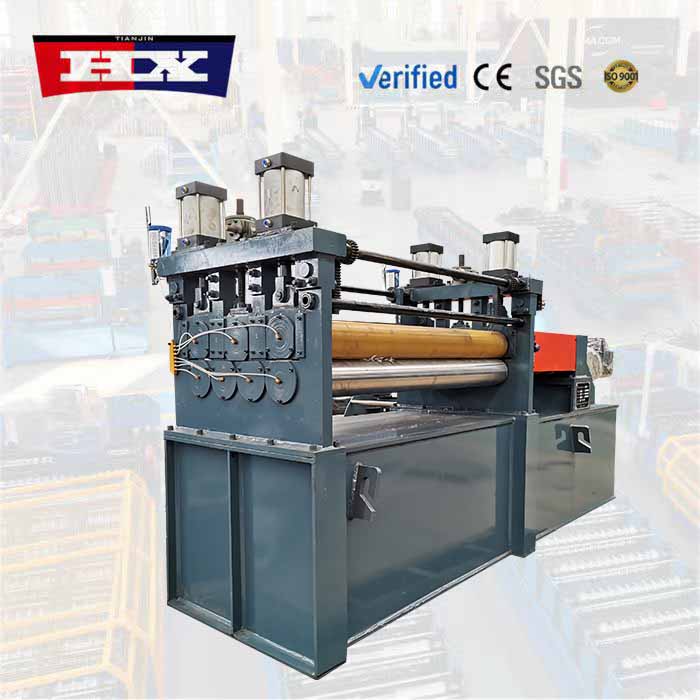

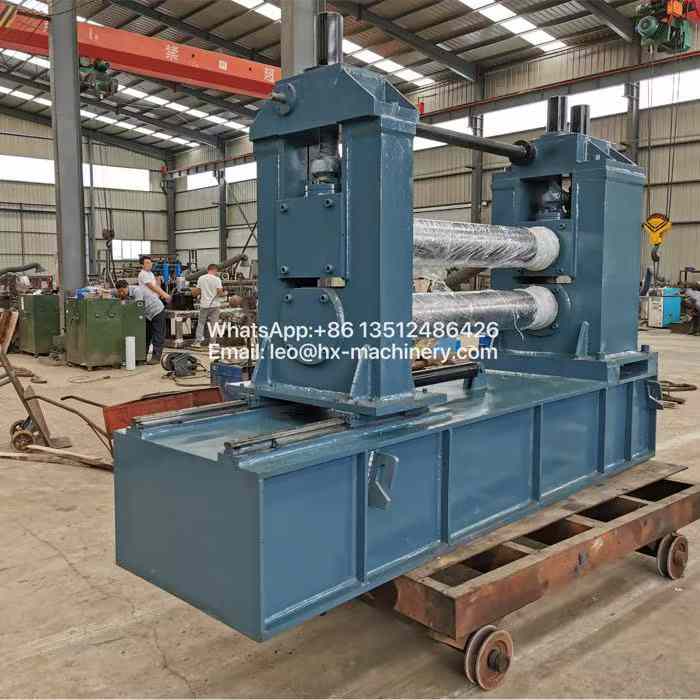

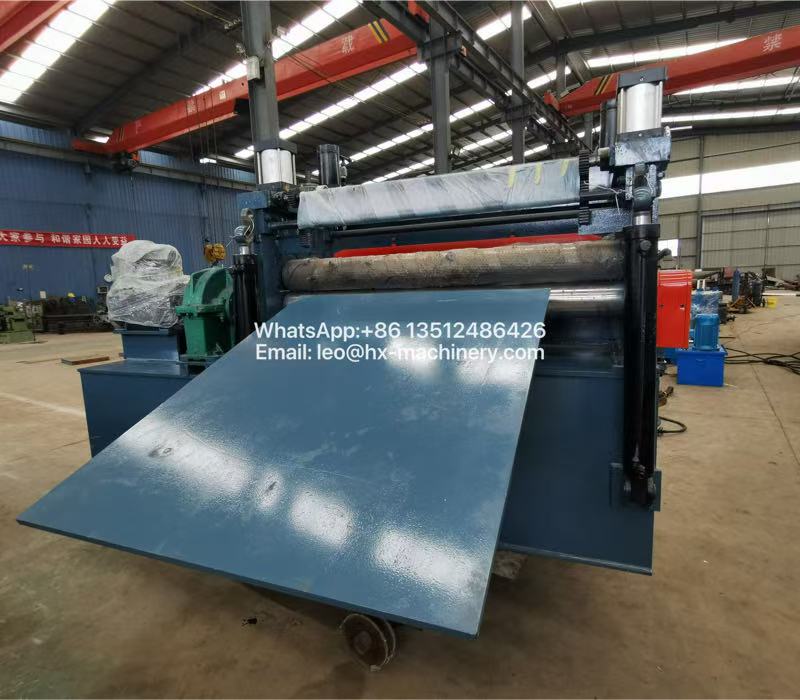

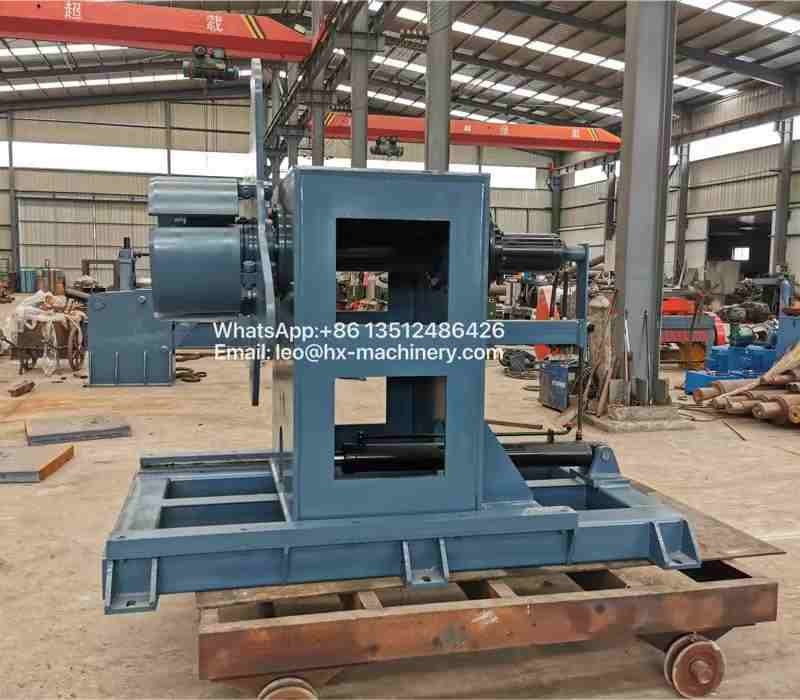

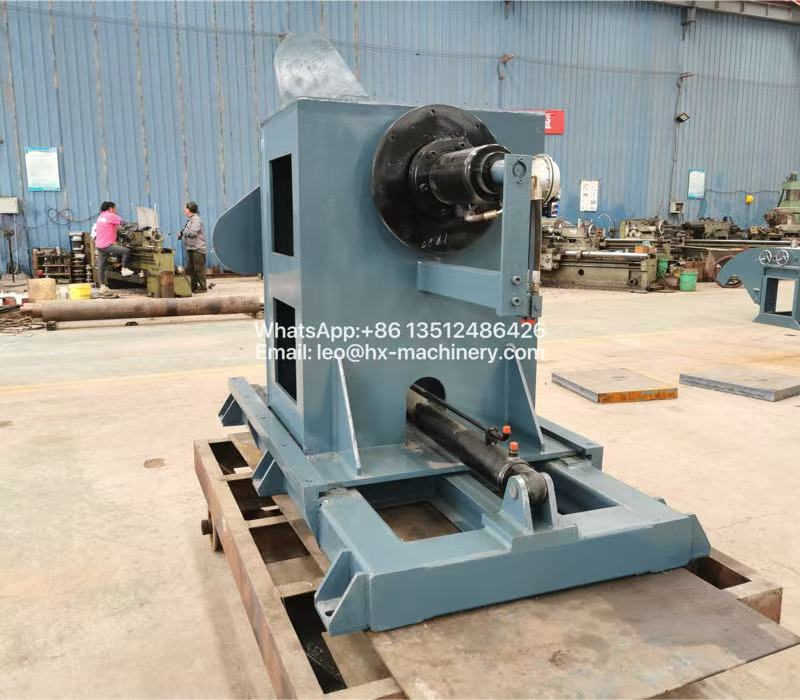

Our slitting line typically comprises a heavy-duty uncoiler with hydraulic expansion, a precision pinch-roll leveler for strip flattening, a rugged slitter head with quick-change arbors, and a tension-controlled recoiler with optional overarm separators.
What truly elevates this slitting line is its centralized control architecture, which synchronizes line speed, tension, and knife positioning through a single operator interface. Real-time sensors monitor strip tracking and coil diameter, automatically adjusting parameters to prevent slippage or overlapping. We support every installation with full commissioning, on-site training, and a global spare parts network, giving you a turnkey solution that keeps your production running smoothly for years to come.
Machine parameters
| No. |
Slitting line |
|
| 1 |
Expansion range |
470‑530mm、570‑630 mm |
| 2 |
Brake
|
Pneumatic |
| 3 |
Motor |
5.5KW AC motor |
| 4 |
Pinch‑feed roller spec |
Φ250MM |
| 5 |
Plate thickness |
0.5‑3MM |
| 6 |
Motor model |
Y‑series |
| 7 |
Motor power |
15KW，4‑pole |
| 8 |
Reducer |
BWD4 |
| 9 | Effective pinch width |
1750mm |
| 10 |
Reducer model |
ZLY224 |
| 11 |
Slitter shaft diameter |
Φ200mm |
| 12 |
Blade material & hardness |
HRC55‑58 |
| 13 | Blade dimension |
Φ340×200×10 |
| 14 |
Load capacity |
10000KG
|
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
Clients Showing
