Model: HX-stud and track roll forming
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com
In the world of light-gauge steel framing, the stud and track work as a pair—one provides the vertical structure, the other anchors and aligns it. Having a single machine that produces both profiles isn't just about saving space; it's about ensuring that the two components fit together seamlessly. That's the idea behind our stud and track roll forming machine.

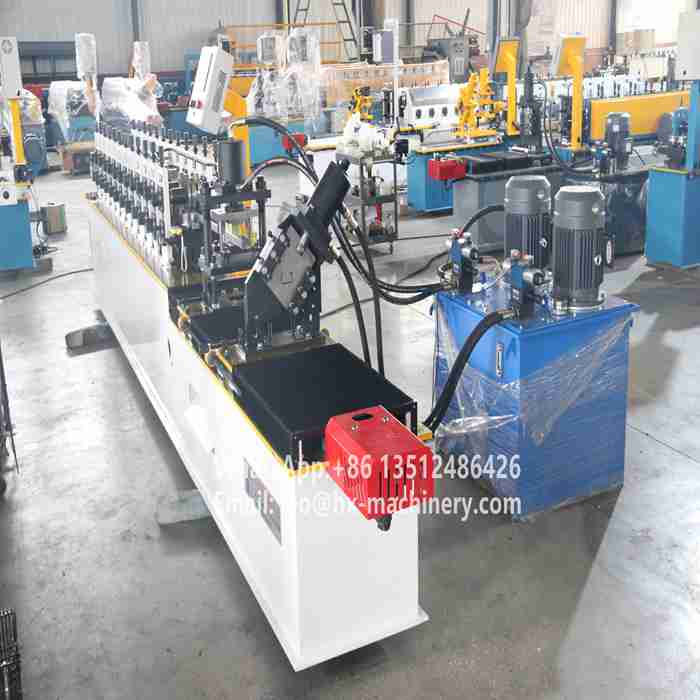

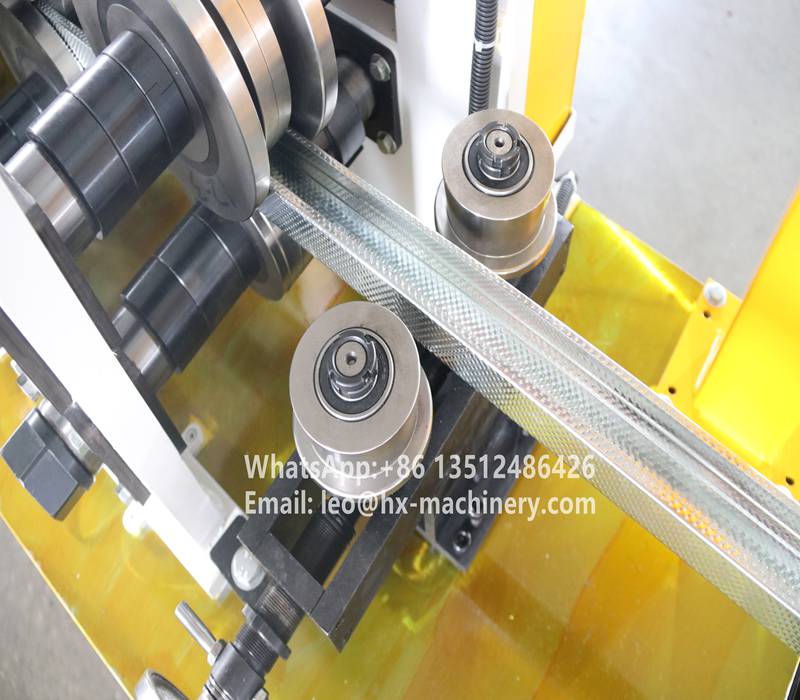

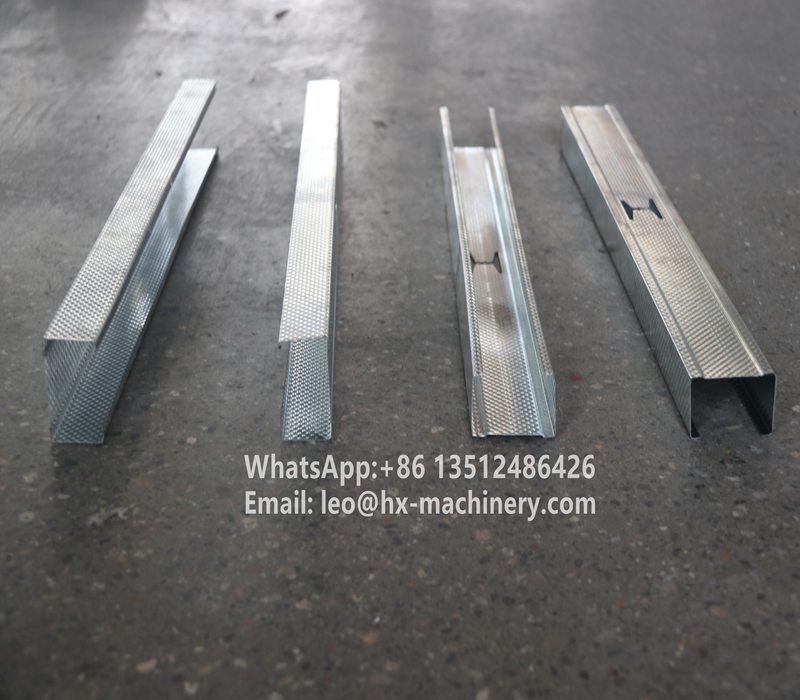

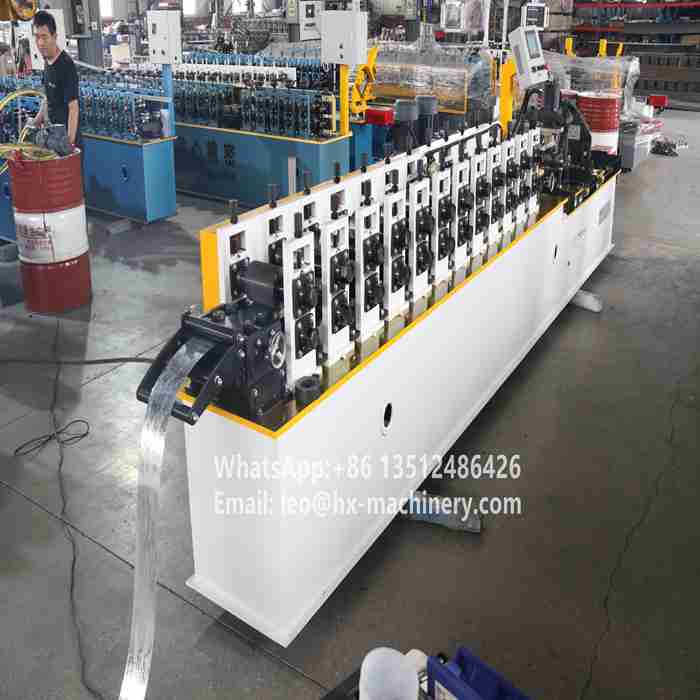

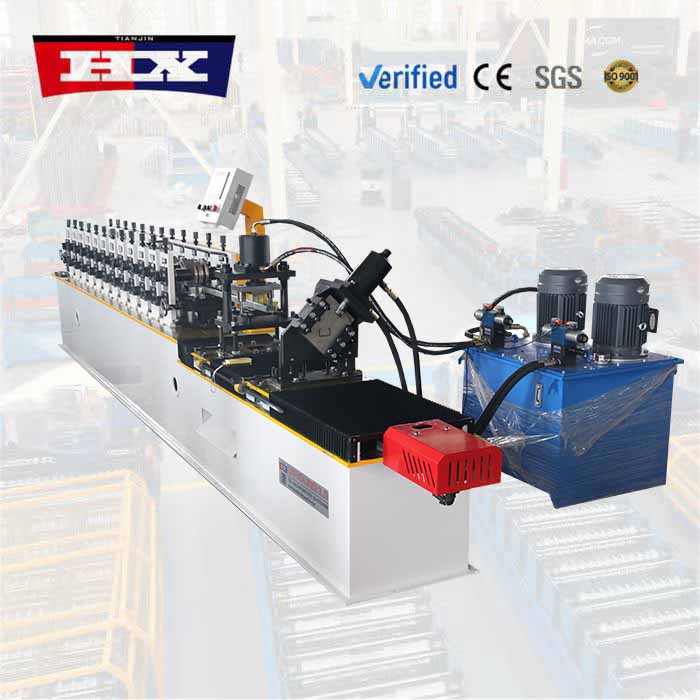

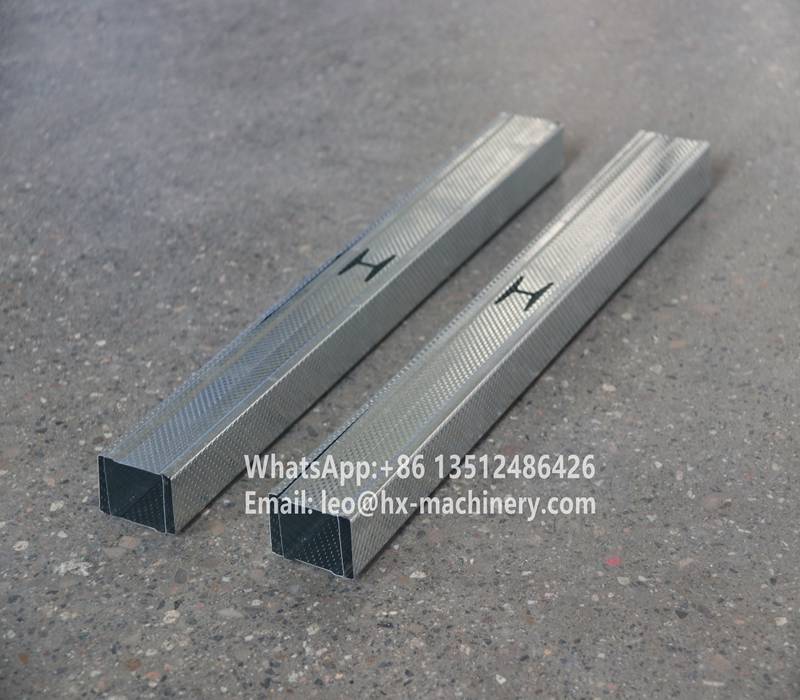

Our stud and track roll forming machine is designed with dedicated forming sections for each profile, allowing quick transitions between stud and track production. The stud side delivers accurate web and flange dimensions with consistent hole spacing, while the track side forms clean channels with straight legs and square edges. Both profiles are cut with synchronized precision, minimizing material waste and ensuring ready-to-use components.
What makes our stud and track roll forming machine a practical choice for framing shops is its simplicity and reliability. The controls are clear, the settings are repeatable, and the machine's construction reduces the need for frequent adjustments. Operators find it easy to manage, and maintenance is straightforward enough to handle during regular shifts. When questions come up, our support team provides fast, practical help—whether it's setup guidance, troubleshooting, or parts availability. With our stud and track roll forming machine, you get a complete framing solution that keeps your production consistent and your workflow efficient, without unnecessary complexity.
Machine parameters
| No. |
Stud and track roll forming machine |
|
| 1 |
Cutting blade |
Cr12MoV, heat‑treated to HRC 58‑60 |
| 2 |
Punching & cutting
|
Hydraulic cutting |
| 3 |
Shaft diameter |
50 mm solid shaft with anti‑back‑up washer, high‑quality 45# forged steel |
| 4 |
Running speed |
0‑50 m/min without punching |
| 5 |
Forming stations |
12 stations |
| 6 |
Roller shaft material |
45# steel |
| 7 |

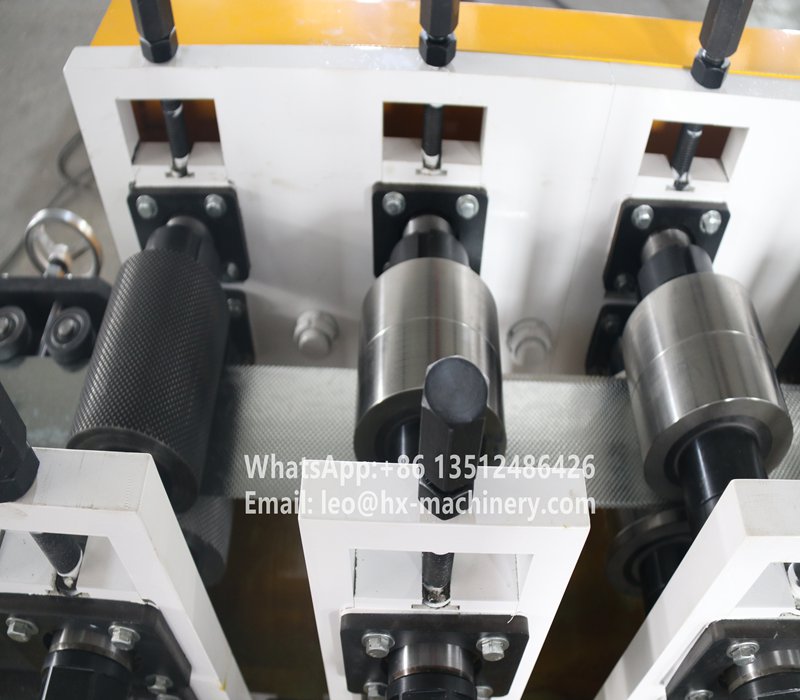

Forming roller |
Cr12, heat‑treated hardness HRC 58‑60 |
| 8 |
Transmission type |
Gear drive |
| 9 |
Control cabinet |
Domestic components |
| 10 |
Voltage |
380 V, 50 Hz, 3‑phase power supply |
| 11 |
Length tolerance |
±2 mm |
| 12 |
Cutting tolerance |
±1.0 mm |
| 13 |
PLC display languages |
Chinese, English, Spanish |
| 14 |
Hydraulic oil pipe |
2 pcs of 3‑meter pipe |
| 15 |
Precision counting wheel |
2 pcs |
| 16 |
Solenoid valve |
2 pcs(at least 6 extra solenoid valve plug connectors) |
| 17 |
Fuse |
2 pcs |
| 18 |
Bearing |
2 pcs |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
