Model: HX-stud and track forming
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com

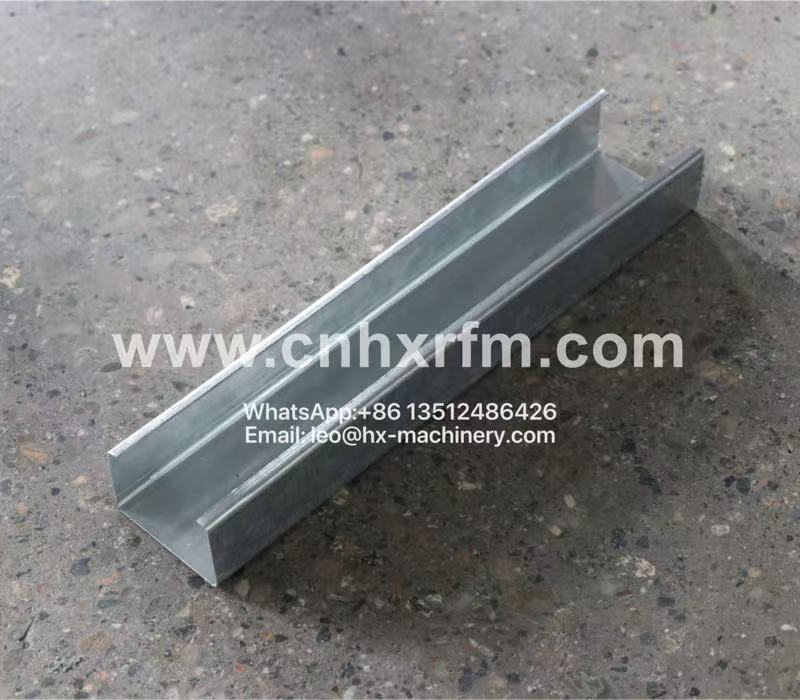

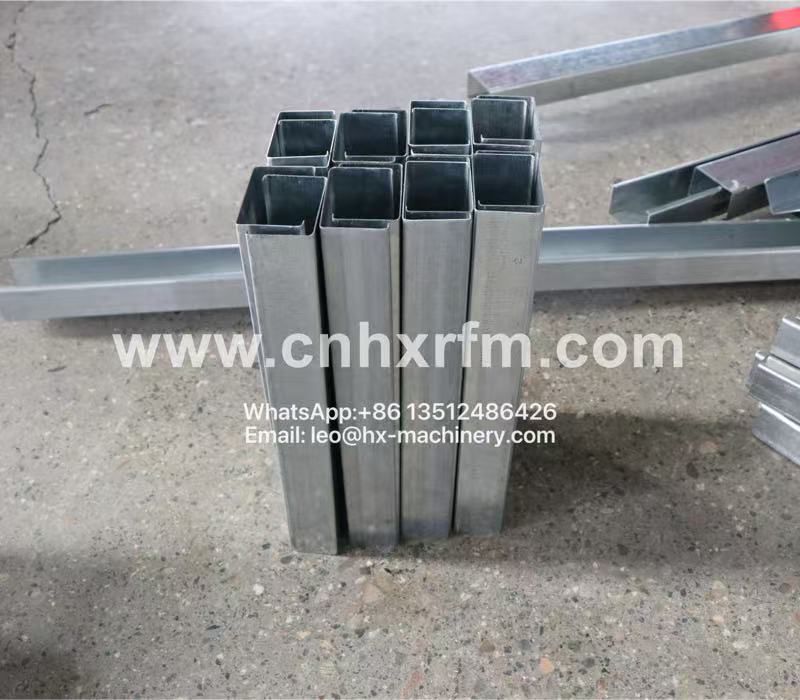

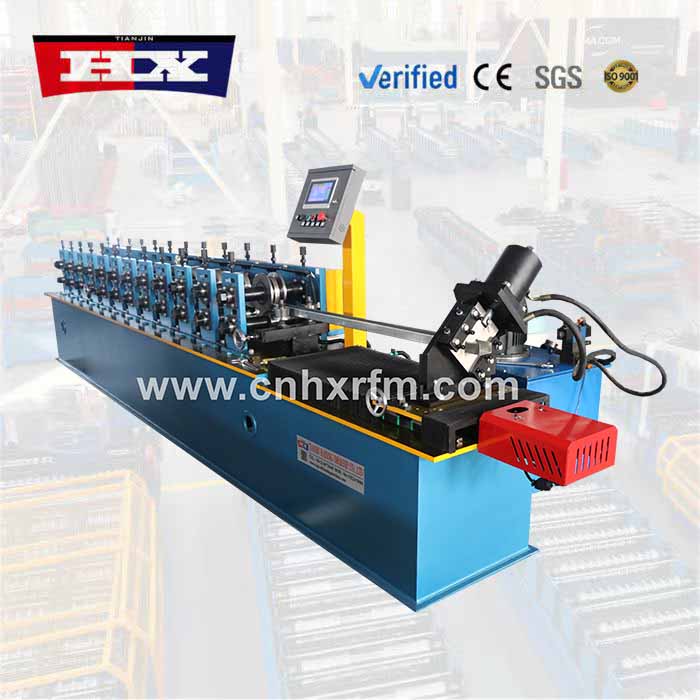

In steel framing, efficiency often comes down to how smoothly you can switch between studs and tracks without losing production time. That’s the logic behind our stud and track forming machine, a single system that handles both profiles while keeping changeovers fast and quality consistent.

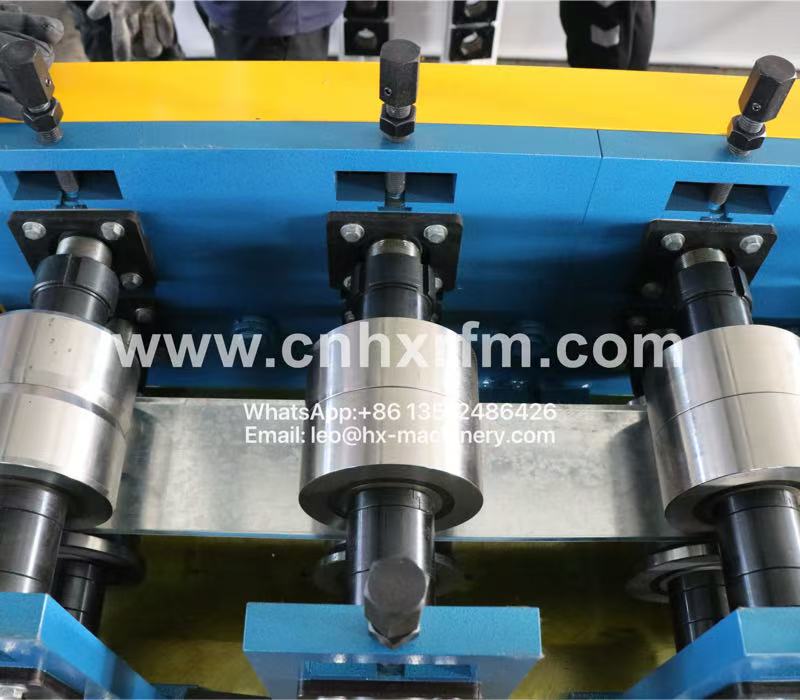

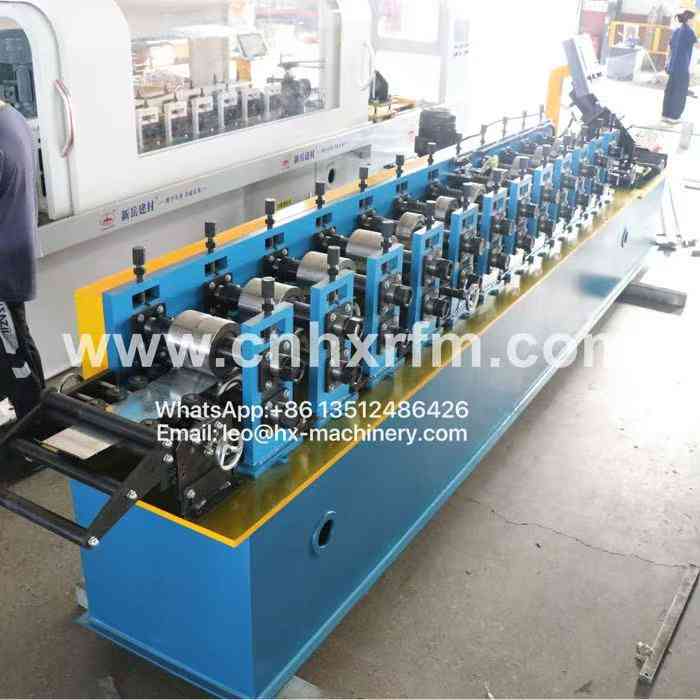

Our stud and track forming machine includes a shared roll forming line with separate tooling sets for studs and tracks, so the transition from one profile to the other doesn’t involve lengthy reconfiguration. The machine processes standard web heights and gauges, and the punching unit handles the hole patterns and notches specific to each profile type. The cutting system is timed to match the production flow, delivering straight, burr-free ends on every piece.
What makes our stud and track forming machine a practical choice for framing shops is the balance between flexibility and reliability. Operators find the settings easy to recall, the maintenance manageable, and the output steady across long shifts. Users also value the support that comes with the machine—clear documentation, responsive assistance, and available spare parts when needed. With our stud and track forming machine, you get a complete framing solution that reduces the need for multiple machines and keeps your production floor organized and productive.
Machine parameters
| No. |
Stud and track forming machine |
|
| 1 |
Cutting blade |
Cr12MoV, heat‑treated to HRC 58‑60 |
| 2 |
Punching & cutting
|
Hydraulic cutting |
| 3 |
Shaft diameter |
50 mm solid shaft with anti‑back‑up washer, high‑quality 45# forged steel |
| 4 |
Running speed |
0‑50 m/min without punching |
| 5 |

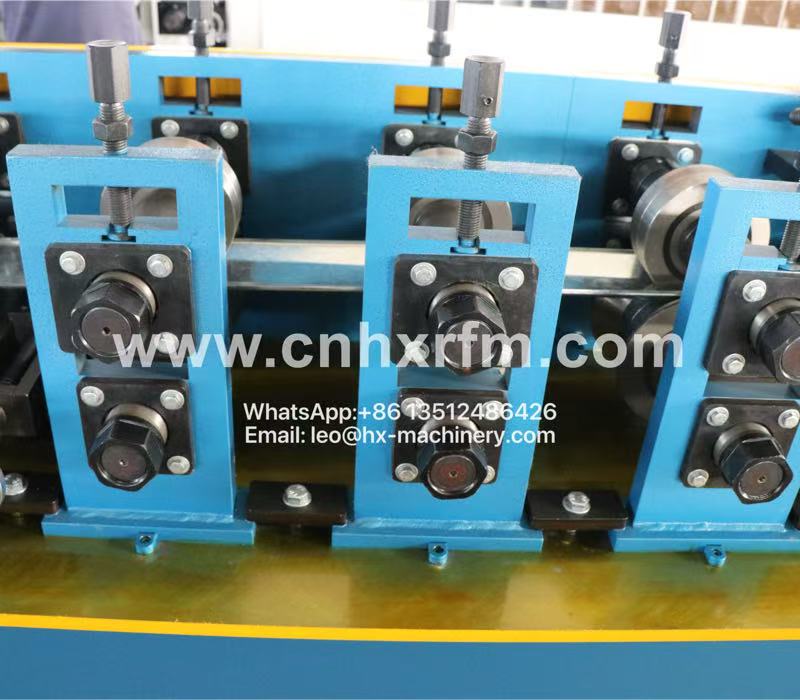

Forming stations |
12 stations |
| 6 |
Roller shaft material |
45# steel |
| 7 |
Forming roller |
Cr12, heat‑treated hardness HRC 58‑60 |
| 8 |
Transmission type |
Gear drive |
| 9 |
Control cabinet |
Domestic components |
| 10 |
Voltage |
380 V, 50 Hz, 3‑phase power supply |
| 11 |
Length tolerance |
±2 mm |
| 12 |
Cutting tolerance |
±1.0 mm |
| 13 |
PLC display languages |
Chinese, English, Spanish |
| 14 |
Hydraulic oil pipe |
2 pcs of 3‑meter pipe |
| 15 |
Precision counting wheel |
2 pcs |
| 16 |
Solenoid valve |
2 pcs(at least 6 extra solenoid valve plug connectors) |
| 17 |
Fuse |
2 pcs |
| 18 |
Bearing |
2 pcs |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.

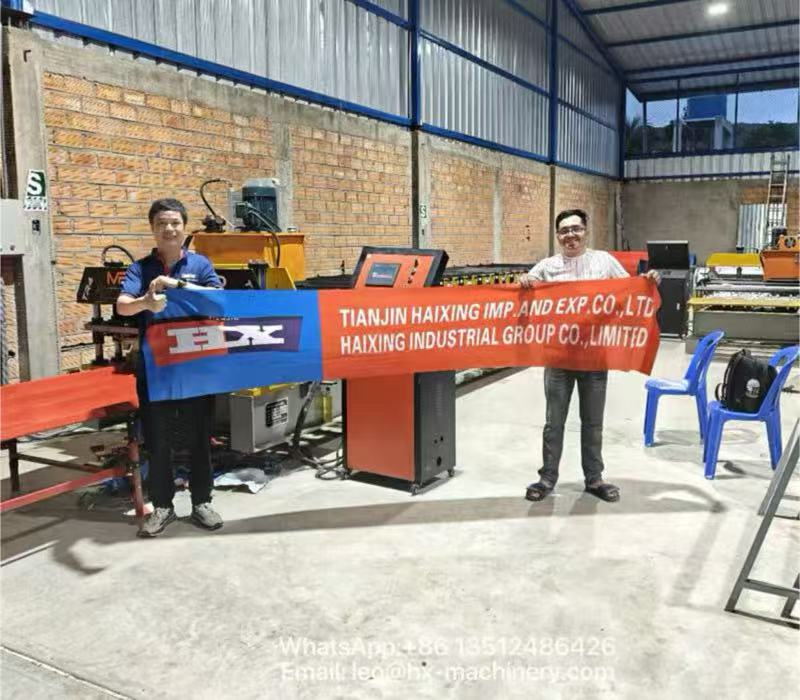

Clients Showing
