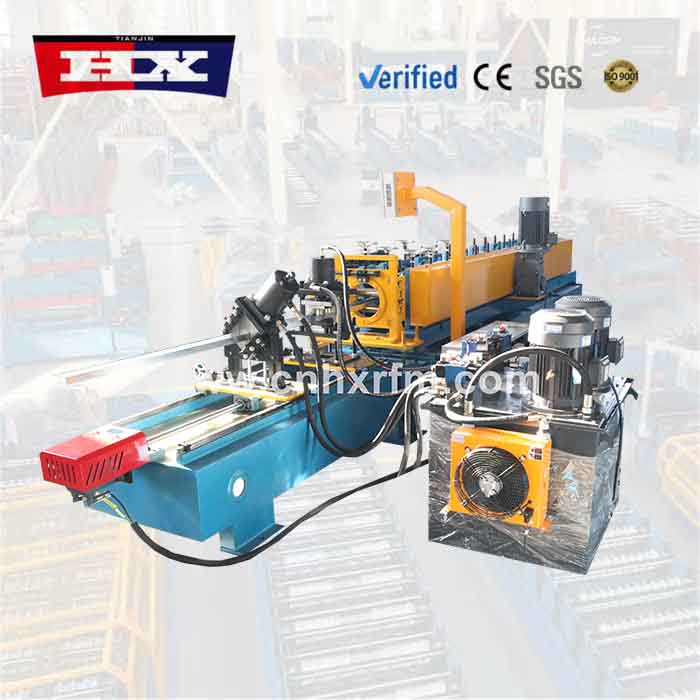

Model: HX-stud and track machine
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com

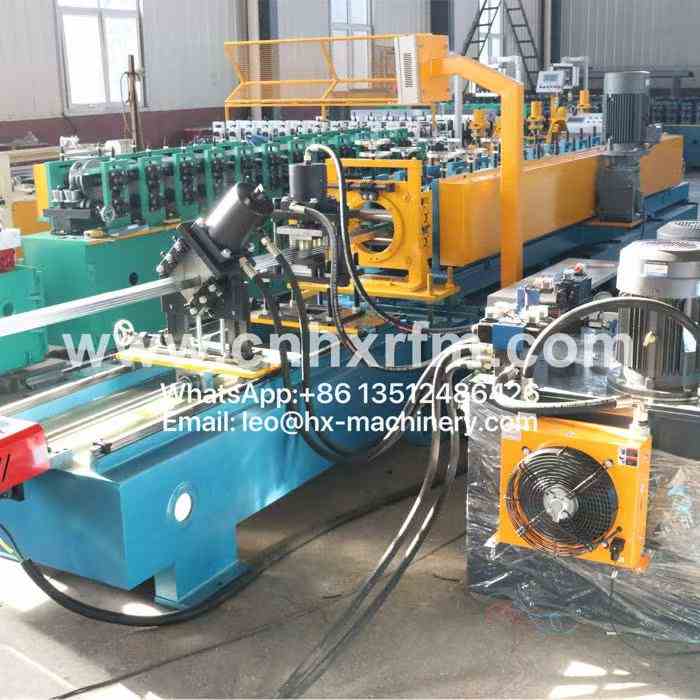

In light-gauge steel framing, studs and tracks go together like two sides of the same coin—and having a single machine that produces both profiles efficiently can transform your production floor. That's exactly what our stud and track machine offers: a practical, space-saving solution for shops that want to streamline their framing output without investing in separate lines.

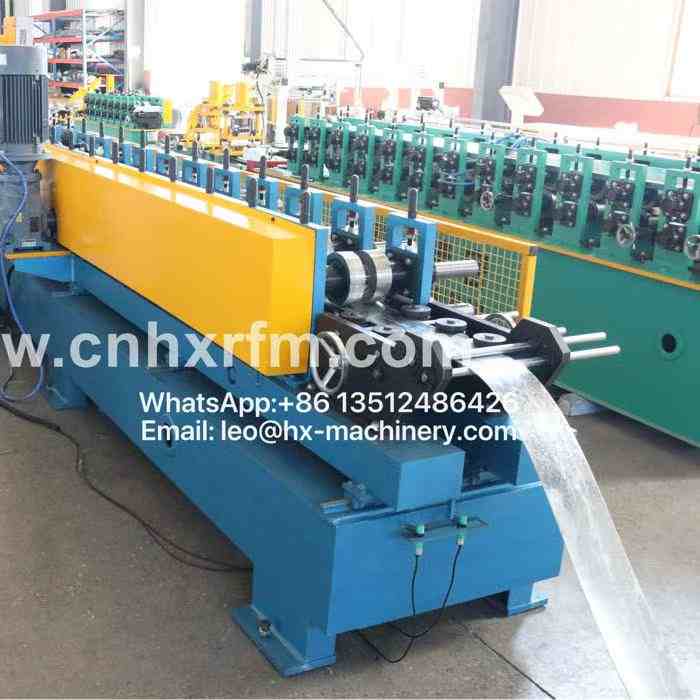

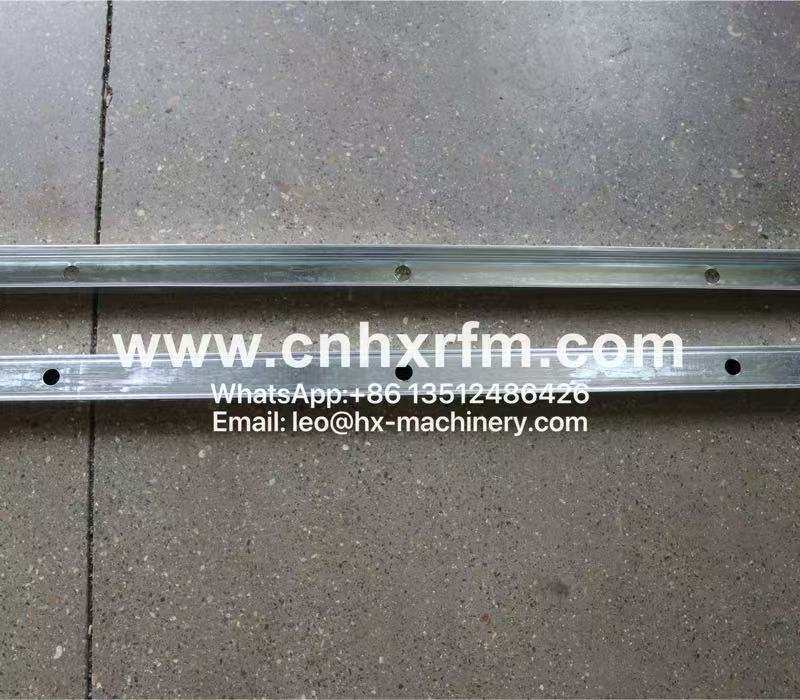

This stud and track machine is configured to run both stud and track profiles with minimal changeover time, so you can switch between the two as your orders require. The roll forming stations are carefully arranged to maintain consistent dimensions across both profiles, while the punching and cutting systems are timed to handle the specific hole patterns and cut lengths each profile demands. It processes a range of material thicknesses and web heights, giving you the flexibility to take on varied framing projects without retooling delays.
What makes our stud and track machine particularly valuable to shop managers is its ability to keep production moving without complication. The controls are straightforward, the settings are repeatable, and the maintenance points are easy to reach. Users consistently find that this machine integrates smoothly into their workflow, supporting both standard orders and custom requests. And with our support team available for setup guidance, troubleshooting, and parts supply, your stud and track machine stays productive and reliable—from the first run to the thousandth.
Machine parameters
| No. |
Stud and track machine |
|
| 1 |
Cutting blade |
Cr12MoV, heat‑treated to HRC 58‑60 |
| 2 |

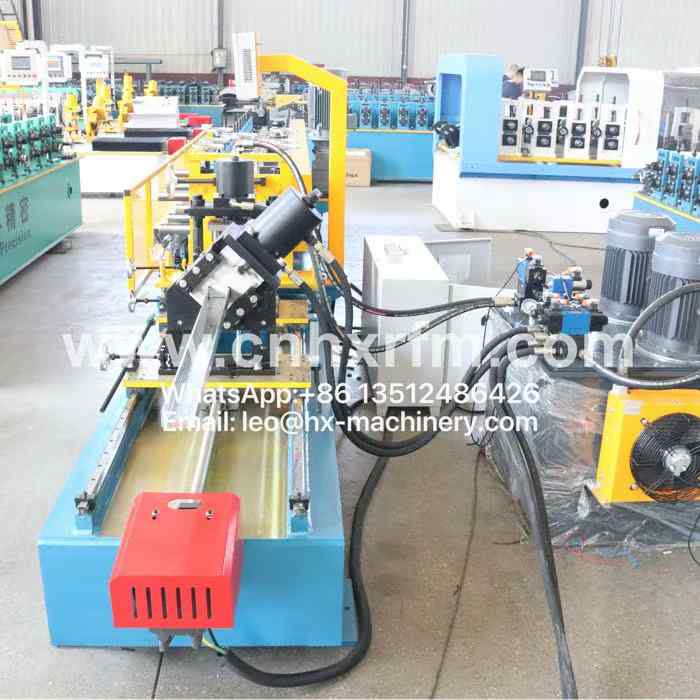

Punching & cutting
|
Hydraulic cutting |
| 3 |
Shaft diameter |
50 mm solid shaft with anti‑back‑up washer, high‑quality 45# forged steel |
| 4 |
Running speed |
0‑50 m/min without punching |
| 5 |

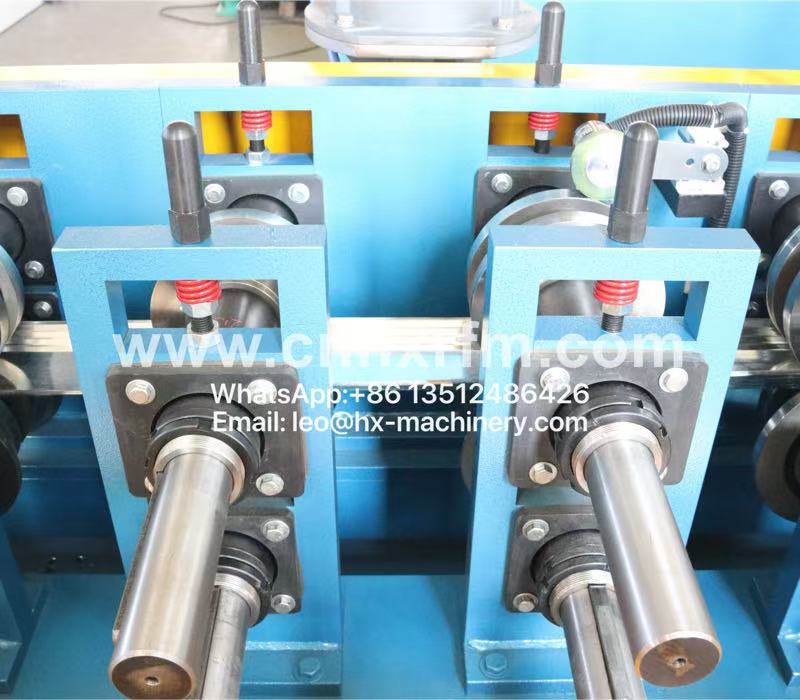

Forming stations |
12 stations |
| 6 |
Roller shaft material |
45# steel |
| 7 |

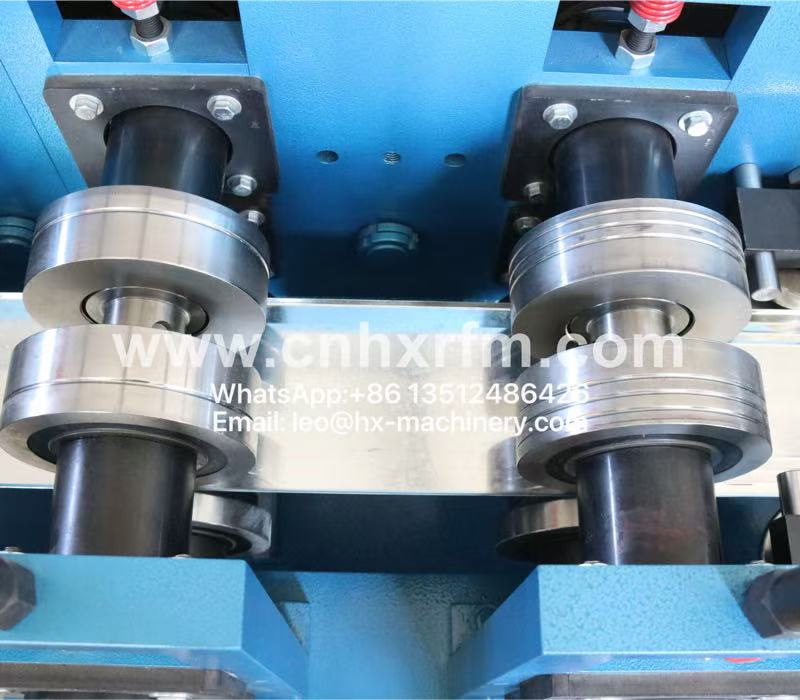

Forming roller |
Cr12, heat‑treated hardness HRC 58‑60 |
| 8 |
Transmission type |
Gear drive |
| 9 |
Control cabinet |
Domestic components |
| 10 |
Voltage |
380 V, 50 Hz, 3‑phase power supply |
| 11 |
Length tolerance |
±2 mm |
| 12 |
Cutting tolerance |
±1.0 mm |
| 13 |
PLC display languages |
Chinese, English, Spanish |
| 14 |
Hydraulic oil pipe |
2 pcs of 3‑meter pipe |
| 15 |
Precision counting wheel |
2 pcs |
| 16 |
Solenoid valve |
2 pcs(at least 6 extra solenoid valve plug connectors) |
| 17 |
Fuse |
2 pcs |
| 18 |
Bearing |
2 pcs |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
