Model: HX-metal stud and track
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com

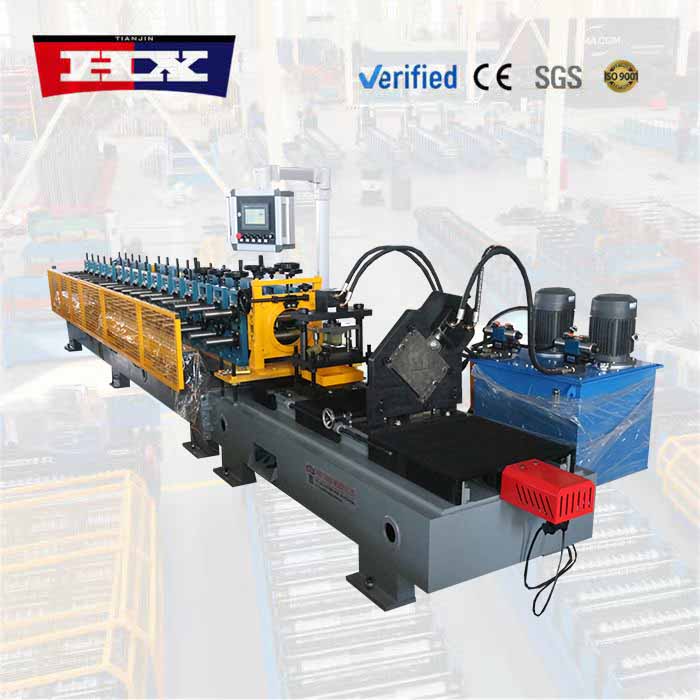

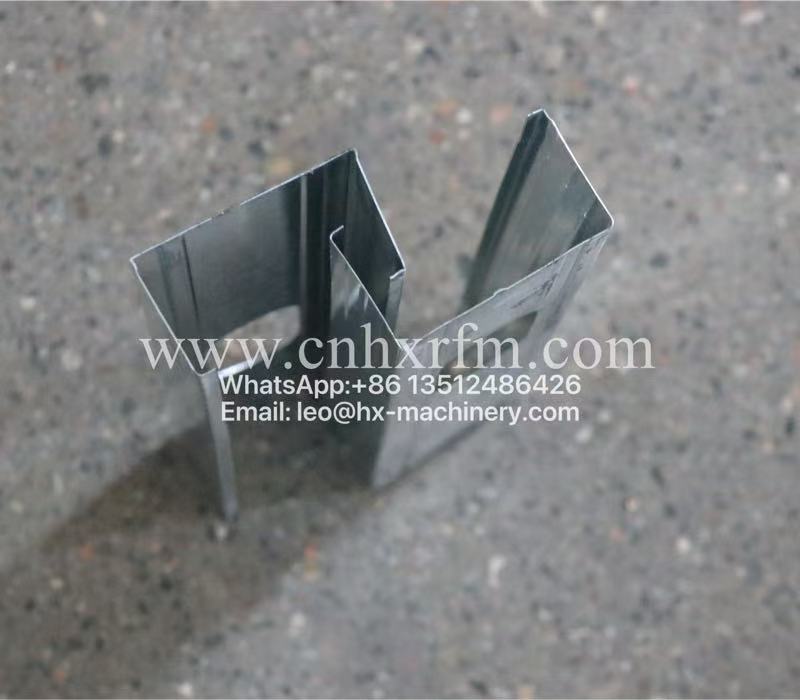

In light-gauge steel framing, the relationship between studs and tracks is inseparable—one supports, the other aligns, and together they form the backbone of modern construction. Having a single machine that produces both profiles isn't just about convenience; it's about consistency, because when studs and tracks come from the same line, they fit together better. That's the logic behind our metal stud and track roll forming machine.

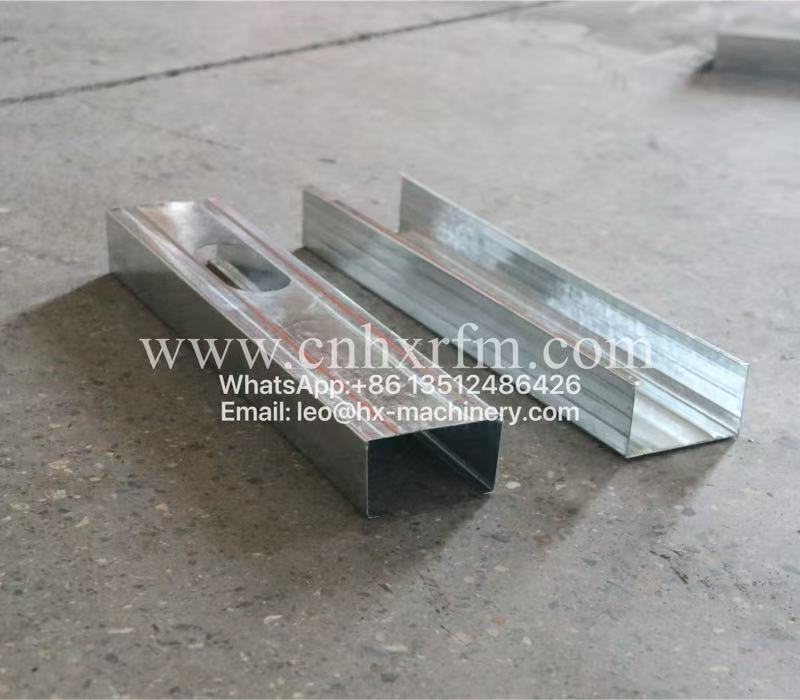

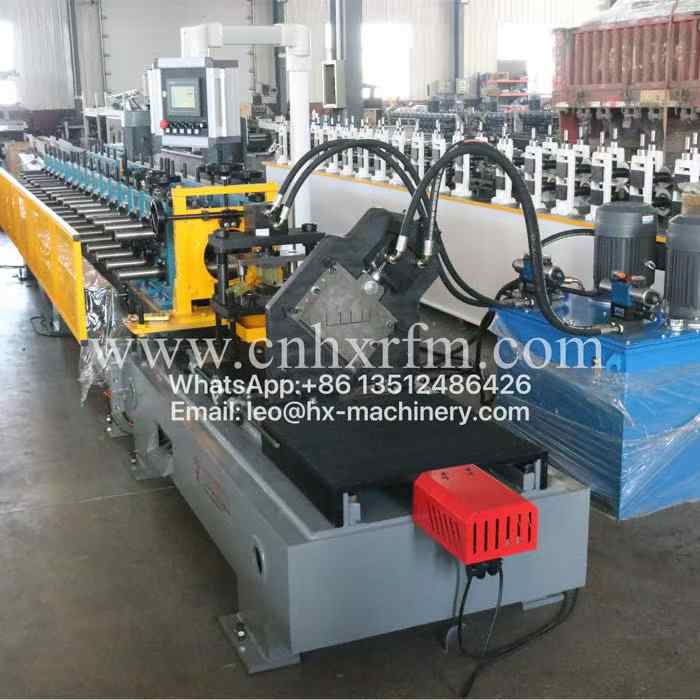

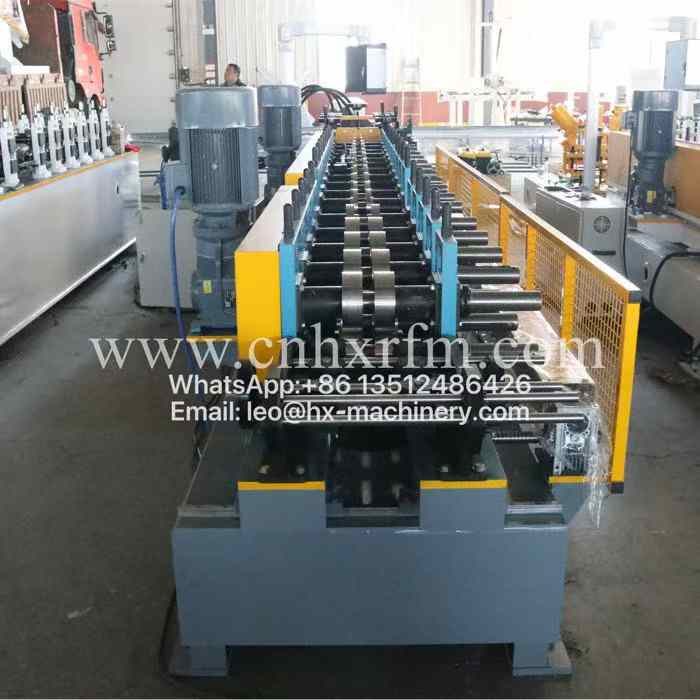

Our metal stud and track roll forming machine includes dedicated forming stations for each profile, with changeover mechanisms that keep downtime to a minimum. The stud section delivers accurate web and flange dimensions with properly spaced holes, while the track section forms clean channels with consistent leg heights. Both profiles maintain tight tolerances because the same machine setup ensures uniform material handling and roll alignment. The integrated cutting system produces square, burr-free ends across both product types.
What makes this metal stud and track roll forming machine a practical investment is its ability to streamline production. Operators can switch between studs and tracks without extensive retooling, reducing idle time and simplifying scheduling. The machine holds its settings reliably, maintenance is straightforward, and the controls are designed for everyday use. Backed by our responsive support team, this metal stud and track roll forming machine helps framing shops maintain consistent output, reduce equipment duplication, and keep projects on track. It’s a solution that matches the way framing actually works—connected, efficient, and dependable.
Machine parameters
| No. |
Metal stud and track roll forming machine |
|
| 1 |
Cutting blade |
Cr12MoV, heat‑treated to HRC 58‑60 |
| 2 |
Punching & cutting
|

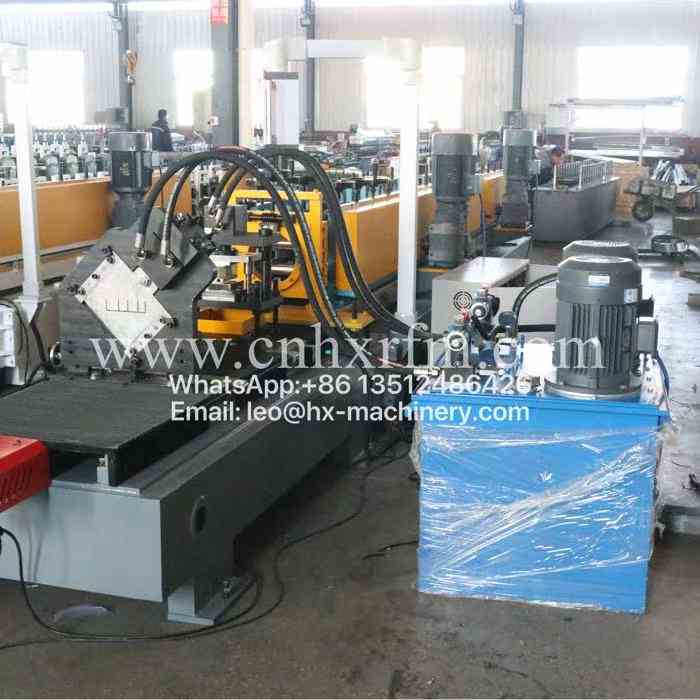

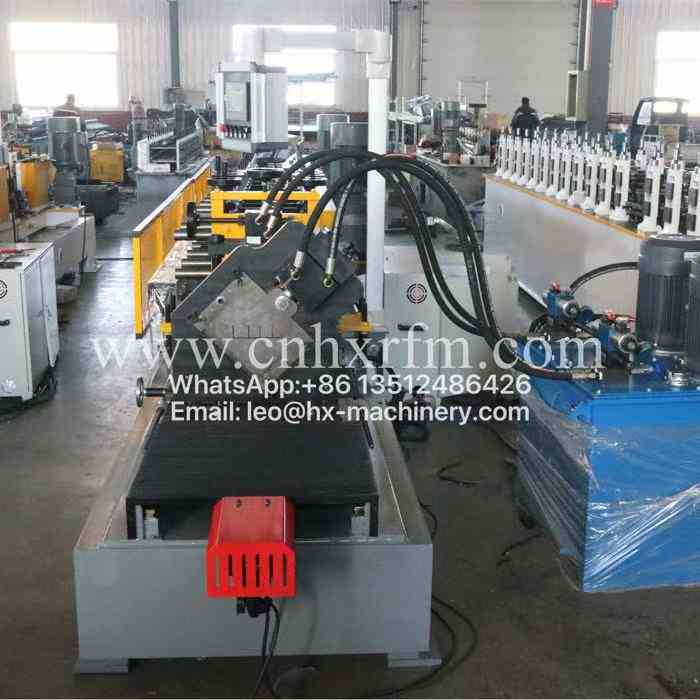

Hydraulic cutting |
| 3 |
Shaft diameter |
50 mm solid shaft with anti‑back‑up washer, high‑quality 45# forged steel |
| 4 |
Running speed |
0‑50 m/min without punching |
| 5 |

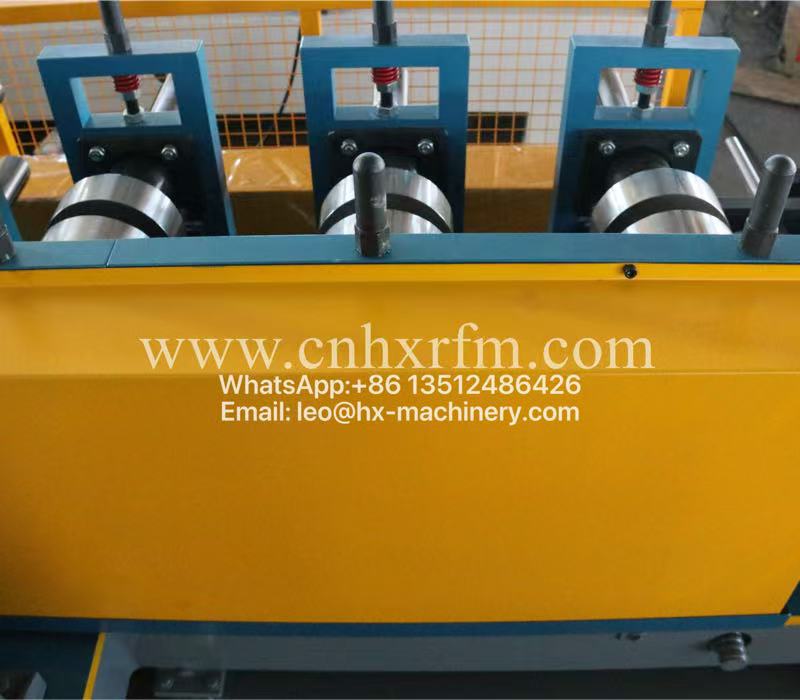

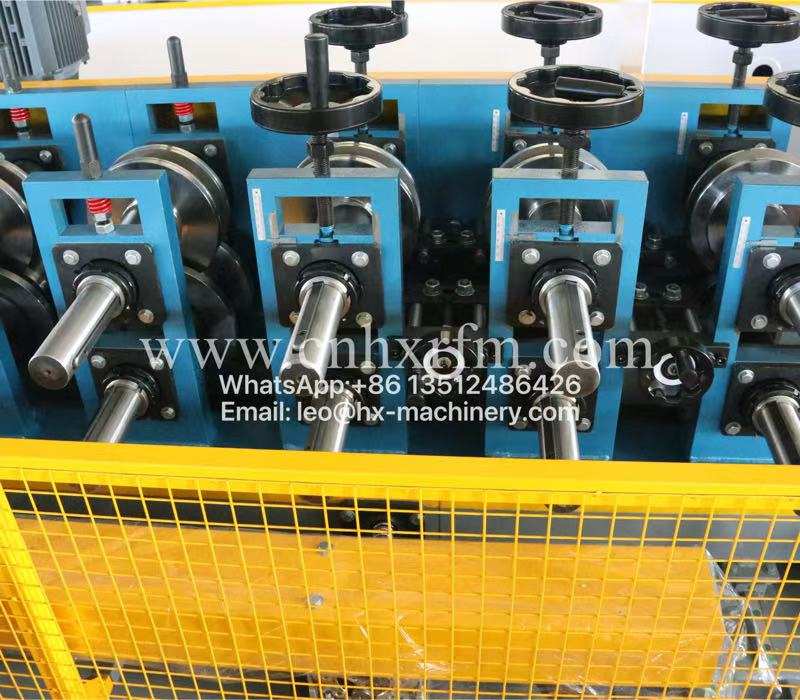

Forming stations |
12 stations |
| 6 |
Roller shaft material |
45# steel |
| 7 |

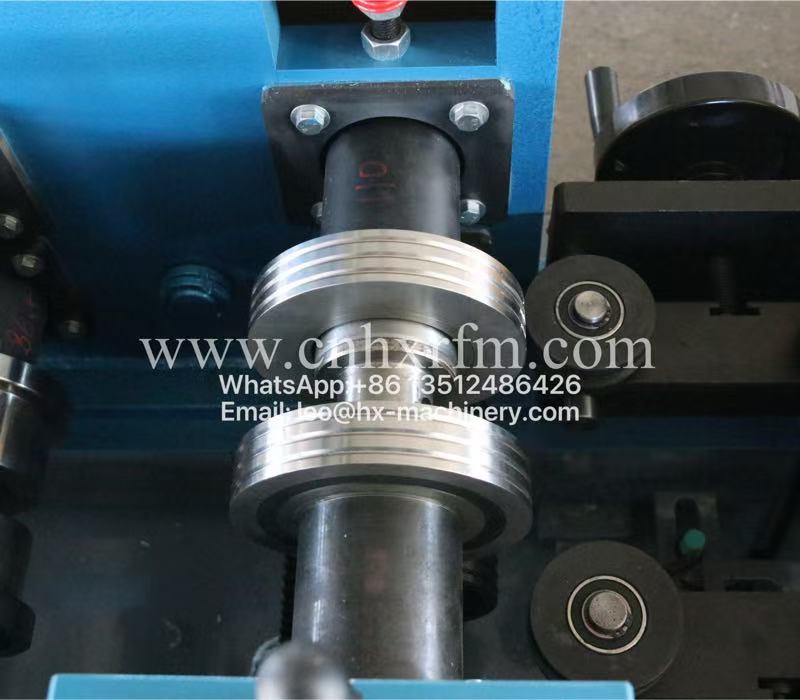

Forming roller |
Cr12, heat‑treated hardness HRC 58‑60 |
| 8 |
Transmission type |
Gear drive |
| 9 |
Control cabinet |
Domestic components |
| 10 |
Voltage |
380 V, 50 Hz, 3‑phase power supply |
| 11 |
Length tolerance |
±2 mm |
| 12 |
Cutting tolerance |
±1.0 mm |
| 13 |
PLC display languages |
Chinese, English, Spanish |
| 14 |
Hydraulic oil pipe |
2 pcs of 3‑meter pipe |
| 15 |
Precision counting wheel |
2 pcs |
| 16 |
Solenoid valve |
2 pcs(at least 6 extra solenoid valve plug connectors) |
| 17 |
Fuse |
2 pcs |
| 18 |
Bearing |
2 pcs |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
