Model: HX-IBR
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: lily@hx-machinery.com
We are Haixing Industrial Group Co., Ltd. , a company with over 20 years of expertise in roof sheet roll forming equipment.

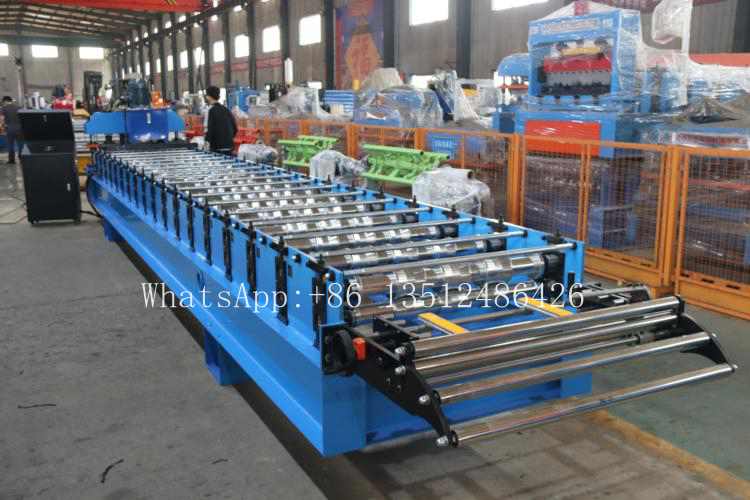

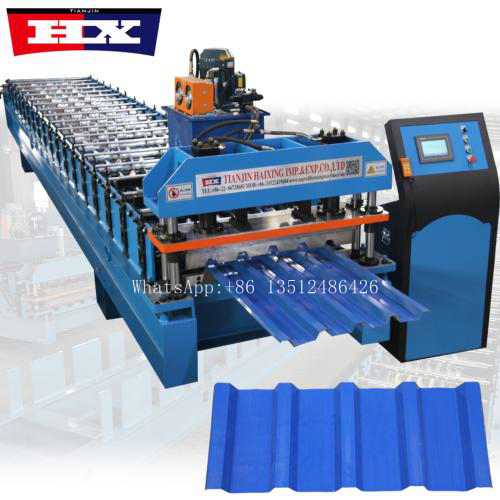

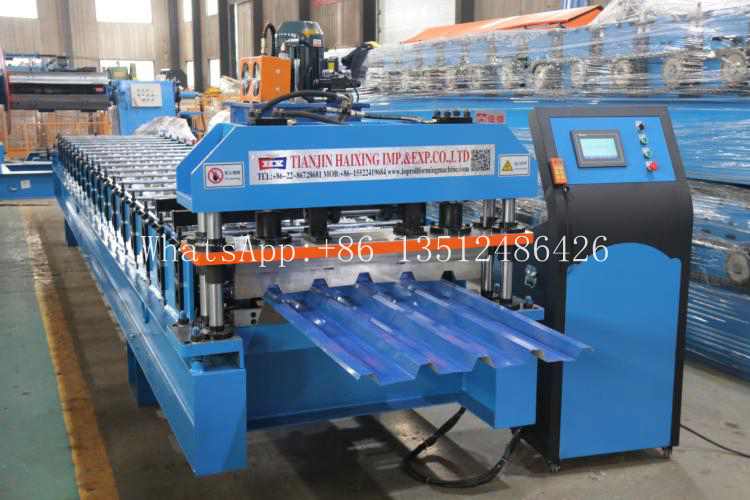

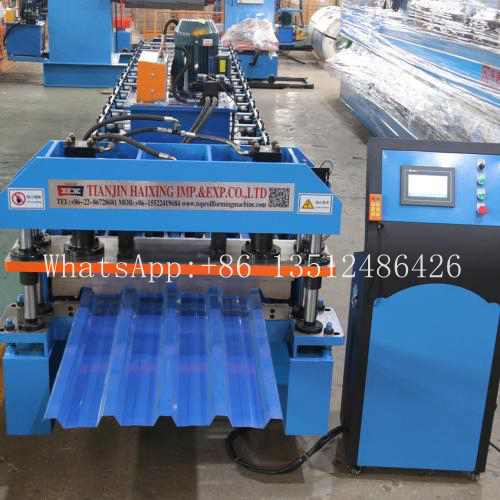

This equipment is an IBR roof sheet making machine, capable of manufacturing IBR roof sheet with precision. We support custom-made machines to fit your local requirements.
Many customers in South Africa, Zimbabwe, Burkina Faso, and Cameroon have shown strong interest and positive feedback about this model.
Below are the informations of IBR roof sheet making machine, as well as the profile dimensions of IBR roof sheet.

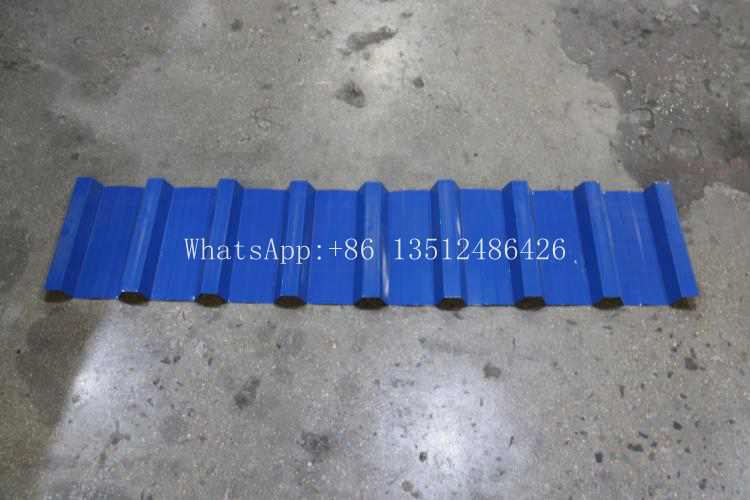

IBR roof sheet
IBR roof sheets drawing
Machine parameters
| No. |
IBR roof sheet making machine |
|
| 1 |
Suitable to process |
GI, GL, PPGI, PPGL |
| 2 |
Dimensions |
8.7*1.6*1.7m |
| 3 |
Weight |
About 5T |
| 4 |
Main structure of the machine |
350mm H-Beam |
| 5 |
Side panel of machine |
16 mm |
| 6 |
Thickness of the raw material |
0.3-0.8mm |
| 7 |
Width of the raw material |
Max Material Width:1220 mm |
| 8 |
Drive mode |
Chain Wheel and Cycle Chain; Thickness:1 Inch
|
| 9 |
Productivity speed |
10-15m/min |
| 10 |

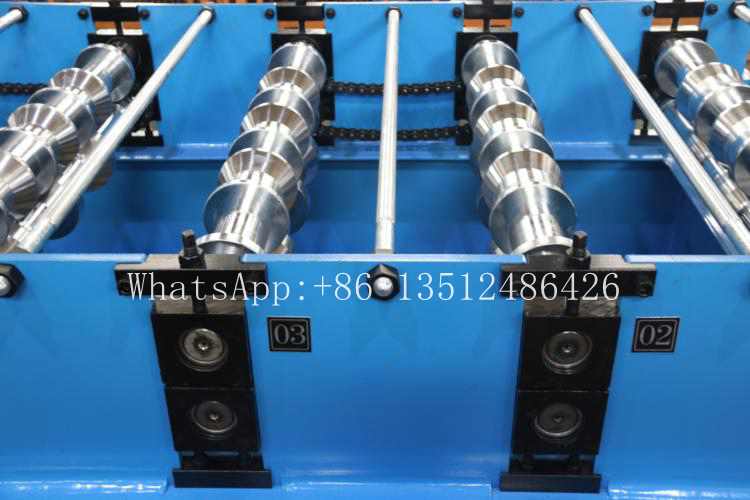

Rollers stations |
18 rows |
| 11 |
Rolling materials |
45# forging steel with chromium plate |
| 12 |
Diameter of the shaft |
Φ70mm (Solid shaft) |
| 13 |

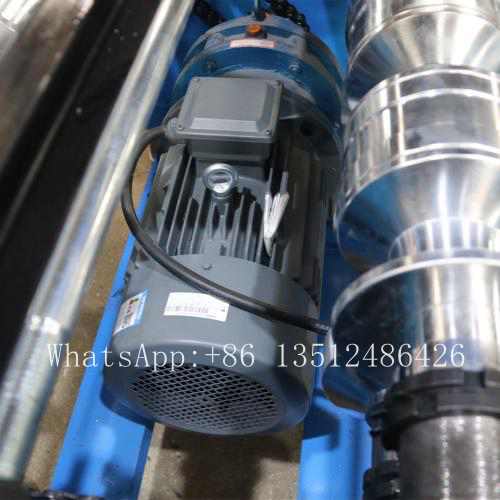

Motor Power |
5.5 KW |
| 14 |
Pump Station Motor |
4 KW |
| 15 |
Material of the cutting blade |
Cr12,Quenched treatment 58℃-60℃ |
| 16 |
Control system |
PLC control |
| 17 |
Touch screen |
The touch screen 360 degrees |
| 18 |
Voltage |
380V three-phase power |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
