Model: HX-ibr rolling machine
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com

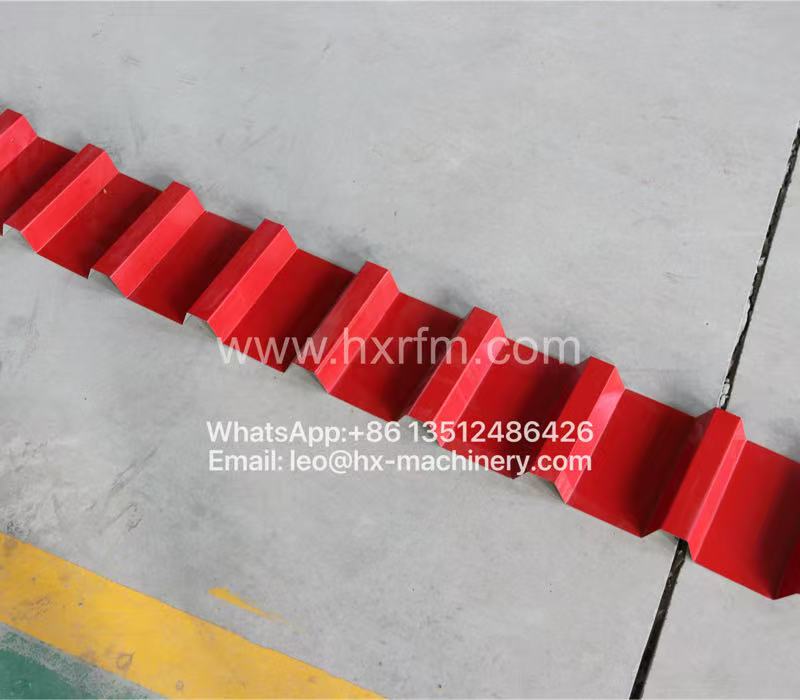

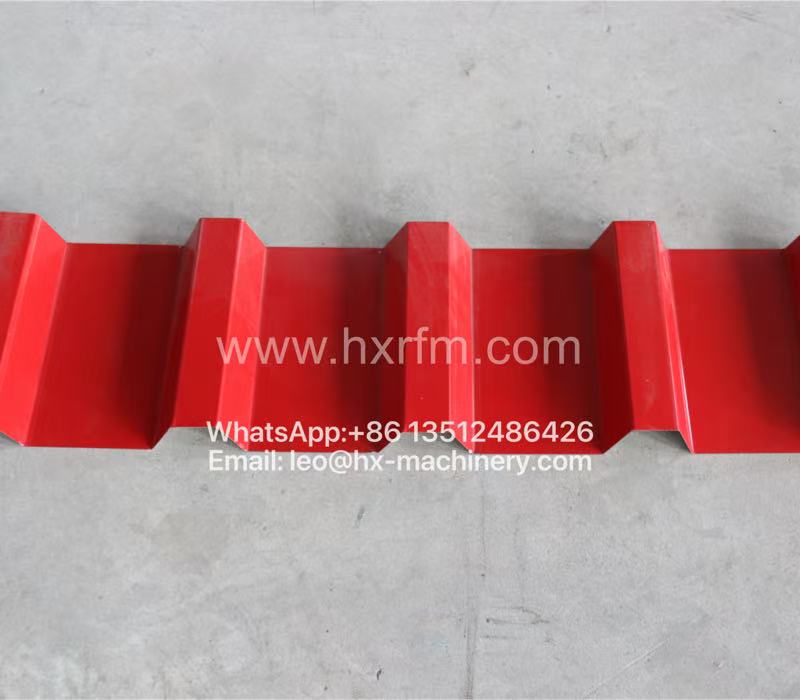

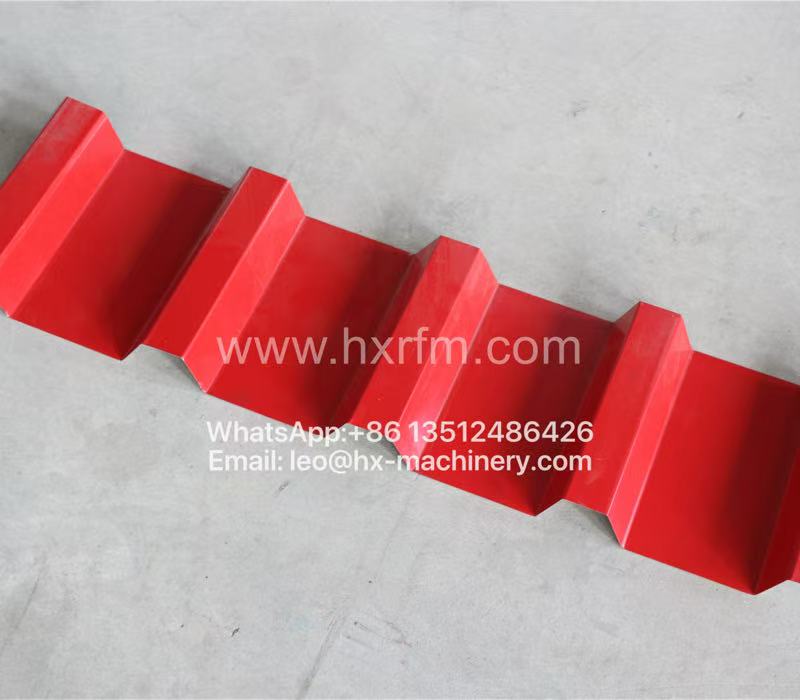

With over 20 years of hands-on expertise in metal forming solutions, Haixing Industrial Group Co., Ltd. offers a dependable ibr rolling machine that consistently produces high-strength IBR roofing sheets with excellent dimensional stability and surface finish—engineered for the demands of modern construction.

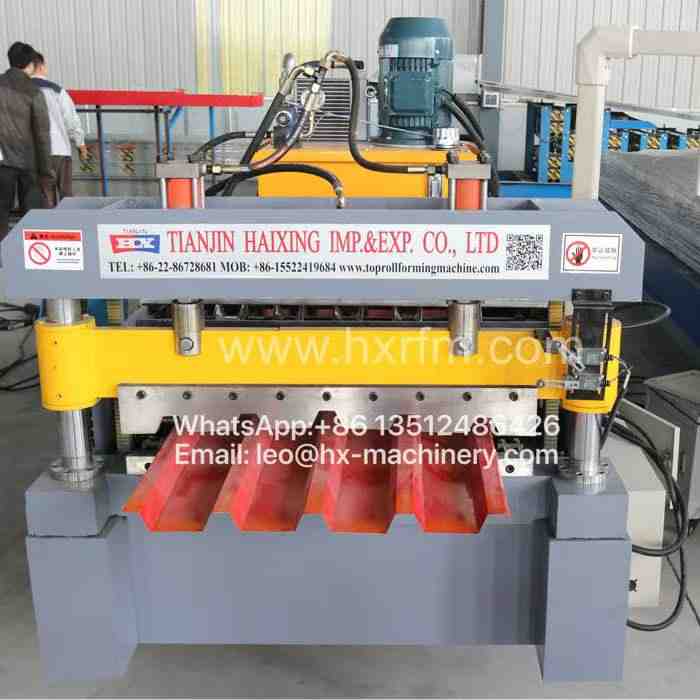

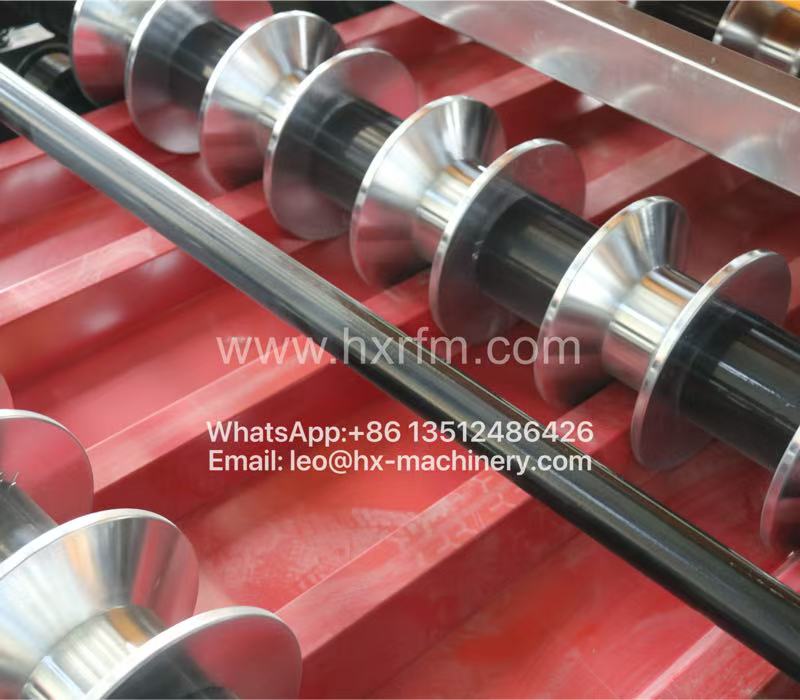

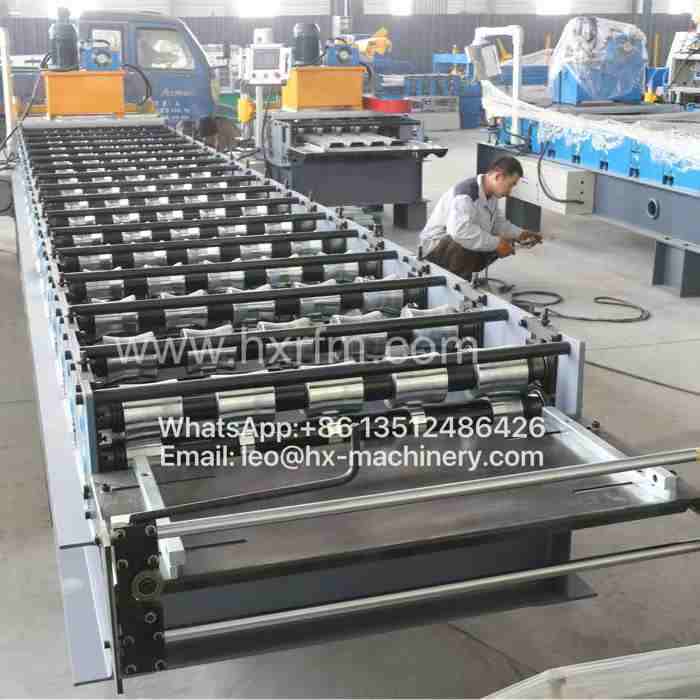

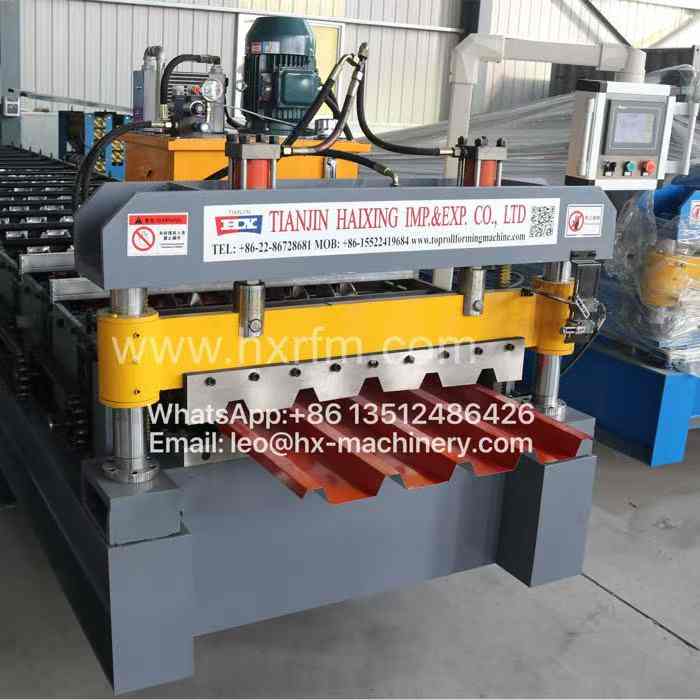

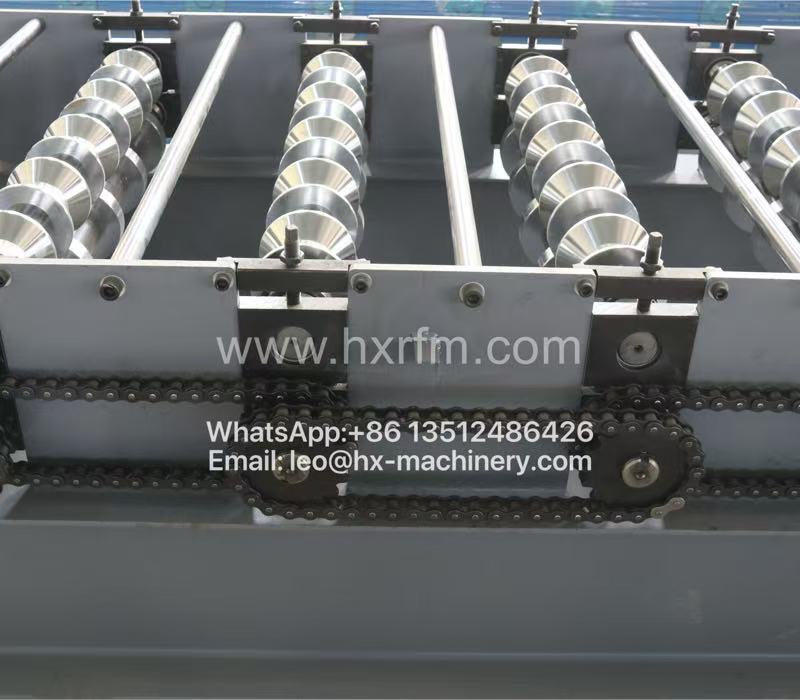

Our ibr rolling machine features a progressive forming system with 16 to 18 roller stations, each precision-ground and hardened to ensure uniform rib geometry and scratch-free surfaces. The machine is also equipped with a programmable hole-punching unit that supports various fastener patterns, making it suitable for both standard roofing and custom cladding applications.
What makes this ibr rolling machine particularly popular in export destinations such as Kenya, Colombia, Indonesia, and Oman is its ability to run continuously at speeds of 12–15 meters per minute with minimal operator intervention. The intuitive touchscreen interface simplifies setup and stores up to 30 different sheet configurations, allowing quick transitions between orders. Customers also value the machine's robust construction, which ensures stable operation over long production runs, as well as our responsive after-sales support team that provides remote diagnostics and rapid spare parts delivery.
Below you will find the full technical specifications of this ibr rolling machine, along with profile cross-sections and available upgrade options.
Machine parameters
| No. |
Ibr rolling machine |
|
| 1 |
Number of rollers |
18 rollers |
| 2 |
Overall dimensions
|
8.7 × 1.6 × 1.8 m |
| 3 |
Main motor power |
5.5 kW |
| 4 |
Hydraulic motor power |
4 kW |
| 5 |
Sheet thickness |
0.3–0.8 mm |
| 6 |
Production speed |
10–15 m/min |
| 7 |
Cutter blade material |
Cr12MoV |
| 8 |
Roller shaft diameter |
Φ70 mm |
| 9 |
Total weight |
Approx. 4500 kg |
| 10 |
Main frame structure |
350 mm H‑beam |
| 11 |
Side‑plate thickness |
16 mm |
| 12 |
Processing accuracy |
Within ±1.0 mm |
| 13 |
Chain & sprocket size |
1‑inch |
| 14 |
Voltage |
380V 50Hz three‑phase or as per customer’s requirement |
| 15 |
Control system |
PLC |
| 16 |
Frequency converter |
Domestic brand |
| 17 |
Roller material |
45# forged steel with chrome‑plated surface |
| 18 |
Length tolerance |
±2 mm |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.

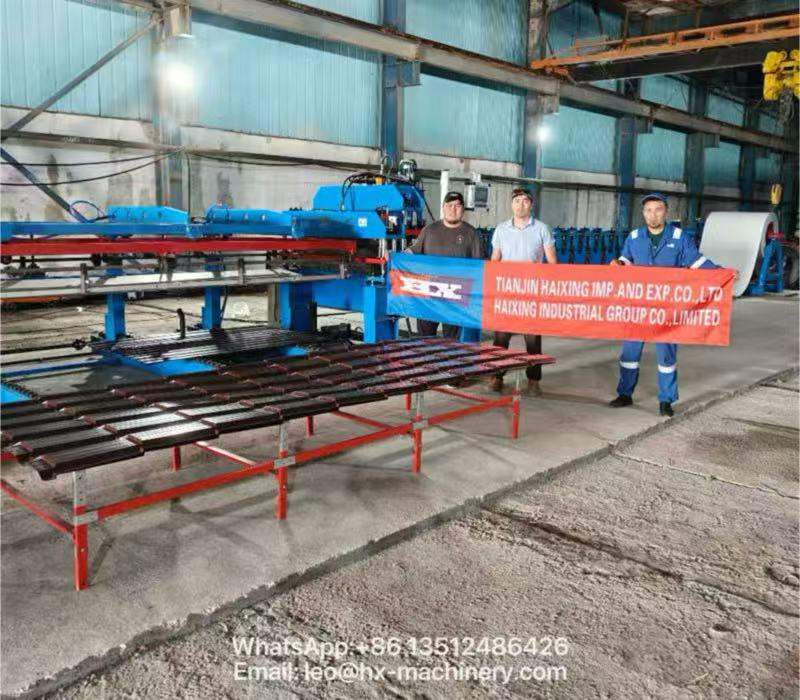

Clients Showing
