Model: HX-IBR ROOF
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: lily@hx-machinery.com

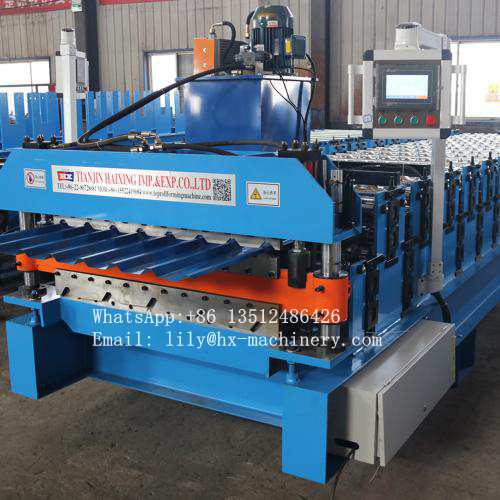

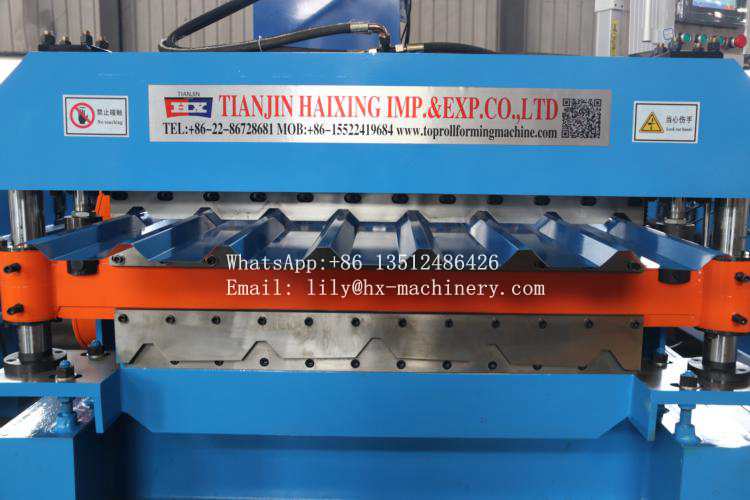

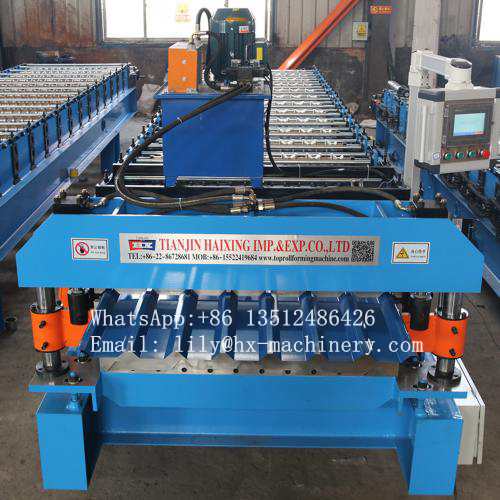

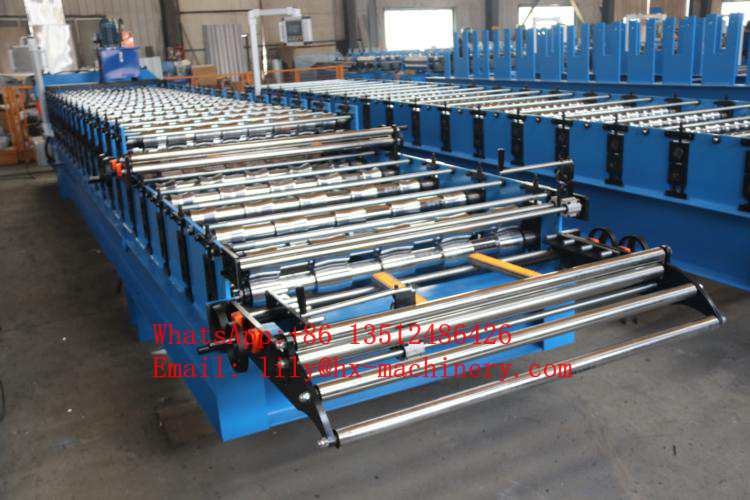

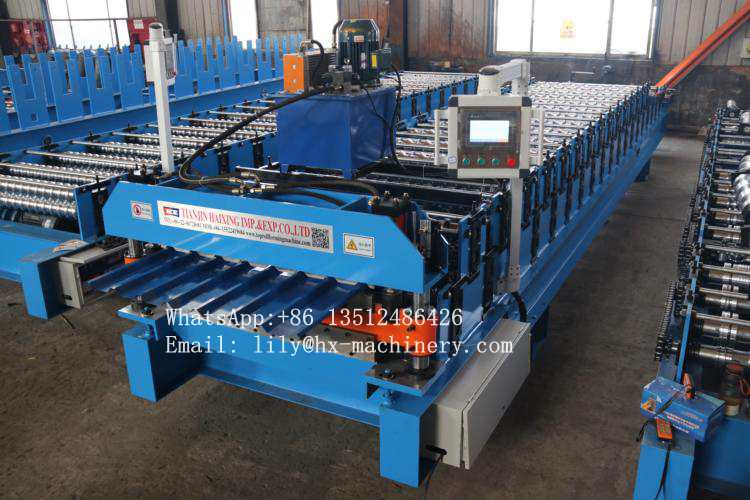

With two decades of expertise, Haixing Industrial Group Co., Ltd. , delivers professional roll forming solutions. The equipment introduced here is a More cost-effective ibr making machine price, designed for producing IBR roof sheets with precision.
Custom adjustments are available depending on project requirements. In demand in South Africa, Cameroon, Zimbabwe, and Burkina Faso.
Provided below are specifications of More cost-effective ibr making machine price and trapezoidal sheet sizes.

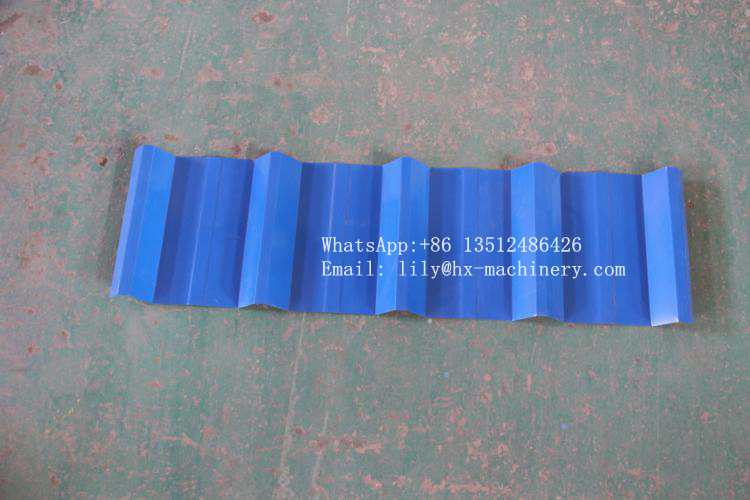

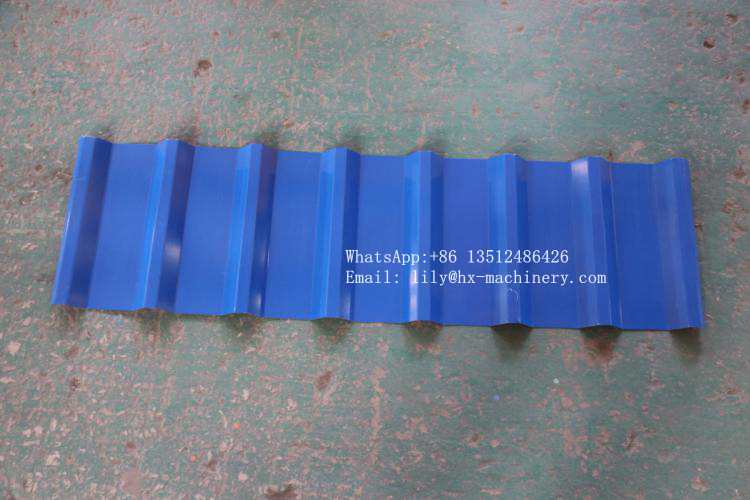

IBR roof sheet
IBR and corrugated roof sheets drawing
Machine parameters
| No. |
IBR making machine price |
|
| 1 |
Suitable to process |
GI, GL, PPGI, PPGL |
| 2 |
Dimensions |
8.7*1.6*1.7m |
| 3 |
Weight |
About 5T |
| 4 |
Main structure of the machine |
350mm H-Beam |
| 5 |
Side panel of machine |
16 mm |
| 6 |
Thickness of the raw material |
0.3-0.8mm |
| 7 |
Width of the raw material |
Max Material Width:1220 mm |
| 8 |
Drive mode |
Chain Wheel and Cycle Chain; Thickness:1 Inch
|
| 9 |
Productivity speed |
10-15m/min |
| 10 |

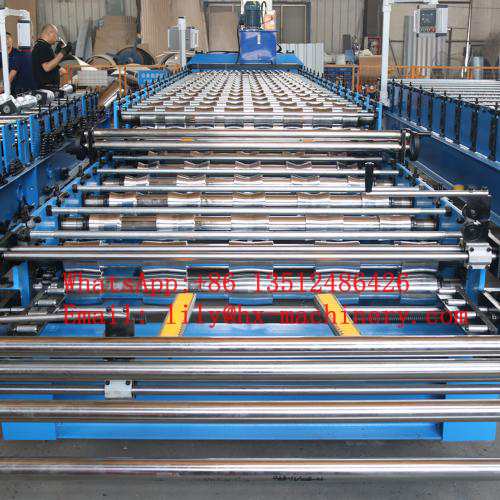

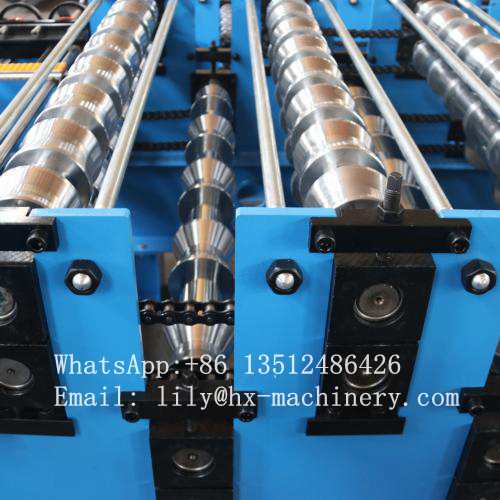

Rollers stations |
18 rows |
| 11 |
Rolling materials |
45# forging steel with chromium plate |
| 12 |
Diameter of the shaft |
Φ70mm (Solid shaft) |
| 13 |

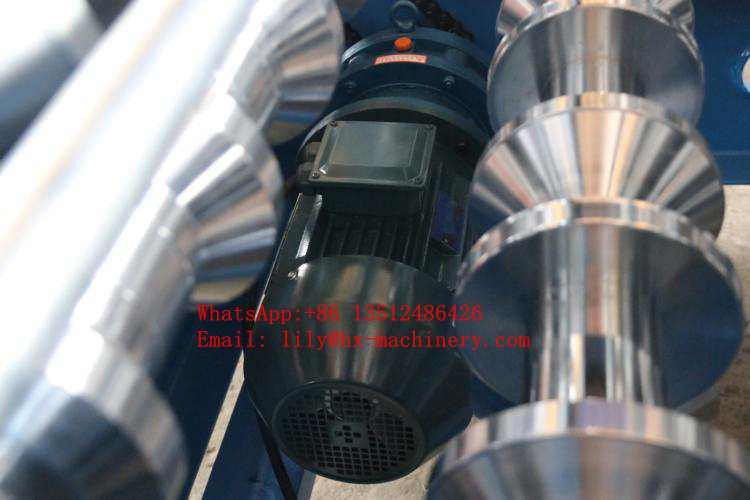

Motor Power |
5.5 KW |
| 14 |
Pump Station Motor |
4 KW |
| 15 |
Material of the cutting blade |
Cr12,Quenched treatment 58℃-60℃ |
| 16 |
Control system |
PLC control |
| 17 |
Touch screen |
The touch screen 360 degrees |
| 18 |
Voltage |
380V three-phase power |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
Clients Showing
