Model: HX-ibr sheeting machine
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com
With over 20 years of experience dedicated to roll forming technology, Haixing Industrial Group Co., Ltd. offers a reliable ibr sheeting machine designed to produce high-strength IBR panels with exceptional profile accuracy and surface quality—a dependable asset for roofing manufacturers worldwide.

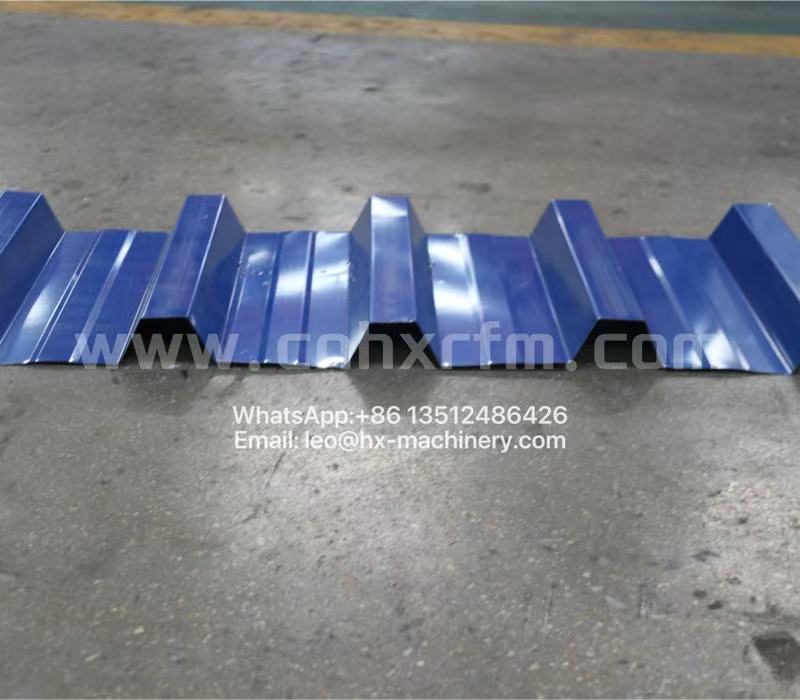

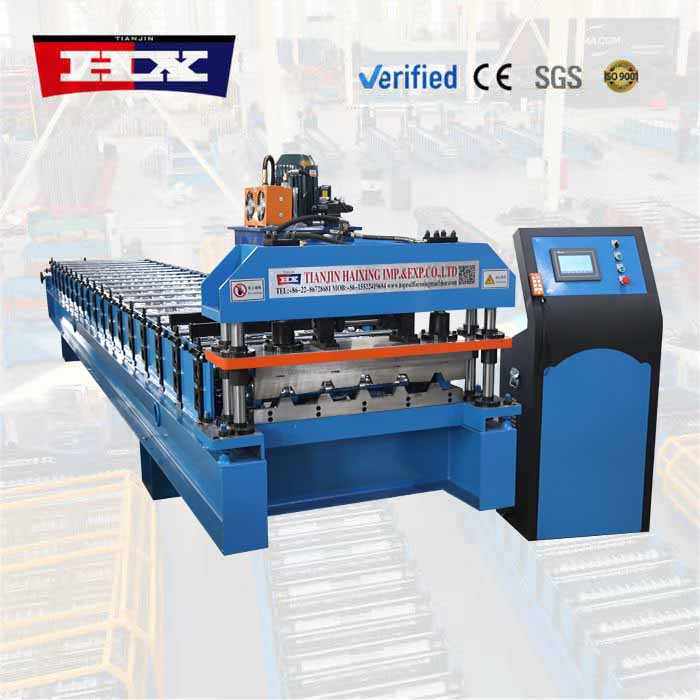

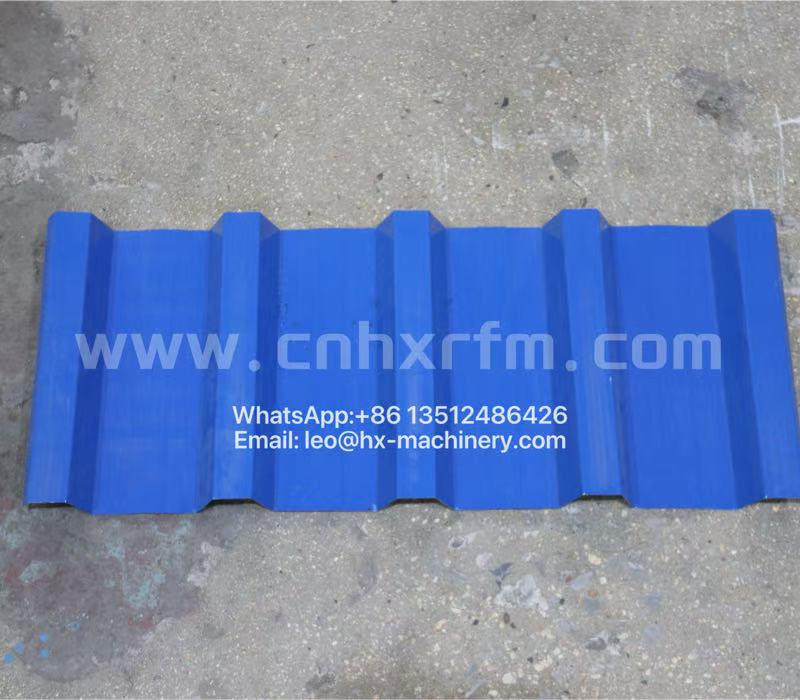

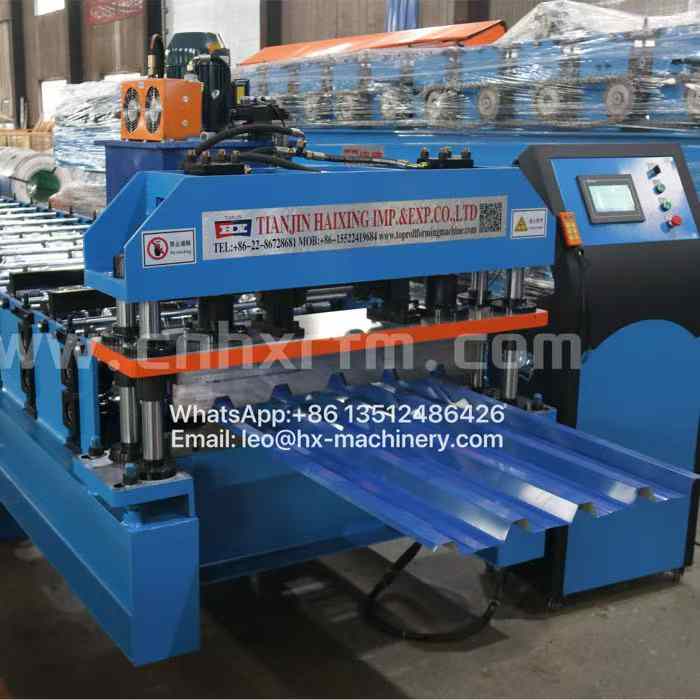

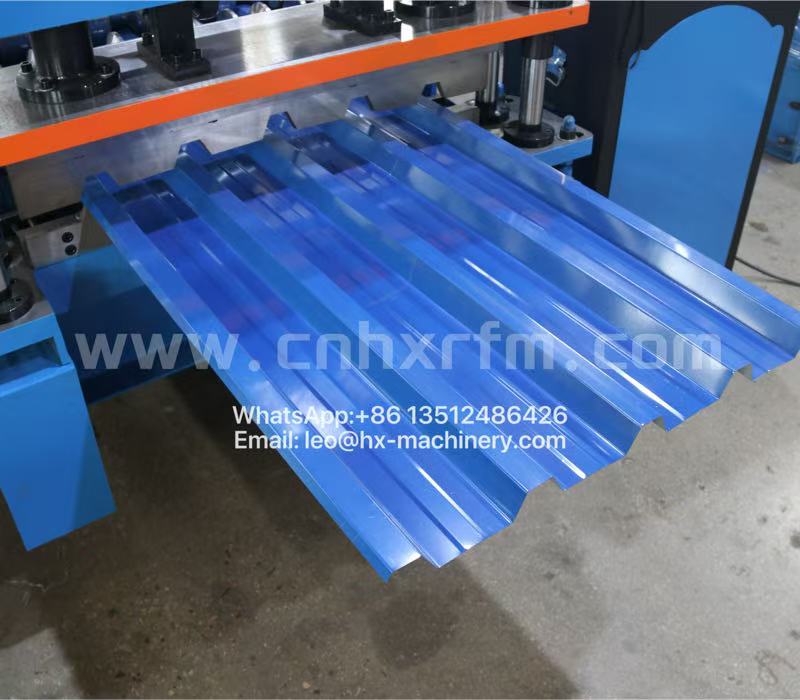

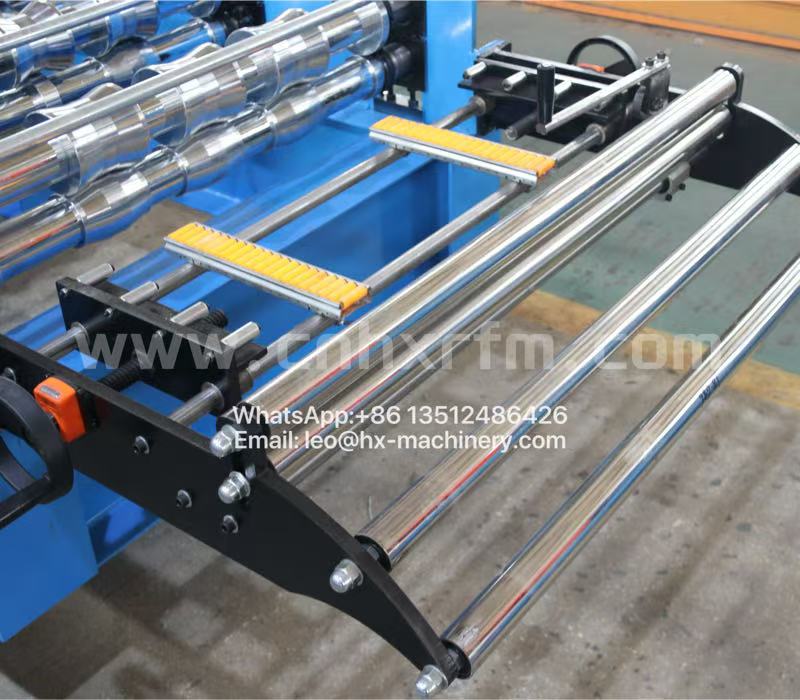

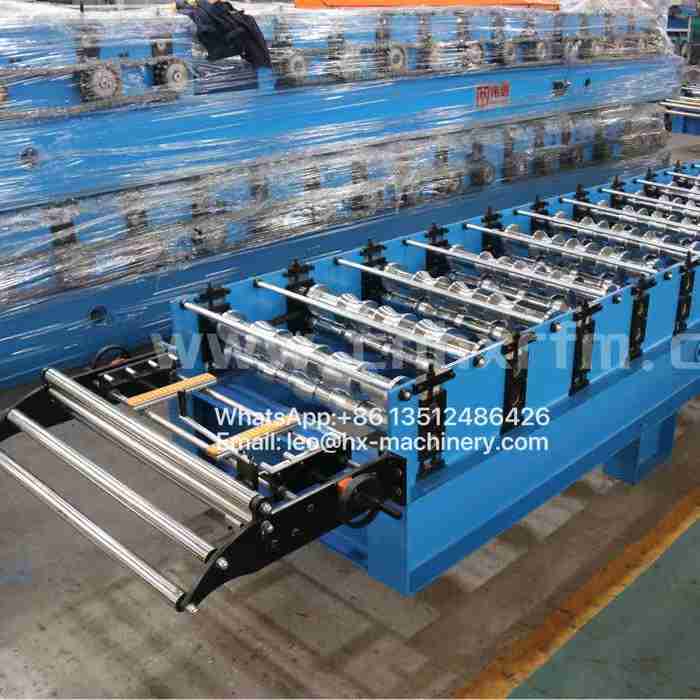

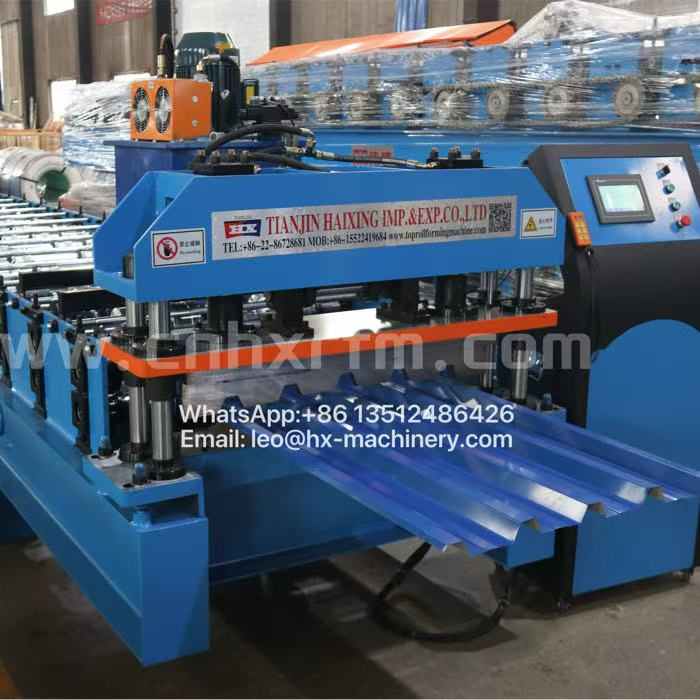

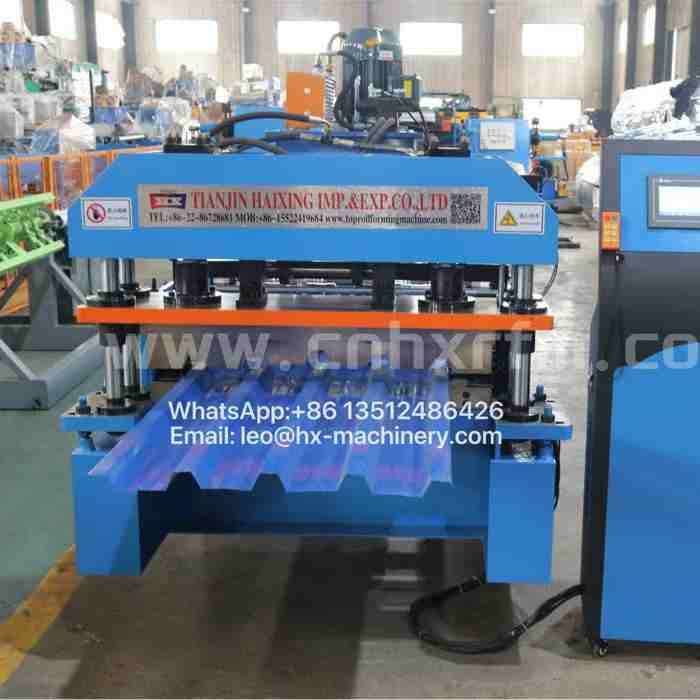

Our ibr sheeting machine integrates a robust decoiler, a 14-to-18-station precision roll forming section, a hydraulic punching unit for custom hole patterns, and a high-speed cutting system that ensures burr-free edges. It supports a variety of coil materials—including galvanized steel, prepainted steel, and aluminum—in thicknesses from 0.3mm to 0.8mm, producing sheets with uniform rib geometry and consistent length accuracy. Additional equipment such as automatic stackers, embossing rollers, and coil carriages can be incorporated to create a fully automated production line.
What distinguishes this ibr sheeting machine in competitive markets like Peru, the Philippines, Ghana, and the United Arab Emirates is its energy-efficient drive system, which reduces power consumption without compromising output speed. The user-friendly PLC interface allows operators to store multiple profile settings and switch between orders in minutes. Customers also appreciate our comprehensive support package—including commissioning assistance, troubleshooting guides, and a dedicated spare parts inventory that ensures minimal downtime. Many users report years of trouble-free operation and a strong return on investment.
Below are the complete specifications and optional configurations for our ibr sheeting machine.
Machine parameters
| No. |
Ibr sheeting machine |
|
| 1 |

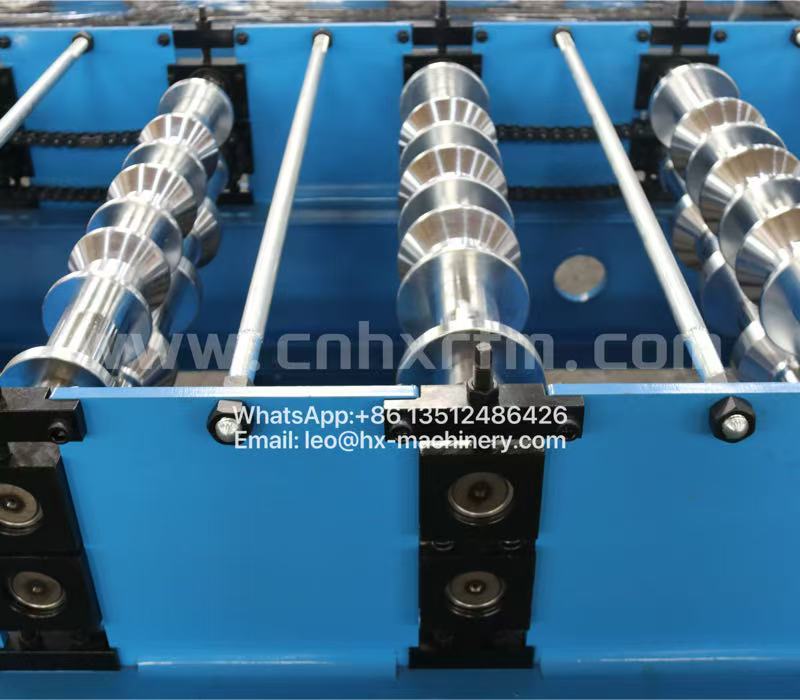

Number of rollers |
18 rollers |
| 2 |
Overall dimensions
|
8.7 × 1.6 × 1.8 m |
| 3 |
Main motor power |
5.5 kW |
| 4 |
Hydraulic motor power |
4 kW |
| 5 |
Sheet thickness |
0.3–0.8 mm |
| 6 |
Production speed |
10–15 m/min |
| 7 |
Cutter blade material |
Cr12MoV |
| 8 |
Roller shaft diameter |
Φ70 mm |
| 9 |
Total weight |
Approx. 4500 kg |
| 10 |
Main frame structure |
350 mm H‑beam |
| 11 |
Side‑plate thickness |
16 mm |
| 12 |
Processing accuracy |
Within ±1.0 mm |
| 13 |
Chain & sprocket size |
1‑inch |
| 14 |
Voltage |
380V 50Hz three‑phase or as per customer’s requirement |
| 15 |
Control system |
PLC |
| 16 |
Frequency converter |
Domestic brand |
| 17 |
Roller material |
45# forged steel with chrome‑plated surface |
| 18 |
Length tolerance |
±2 mm |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
