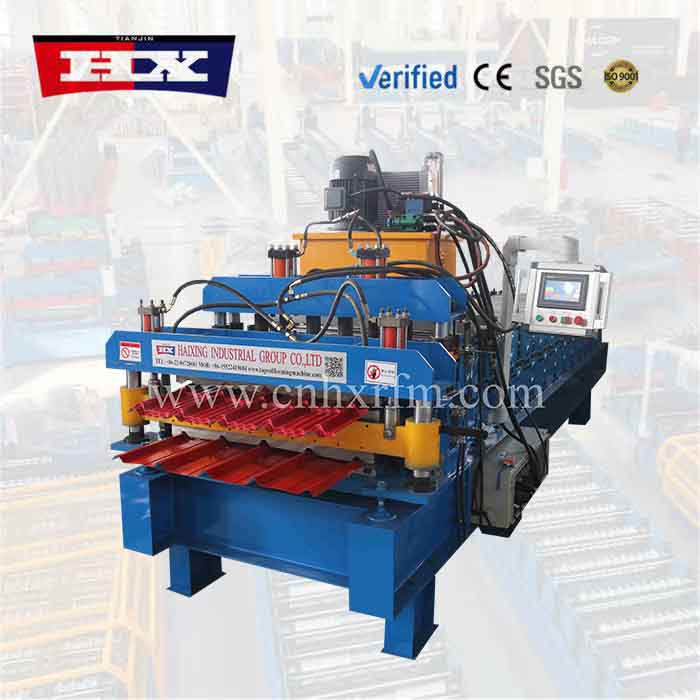

Model: HX-ibr roof sheeting
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com
With over 20 years of manufacturing experience, Haixing Industrial Group Co., Ltd. delivers a robust ibr roof sheeting machine that has become a trusted workhorse for roofing contractors and steel service centers around the world—combining high output with lasting reliability.

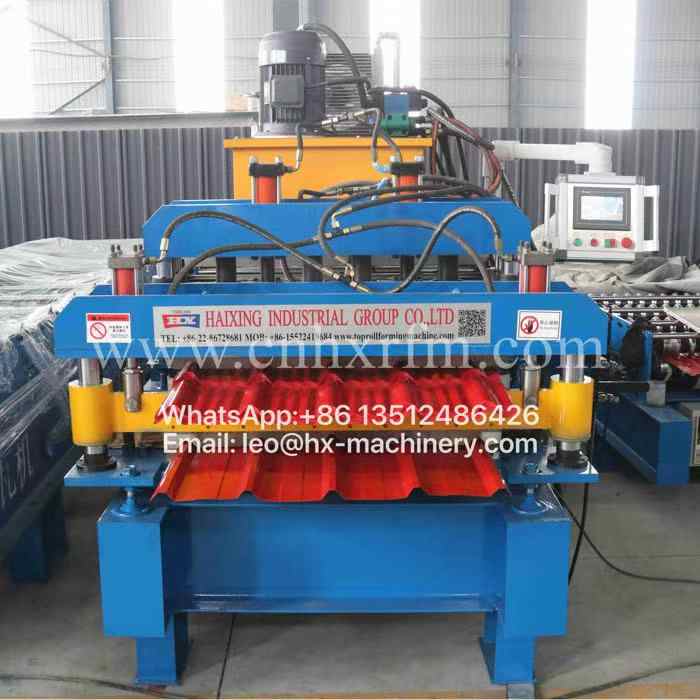

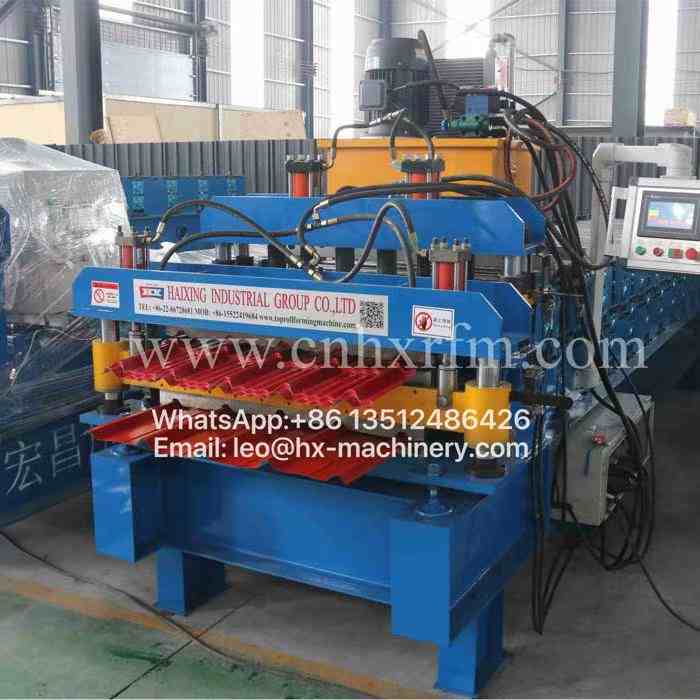

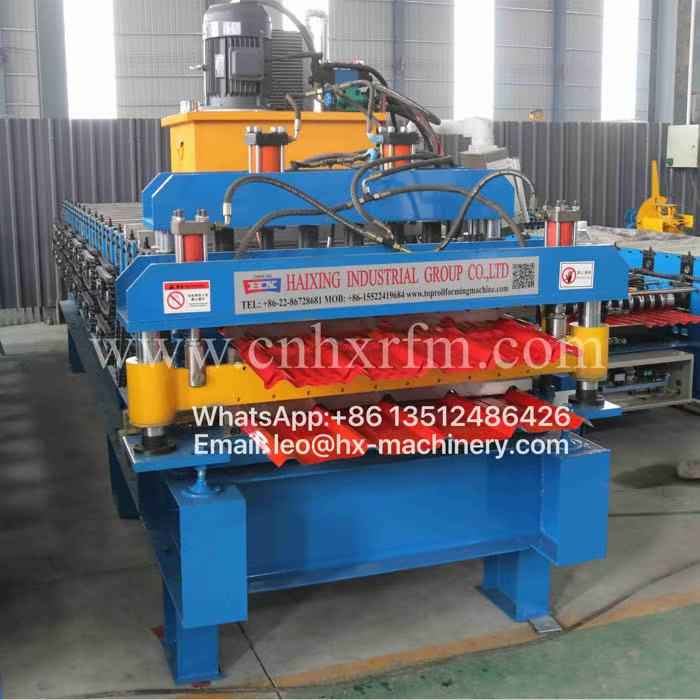

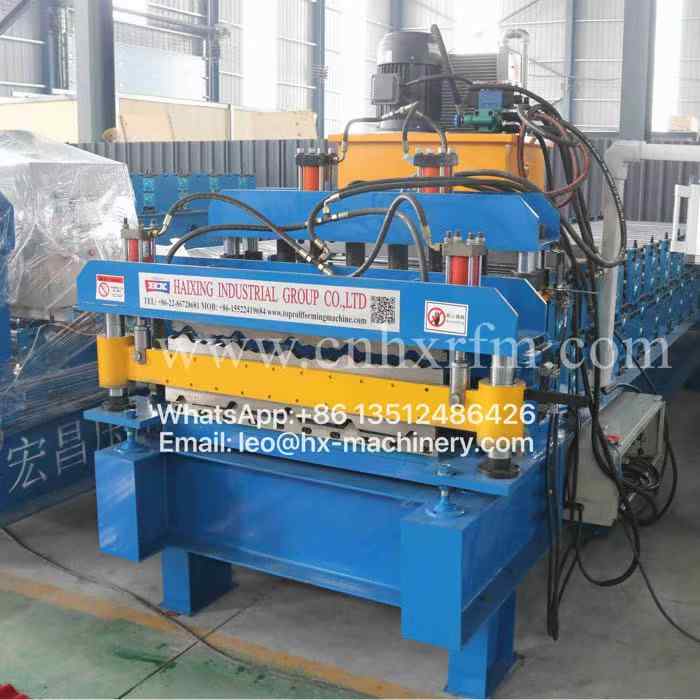

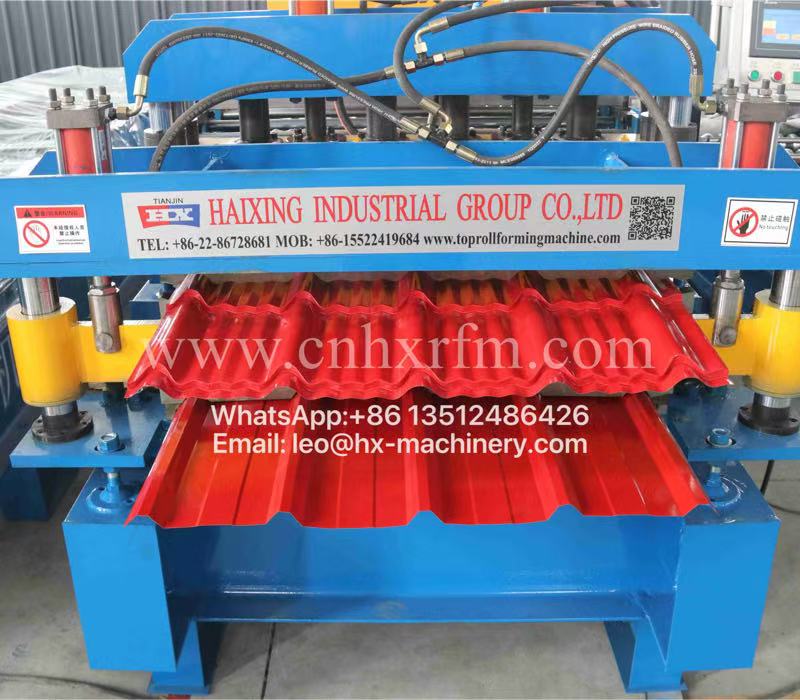

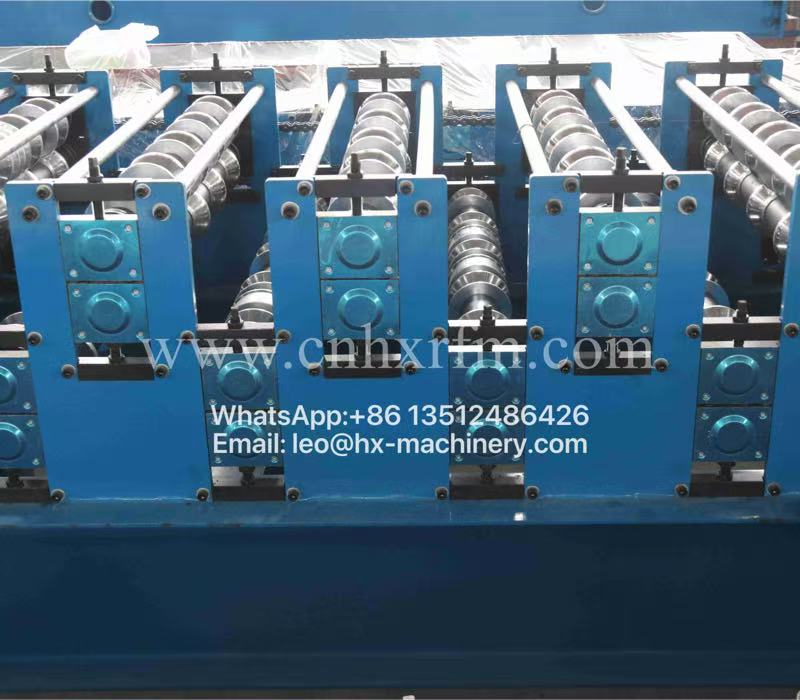

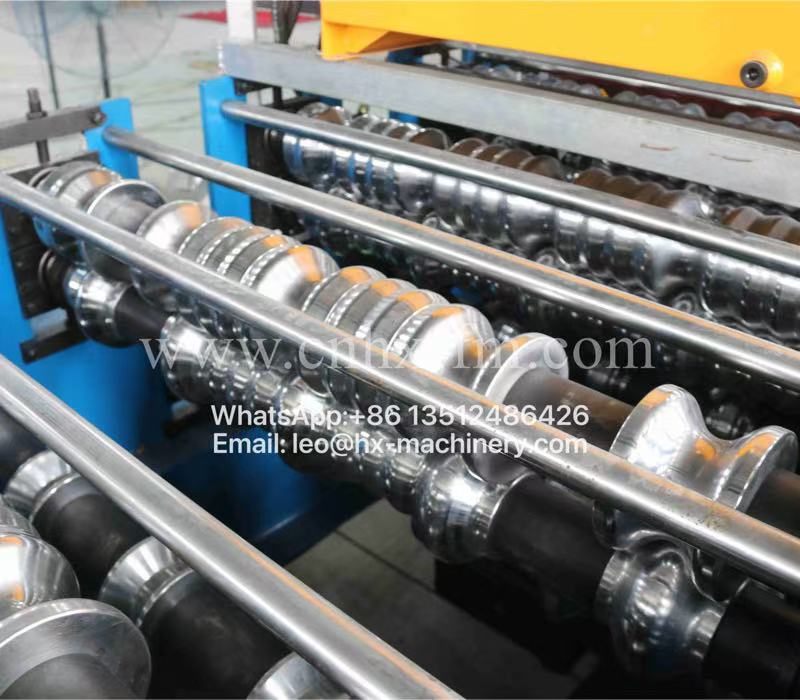

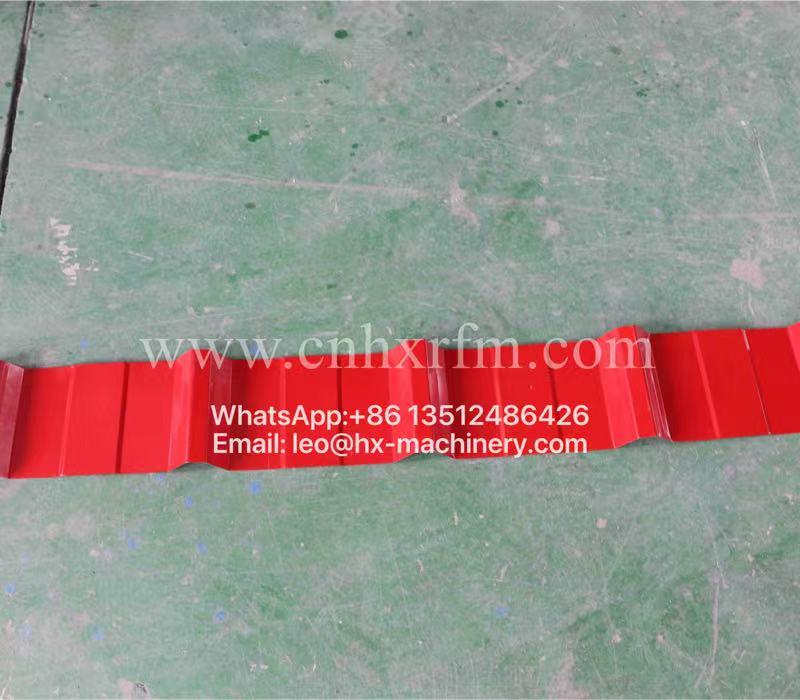

Our ibr roof sheeting machine is constructed with a heavy-duty welded frame and equipped with 16 precision-ground roll stations that progressively shape flat coil into the distinctive inverted box rib profile. A programmable hole-punching station can be added to create pre-drilled fastening points, reducing installation time for end users. The machine also supports quick roll changes, allowing production flexibility for different IBR variants.
What sets our ibr roof sheeting machine apart in markets across South America, Africa, and Southeast Asia is its straightforward mechanical design—fewer complex components mean less downtime and easier maintenance for local technicians. Customers consistently report that the machine operates reliably at speeds of 8–12 meters per minute, with consistent profile accuracy and minimal material waste. We back every machine with comprehensive technical documentation, video installation guides, and remote support to ensure a smooth start-up experience.
Below you will find the complete technical data sheet for our ibr roof sheeting machine, along with layout suggestions and a list of standard accessories.
Machine parameters
| No. |
Ibr roof sheeting machine |
|
| 1 |
Number of rollers |
18 y 13 rollers |
| 2 |
Overall dimensions
|
6.2 × 1.6 × 1.8 m |
| 3 |
Main motor power |
5.5 kW |
| 4 |
Hydraulic motor power |
4 kW |
| 5 |
Sheet thickness |
0.3–0.8 mm |
| 6 |
Production speed |
10–15 m/min |
| 7 |
Cutter blade material |
Cr12MoV |
| 8 |
Roller shaft diameter |
Φ70 mm |
| 9 |
Total weight |
Approx. 4500 kg |
| 10 |
Main frame structure |
350 mm H‑beam |
| 11 |
Side‑plate thickness |
16 mm |
| 12 |
Processing accuracy |
Within ±1.0 mm |
| 13 |
Chain & sprocket size |
1‑inch |
| 14 |
Voltage |
380V 50Hz three‑phase or as per customer’s requirement |
| 15 |
Control system |
PLC |
| 16 |
Frequency converter |
Domestic brand |
| 17 |
Roller material |
45# forged steel with chrome‑plated surface |
| 18 |
Length tolerance |
±2 mm |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
Clients Showing
