Model: HX-ibr roof sheet making
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com

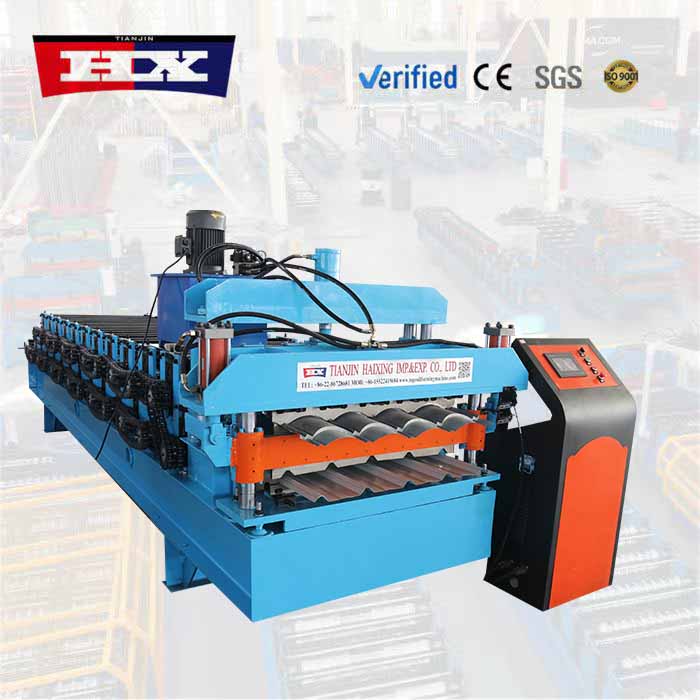

Haixing Industrial Group Co., Ltd. , with over 20 years of dedicated service in the roll forming sector, offers a high-performance ibr roof sheet making machine that combines durability, precision, and production efficiency—ideal for roofing manufacturers looking to meet growing market demand with consistent quality.

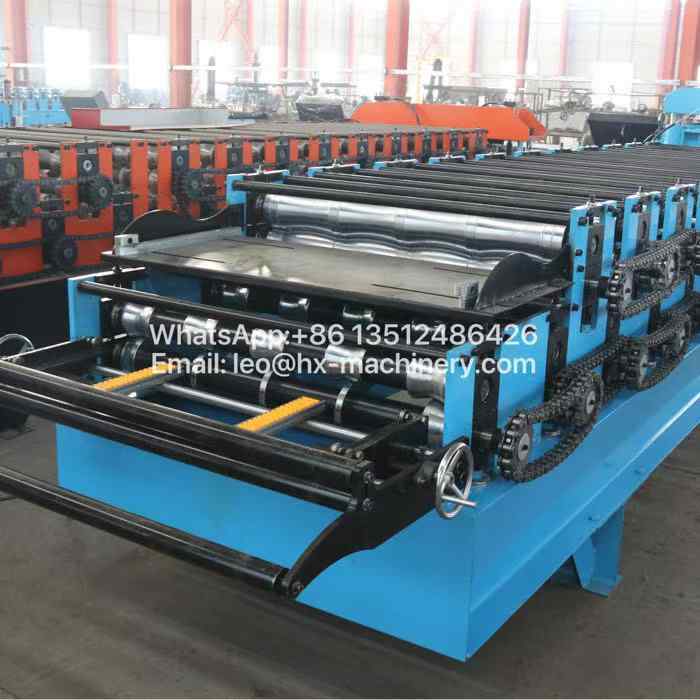

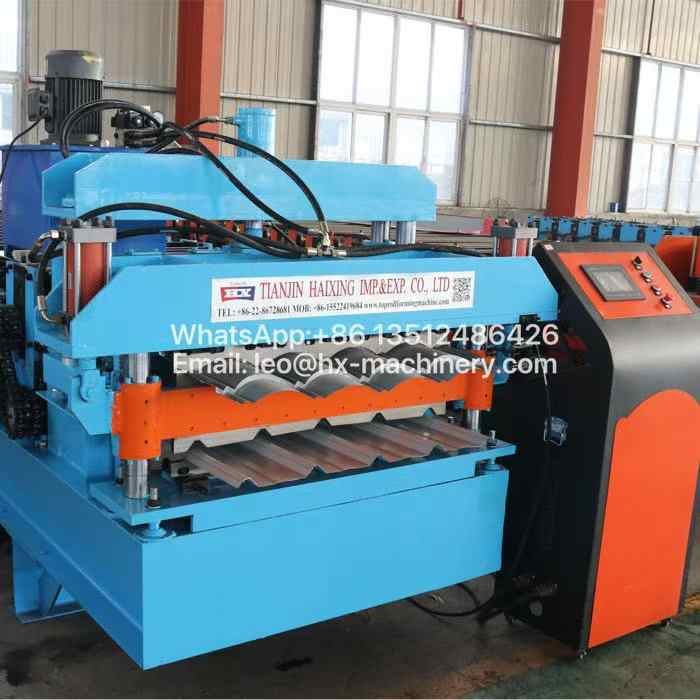

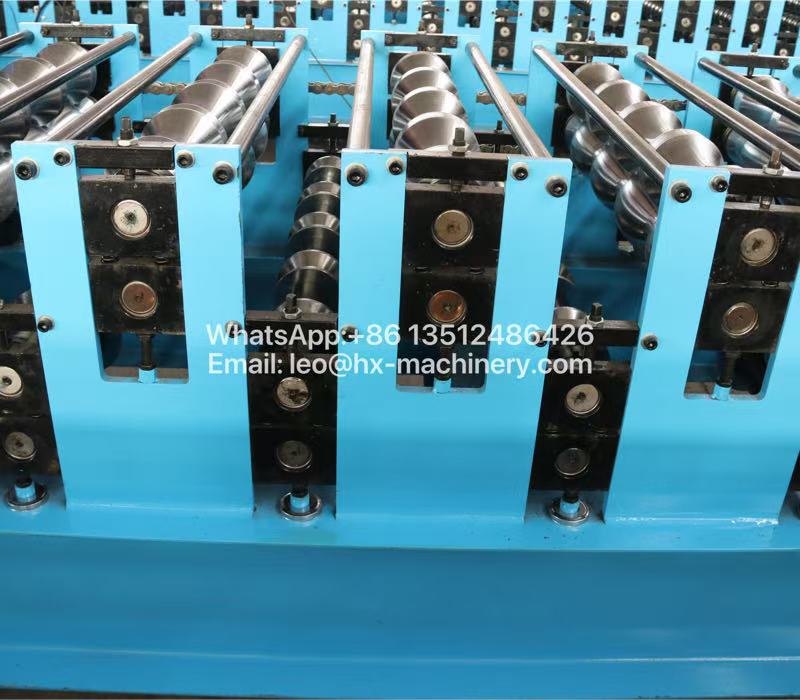

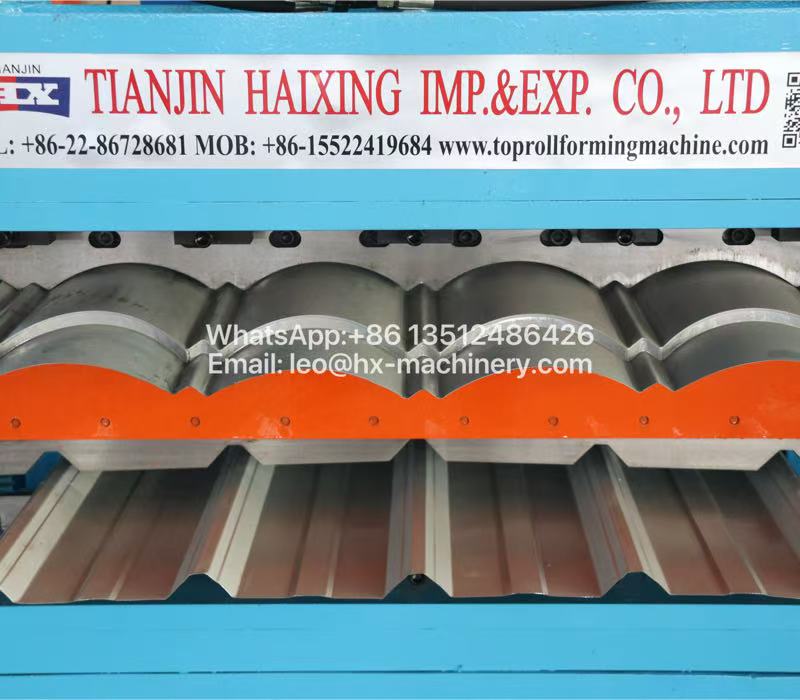

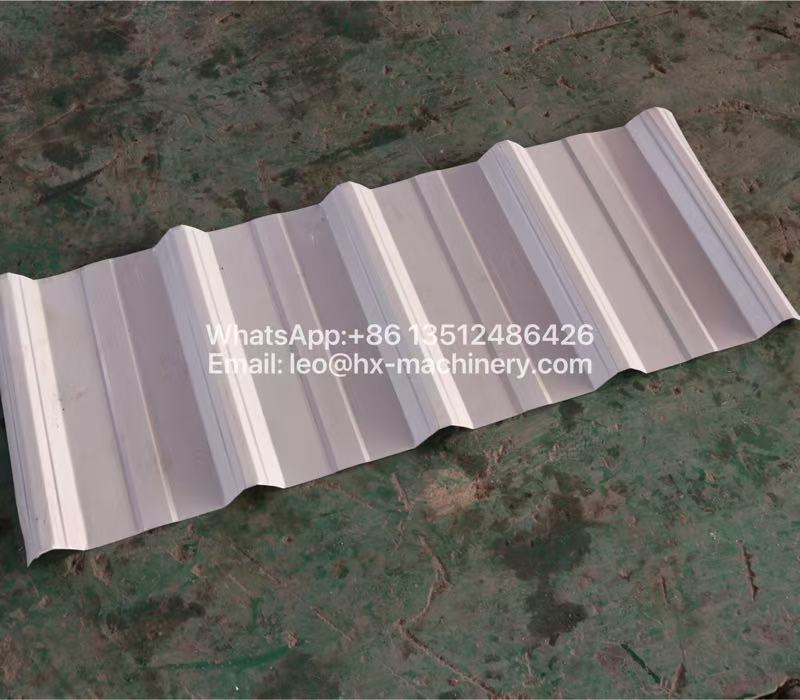

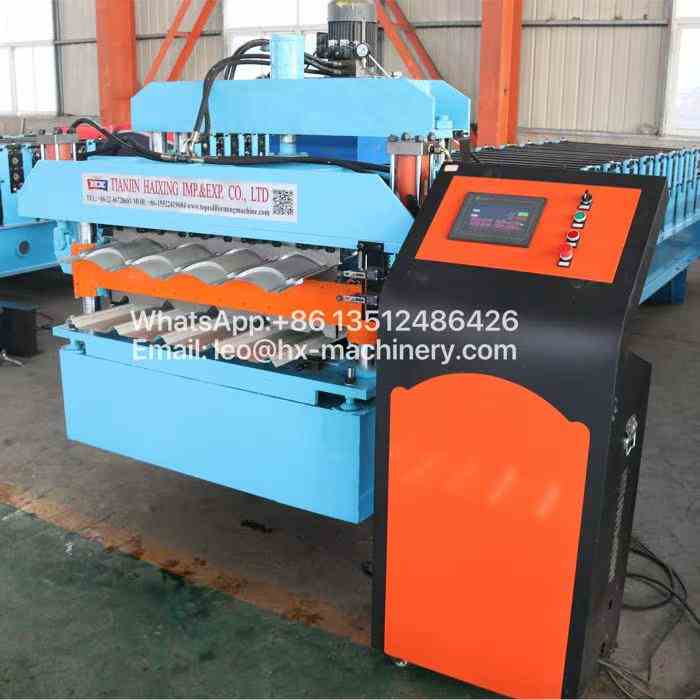

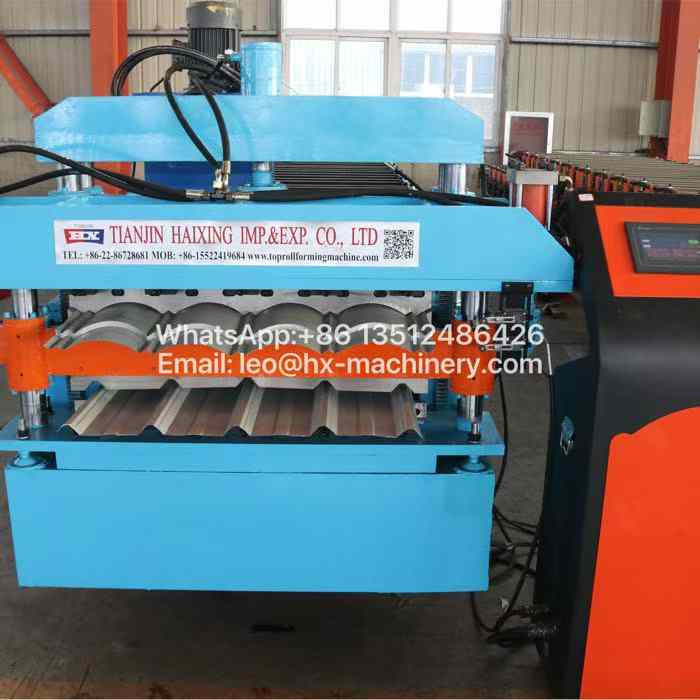

Our ibr roof sheet making machine is designed to convert galvanized, prepainted, or aluminum coil into finished IBR panels with excellent flatness, uniform rib depth, and cleanly cut ends. Key components include a heavy-duty uncoiler, 16 forming stations with hardened rollers, a hydraulic punching system for holes or ribs, and an automatic flying shear for precise length cutting. Options such as stacker units, coil carriages, and embossing rollers are available to expand production flexibility.
What drives the popularity of this ibr roof sheet making machine in places like Peru, Chile, Indonesia, and the Gulf region is its reliable performance on-site: stable operation at 8–12m/min, fast profile changeover, and built-in safety features that protect both operators and equipment. Our clients also benefit from full documentation, remote support access, and a globally stocked spare parts network—ensuring that installation, maintenance, and troubleshooting are always within reach.
Below you will find the technical datasheet and configuration options for this ibr roof sheet making machine.
Machine parameters
| No. |
Ibr roof sheet making machine |
|
| 1 |
Number of rollers |
18 y 13 rollers |
| 2 |
Overall dimensions
|
6.2 × 1.6 × 1.8 m |
| 3 |
Main motor power |
5.5 kW |
| 4 |
Hydraulic motor power |
4 kW |
| 5 |
Sheet thickness |
0.3–0.8 mm |
| 6 |
Production speed |
10–15 m/min |
| 7 |
Cutter blade material |
Cr12MoV |
| 8 |
Roller shaft diameter |
Φ70 mm |
| 9 |
Total weight |
Approx. 4500 kg |
| 10 |
Main frame structure |
350 mm H‑beam |
| 11 |
Side‑plate thickness |
16 mm |
| 12 |
Processing accuracy |
Within ±1.0 mm |
| 13 |
Chain & sprocket size |
1‑inch |
| 14 |
Voltage |
380V 50Hz three‑phase or as per customer’s requirement |
| 15 |
Control system |
PLC |
| 16 |
Frequency converter |
Domestic brand |
| 17 |

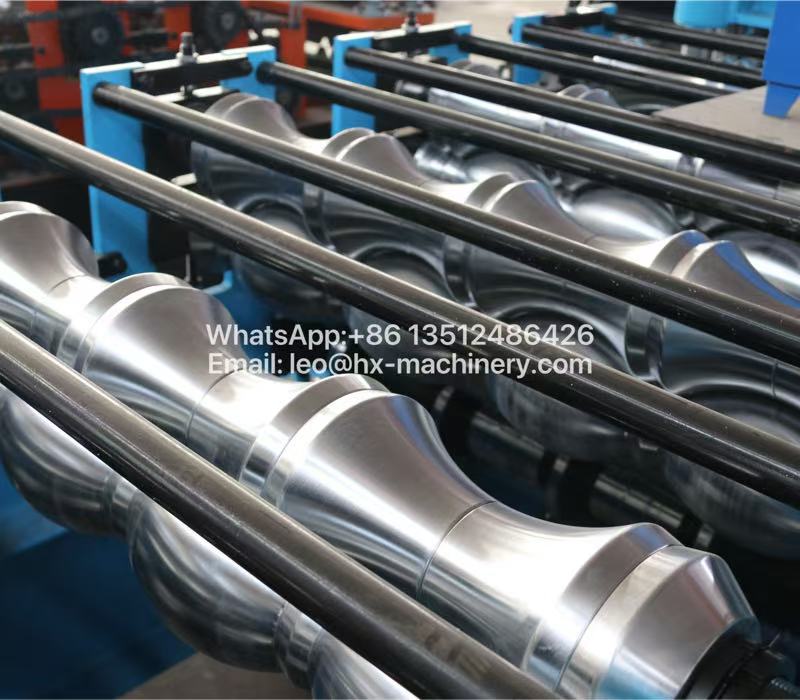

Roller material |
45# forged steel with chrome‑plated surface |
| 18 |
Length tolerance |
±2 mm |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
