Model: HX-ibr roof sheet making
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com
When considering an ibr roof sheet making machine price, Haixing Industrial Group Co., Ltd. offers factory-direct value that combines robust engineering with cost efficiency—backed by over 20 years of roll forming expertise and a global service network.

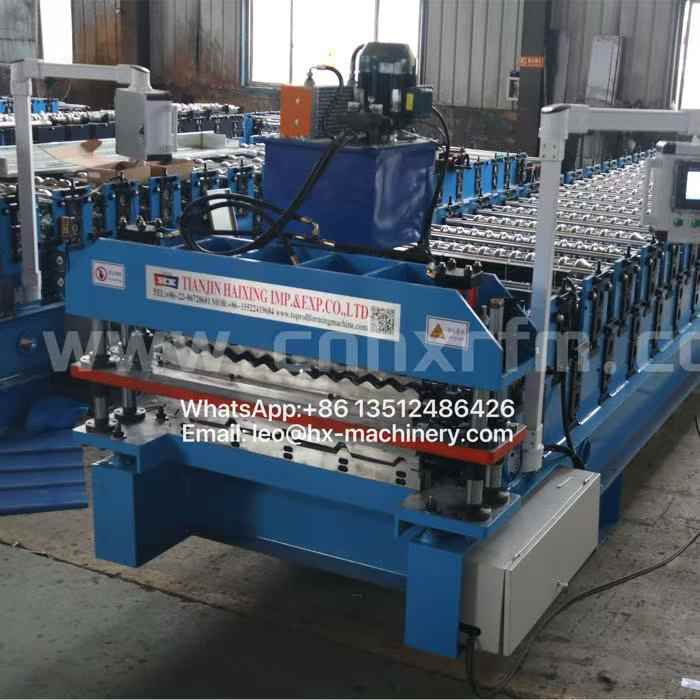

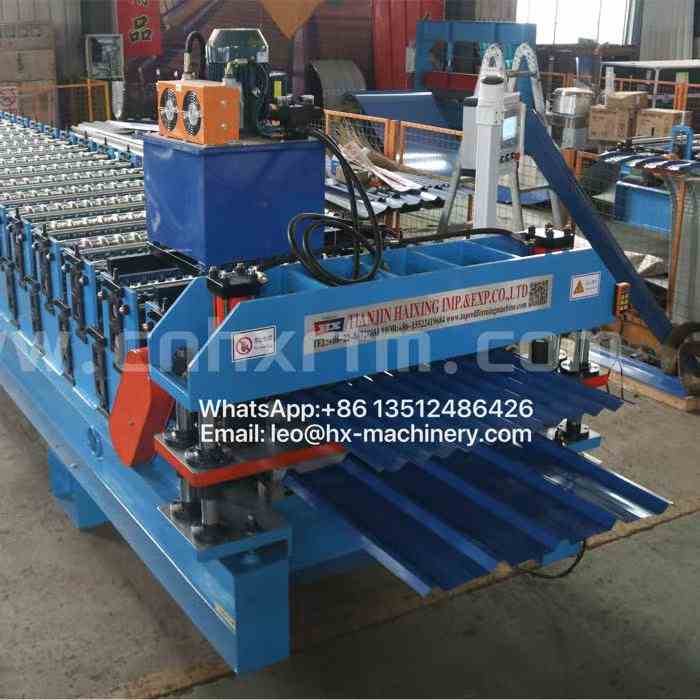

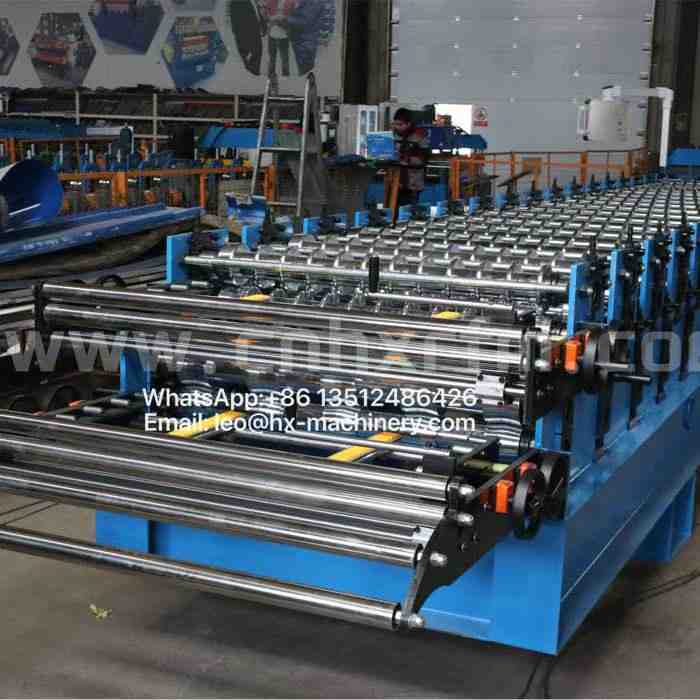

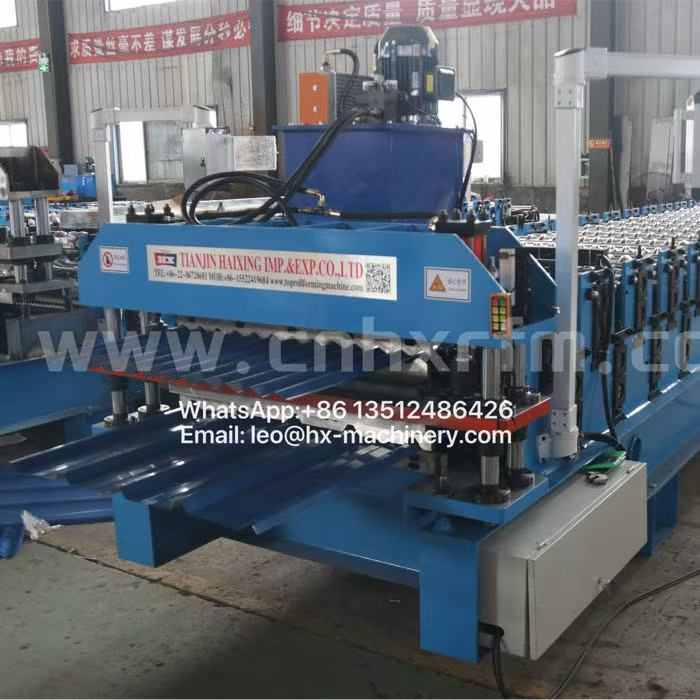

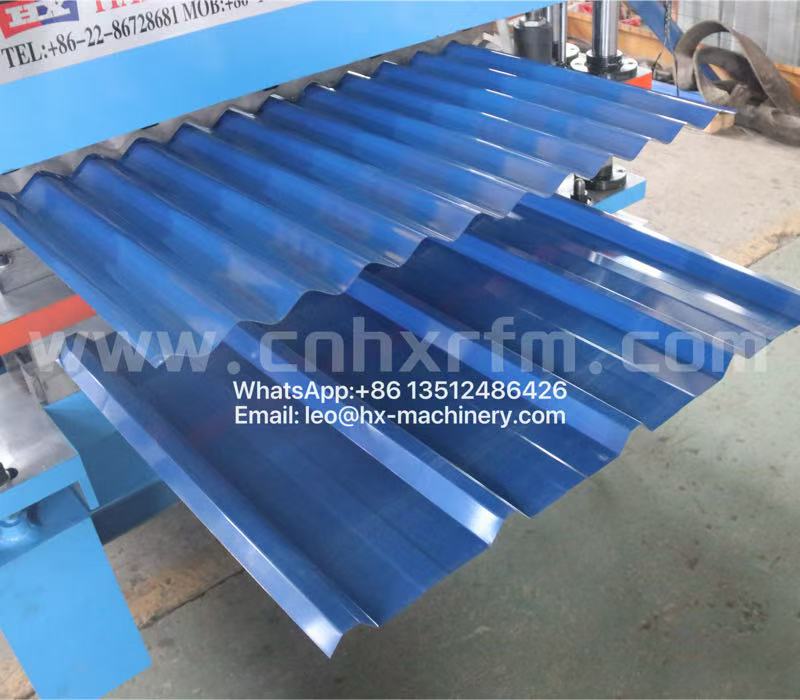

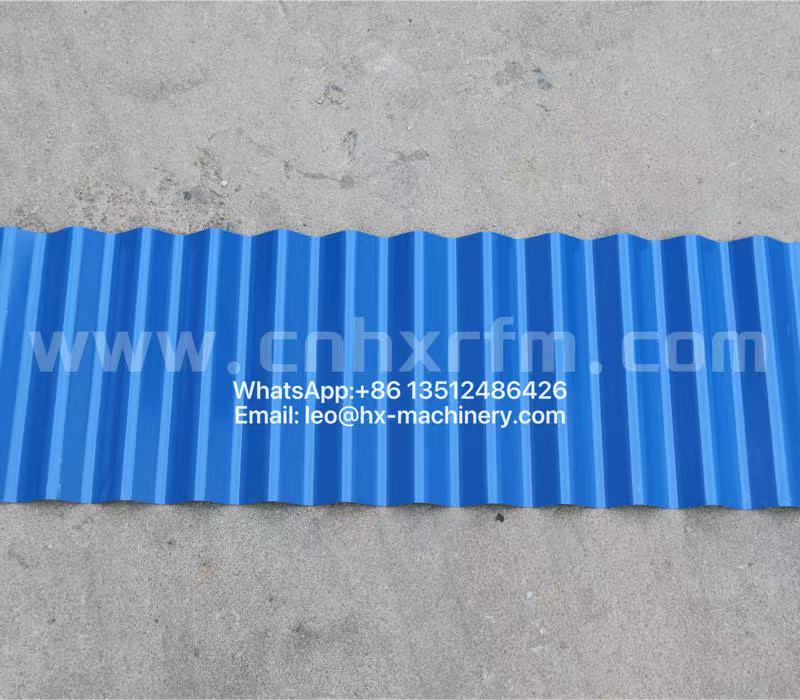

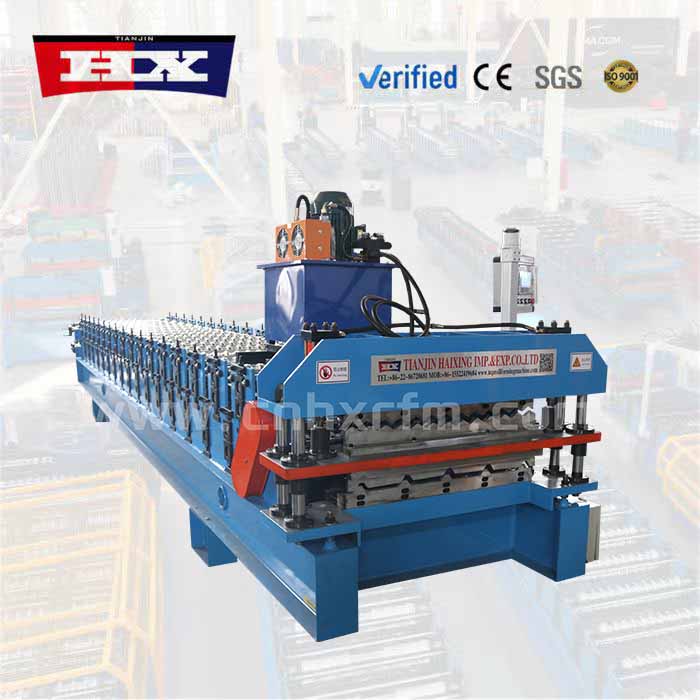

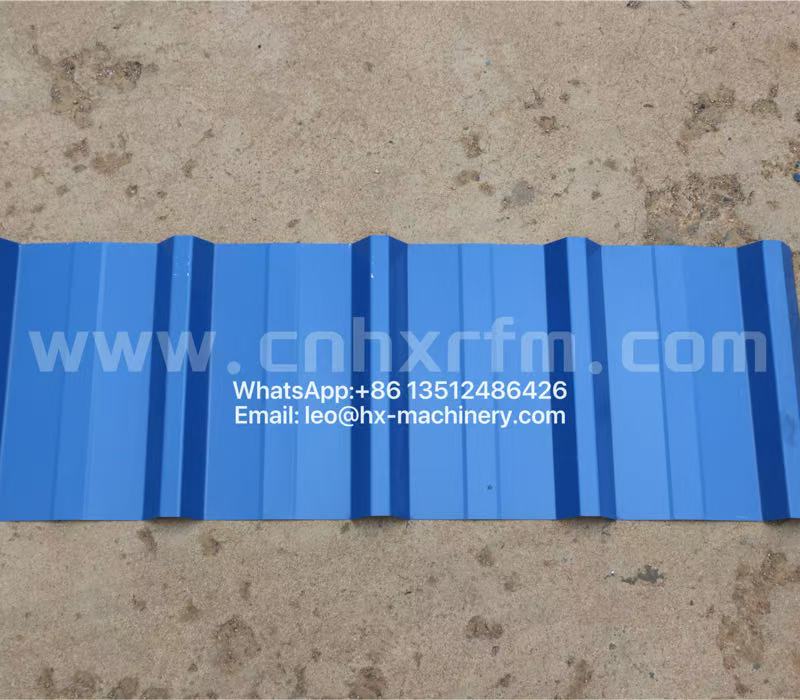

Our ibr roof sheet making machine price includes a complete production line: decoiler, precision roll forming system with 16 forming stations, hydraulic punching unit, flying cutoff saw, and automatic stacker. The machine produces standard IBR profiles with consistent rib spacing and flatness, suitable for roofing, cladding, and wall panel applications. Customizations—such as different wave heights, overlap designs, and hole punching patterns—can be added with minimal cost adjustment.
What makes our ibr roof sheet making machine price especially attractive to buyers in Southeast Asia, Africa, and South America is the inclusive package—PLC control system with touchscreen interface, variable speed drives, emergency stop mechanisms, and a full set of spare rollers and blades. We also provide complimentary installation guidance, operational training via video, and 12-month warranty. Many customers find that our transparent pricing, without hidden shipping or commissioning fees, helps them plan their budget accurately and start production within weeks of delivery.
Below is the base specification sheet and a detailed cost breakdown for our ibr roof sheet making machine price, with optional upgrades listed separately for your reference.
Machine parameters
| No. |
Ibr roof sheet making machine price |
|
| 1 |
Number of rollers |
9 y 13 rollers |
| 2 |
Overall dimensions
|
6.2 × 1.6 × 1.8 m |
| 3 |
Main motor power |
5.5 kW |
| 4 |
Hydraulic motor power |
4 kW |
| 5 |
Sheet thickness |
0.3–0.8 mm |
| 6 |
Production speed |
10–15 m/min |
| 7 |
Cutter blade material |
Cr12MoV |
| 8 |
Roller shaft diameter |
Φ70 mm |
| 9 |
Total weight |
Approx. 4500 kg |
| 10 |
Main frame structure |
350 mm H‑beam |
| 11 |
Side‑plate thickness |
16 mm |
| 12 |
Processing accuracy |
Within ±1.0 mm |
| 13 |
Chain & sprocket size |
1‑inch |
| 14 |
Voltage |
380V 50Hz three‑phase or as per customer’s requirement |
| 15 |
Control system |
PLC |
| 16 |
Frequency converter |
Domestic brand |
| 17 |

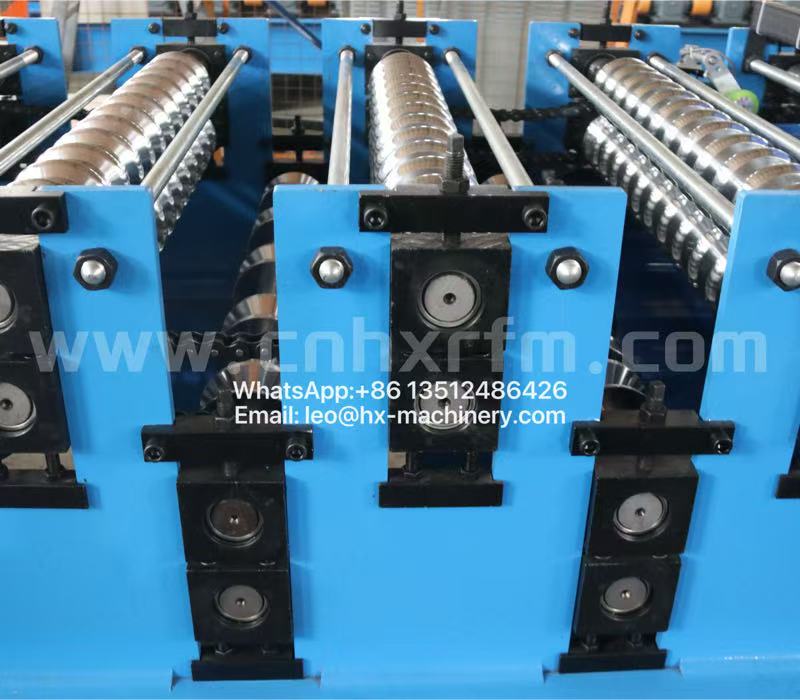

Roller material |
45# forged steel with chrome‑plated surface |
| 18 |
Length tolerance |
±2 mm |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.

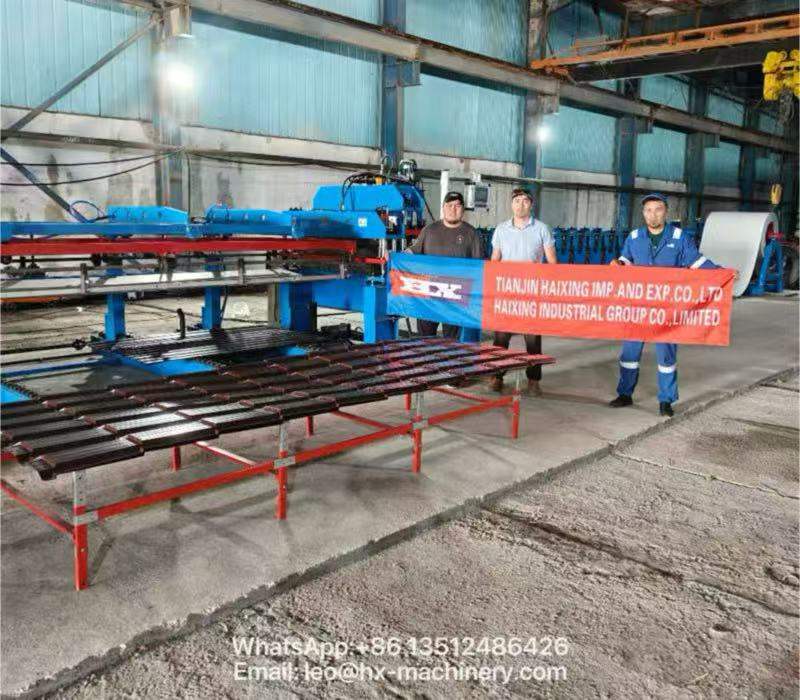

Clients Showing
