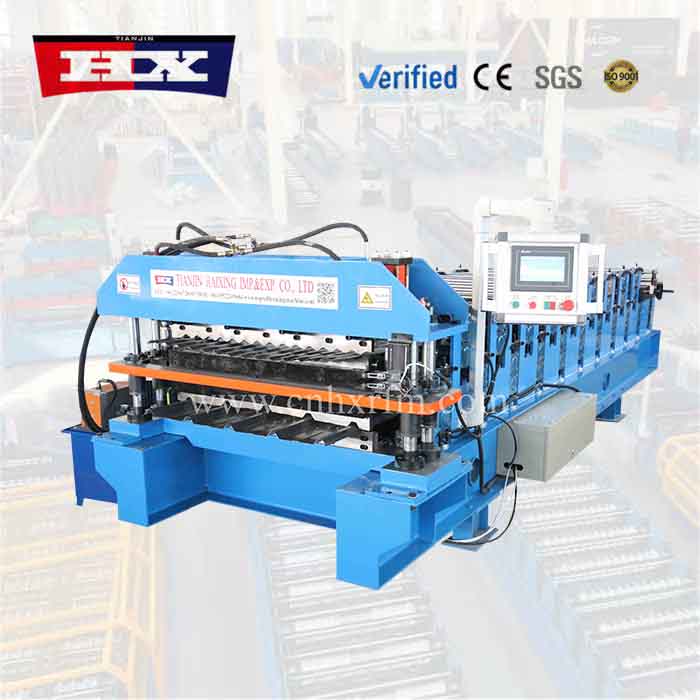

Model: HX-ibr making machine
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com
With over 20 years of hands-on experience in the roll forming industry, Haixing Industrial Group Co., Ltd. supplies a rugged and reliable ibr making machine that has become a go-to solution for roofing contractors and steel distributors across developing and developed markets alike.

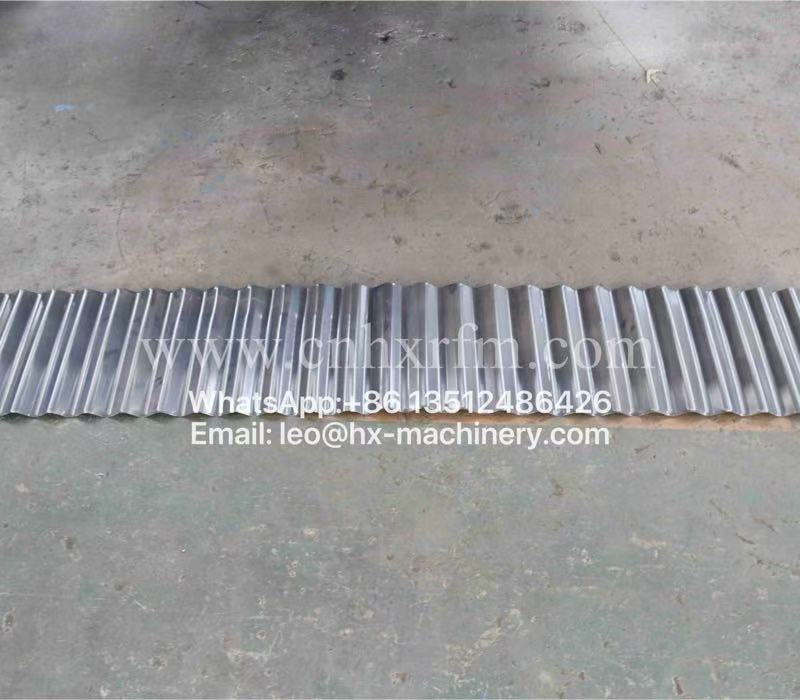

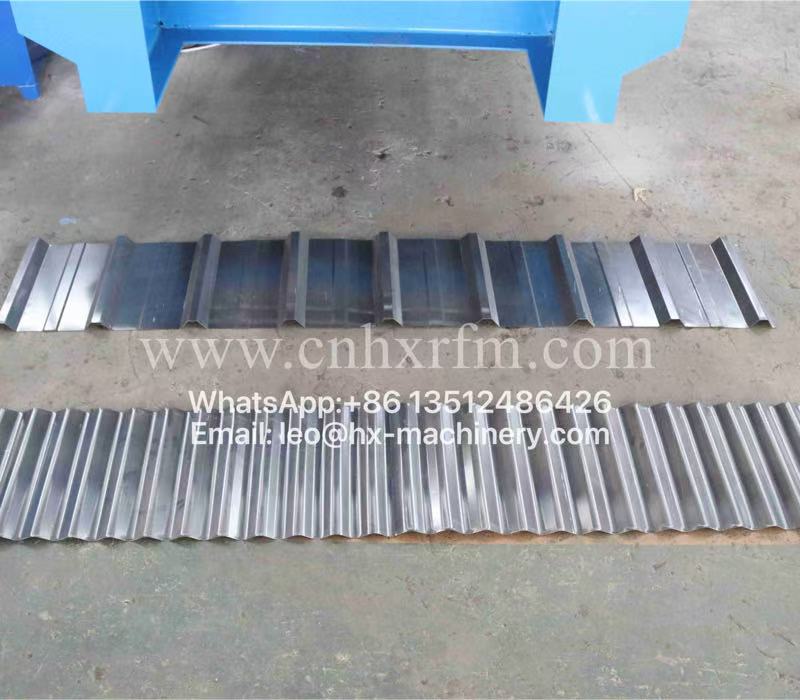

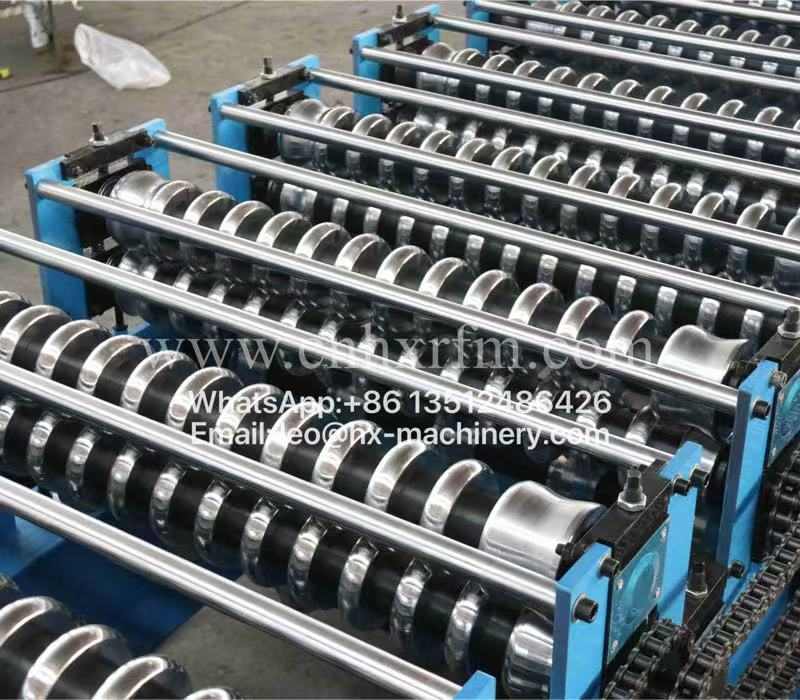

Our ibr making machine is purpose-built to produce IBR (Inverted Box Rib) profiles with exceptional precision, featuring a 14-to-18 station roll forming system, heavy-duty hydraulic shearing, and an automatic length control unit that ensures each sheet meets exact specifications. The machine handles coil widths from 800mm to 1200mm and thicknesses ranging from 0.3mm to 0.8mm, with optional embossing units for added surface rigidity and aesthetic appeal. Customizations—such as variable rib spacing, hole punching patterns, and stacking systems—are available to match specific project needs.
What distinguishes this ibr making machine in export destinations such as the Philippines, Brazil, Nigeria, and Vietnam is its proven performance under continuous operation—users report stable output at speeds of 12–15 meters per minute with minimal material waste. The intuitive PLC interface allows operators to store multiple profile recipes, reducing setup time significantly when switching between different sheet lengths or hole configurations. Backed by our responsive technical support team, comprehensive operation manuals, and readily stocked spare parts, this machine consistently delivers dependable service year after year.
Below you will find the detailed technical specifications of this ibr making machine, along with sample profile drawings and recommended layout configurations.
Machine parameters
| No. |
Ibr making machine |
|
| 1 |
Number of rollers |
9 y 13 rollers |
| 2 |
Overall dimensions
|
6.2 × 1.6 × 1.8 m |
| 3 |
Main motor power |
5.5 kW |
| 4 |
Hydraulic motor power |
4 kW |
| 5 |
Sheet thickness |
0.3–0.8 mm |
| 6 |
Production speed |
10–15 m/min |
| 7 |
Cutter blade material |
Cr12MoV |
| 8 |
Roller shaft diameter |
Φ70 mm |
| 9 |
Total weight |
Approx. 4500 kg |
| 10 |
Main frame structure |
350 mm H‑beam |
| 11 |
Side‑plate thickness |
16 mm |
| 12 |
Processing accuracy |
Within ±1.0 mm |
| 13 |

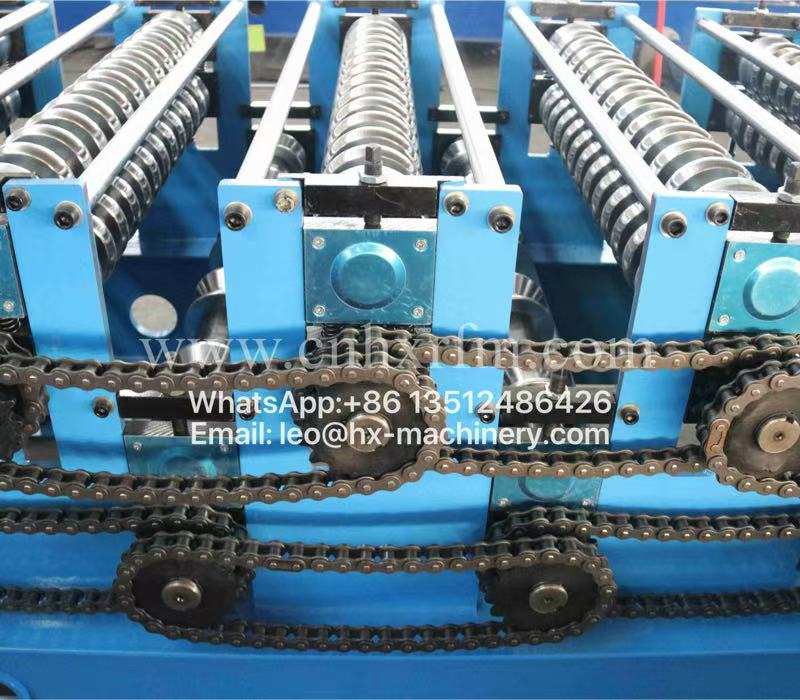

Chain & sprocket size |
1‑inch |
| 14 |
Voltage |
380V 50Hz three‑phase or as per customer’s requirement |
| 15 |
Control system |
PLC |
| 16 |
Frequency converter |
Domestic brand |
| 17 |
Roller material |
45# forged steel with chrome‑plated surface |
| 18 |
Length tolerance |
±2 mm |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
