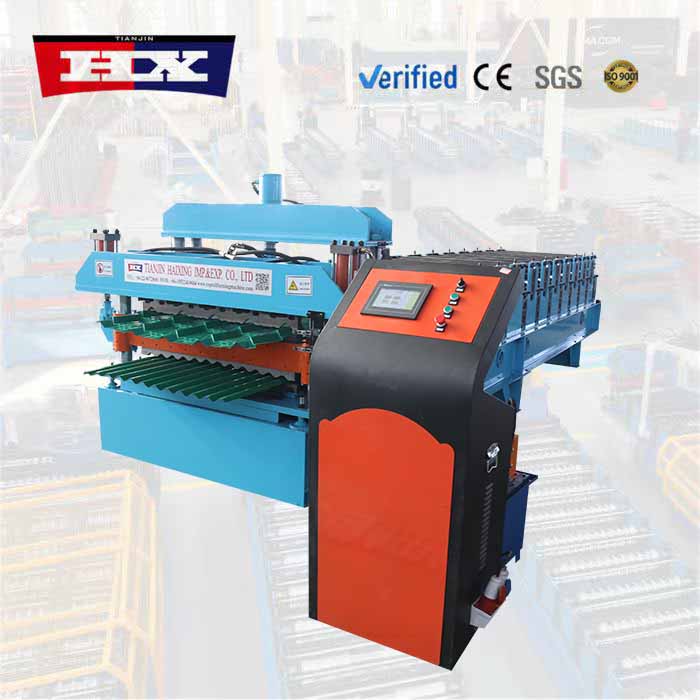

Model: HX-ibr roll forming machine
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com

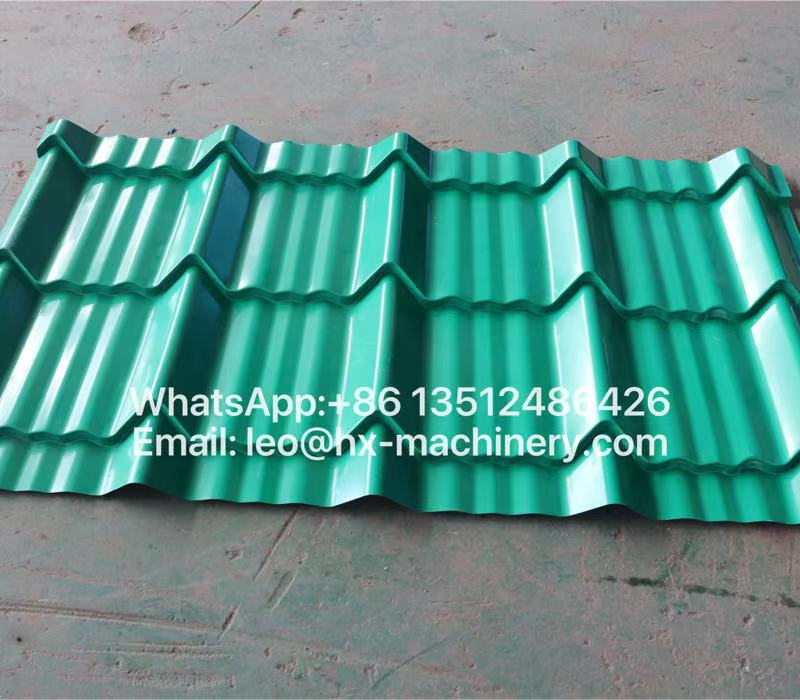

For over 20 years, Haixing Industrial Group Co., Ltd. has specialized in delivering dependable ibr roll forming machine solutions to the global construction industry—equipping roofing manufacturers with the tools they need to produce strong, durable, and aesthetically consistent IBR panels.

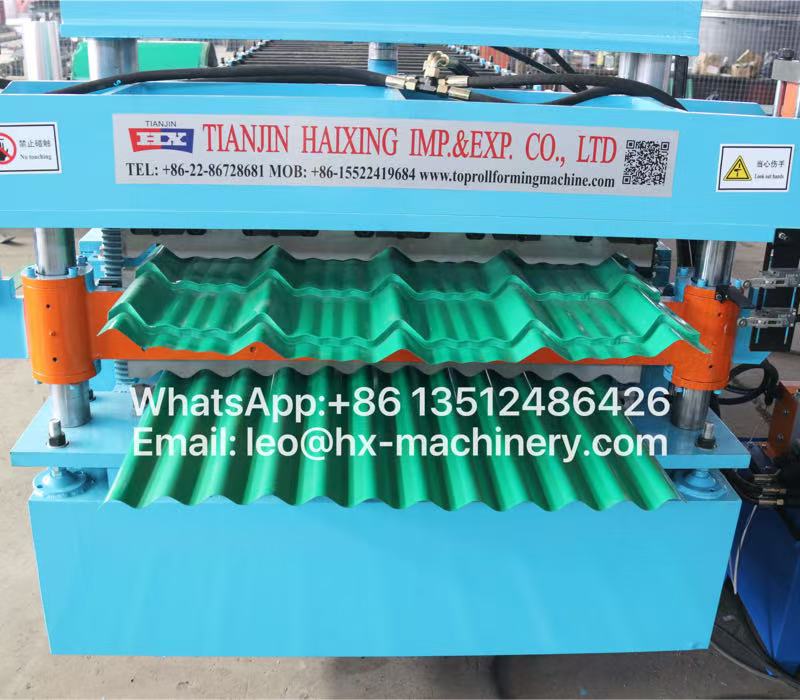

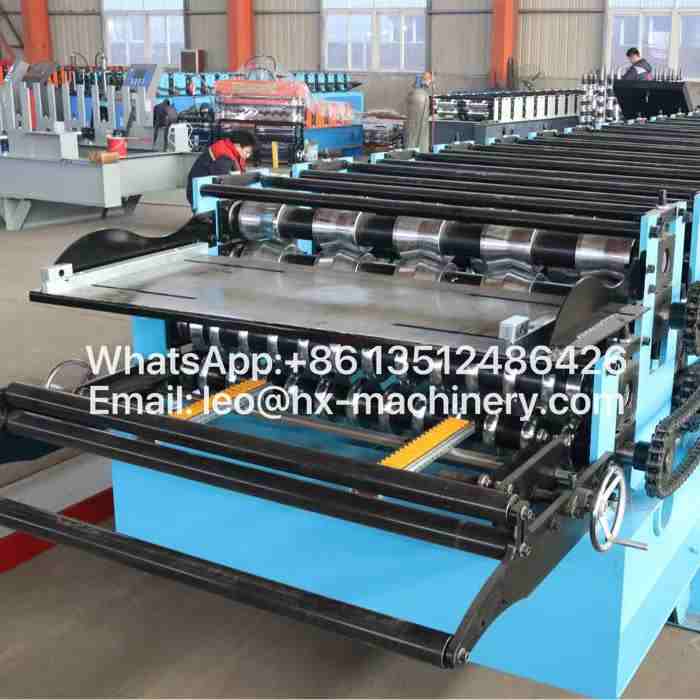

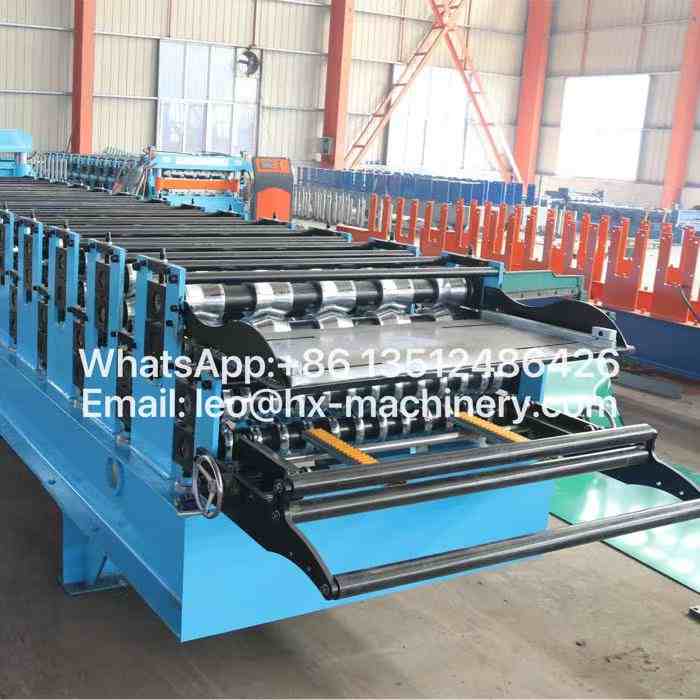

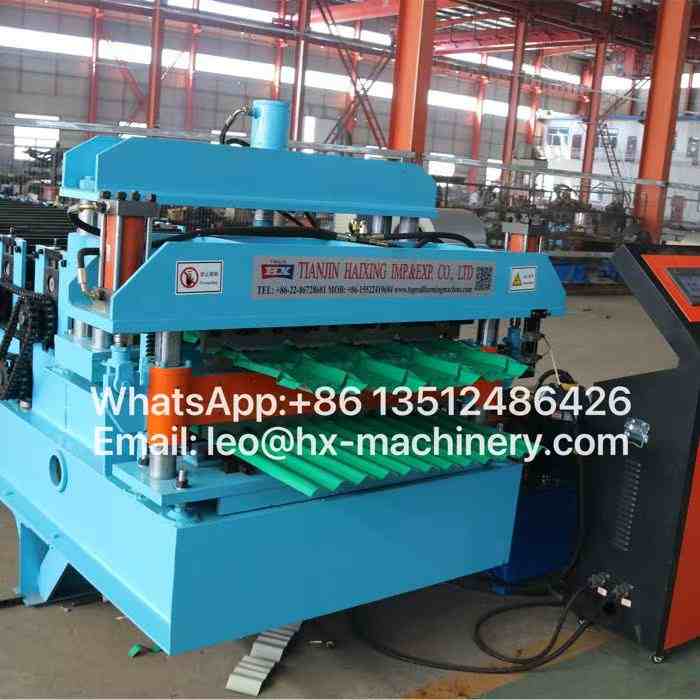

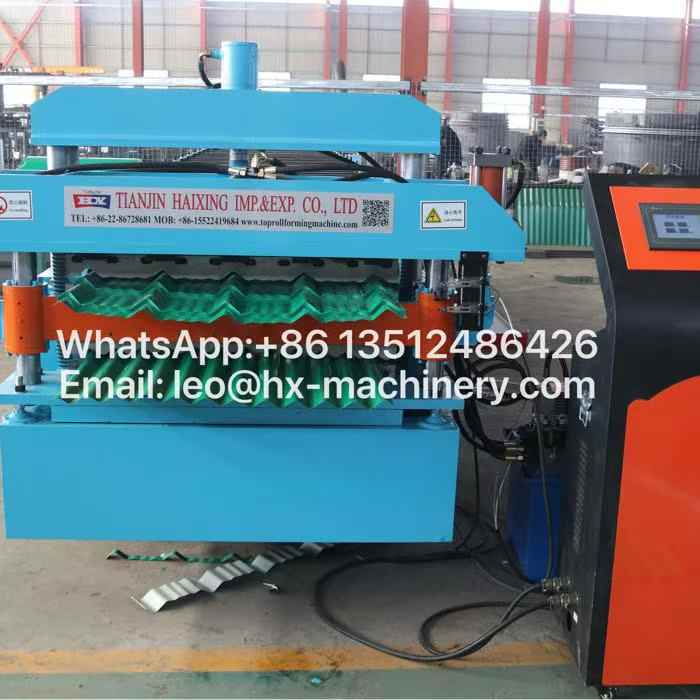

Our ibr roll forming machine features a precision-engineered multi-stage forming process that gradually shapes flat coil into the distinctive inverted box rib profile, ensuring material integrity without stress fractures or surface marring. The machine integrates a servo-driven feeding system, hydraulic punching stations, and a high-speed flying cutoff saw, all synchronized through an advanced PLC control that maintains tight tolerances even during prolonged production runs. It handles a broad range of material grades—from galvanized steel to pre-painted aluminum—and can be tailored to produce sheets from 2.5m to 12m in length.

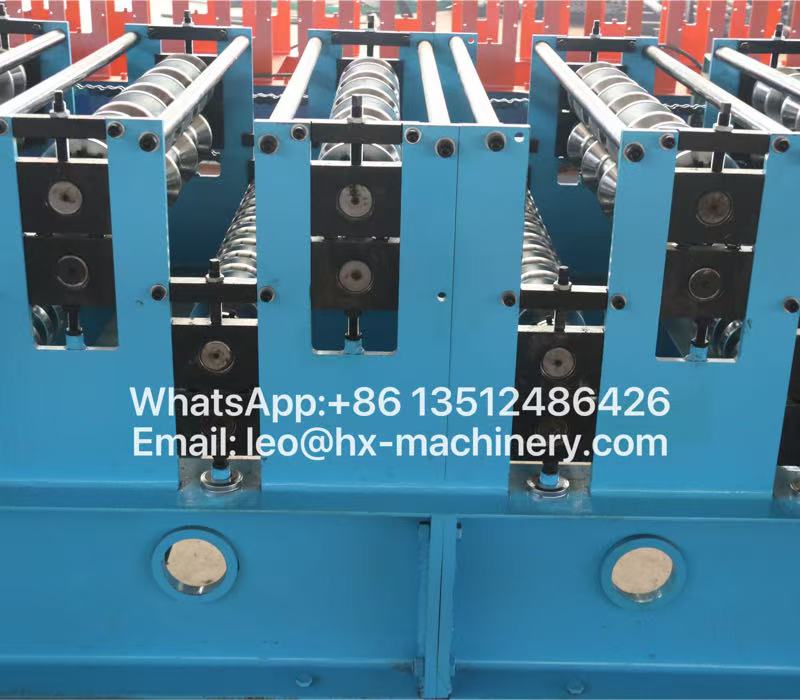

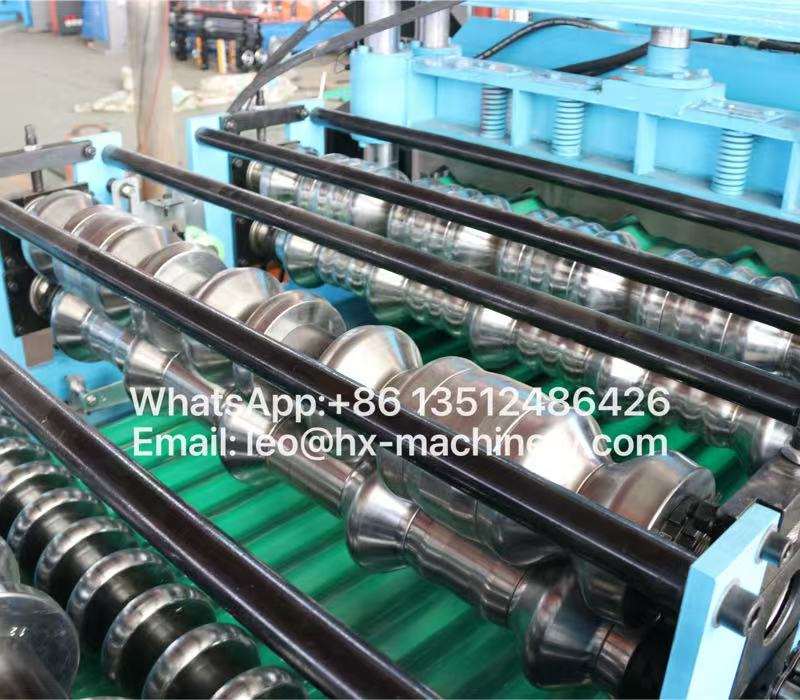

What makes our ibr roll forming machine a trusted choice in markets such as Colombia, Ghana, India, and the UAE is its combination of high output speed, low energy consumption, and straightforward maintenance. The modular roller design allows quick replacement of individual stands, while the self-lubricating bushings reduce daily upkeep. Our customers frequently highlight the ease of integration with existing coil handling and stacking systems, as well as our factory support—from pre-shipping trial runs with customer-supplied material samples to on-site commissioning assistance via video link.

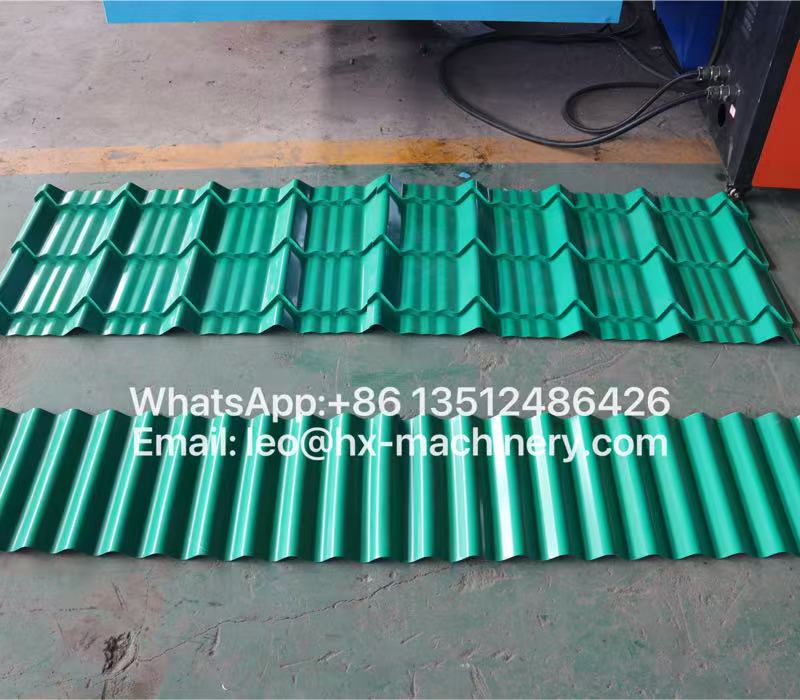

Below is the complete specification sheet for our ibr roll forming machine, along with profile cross-sections and a checklist of available customization features.
Machine parameters
| No. |
Ibr roll forming machine |
|
| 1 |
Number of rollers |
13 y 13 rollers |
| 2 |
Overall dimensions
|
6.2 × 1.6 × 1.8 m |
| 3 |
Main motor power |
5.5 kW |
| 4 |
Hydraulic motor power |
4 kW |
| 5 |
Sheet thickness |
0.3–0.8 mm |
| 6 |
Production speed |
10–15 m/min |
| 7 |
Cutter blade material |
Cr12MoV |
| 8 |
Roller shaft diameter |
Φ70 mm |
| 9 |
Total weight |
Approx. 4500 kg |
| 10 |
Main frame structure |
350 mm H‑beam |
| 11 |
Side‑plate thickness |
16 mm |
| 12 |
Processing accuracy |
Within ±1.0 mm |
| 13 |
Chain & sprocket size |
1‑inch |
| 14 |
Voltage |
380V 50Hz three‑phase or as per customer’s requirement |
| 15 |
Control system |
PLC |
| 16 |
Frequency converter |
Domestic brand |
| 17 |
Roller material |
45# forged steel with chrome‑plated surface |
| 18 |
Length tolerance |
±2 mm |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
Clients Showing
