Model: HX-tile roll forming machine
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com
With over 20 years of innovation in metal forming technology, Haixing Industrial Group Co., Ltd. delivers a premium tile roll forming machine that produces aesthetically pleasing and structurally sound roof tiles—ideal for residential, commercial, and heritage-style building projects worldwide.

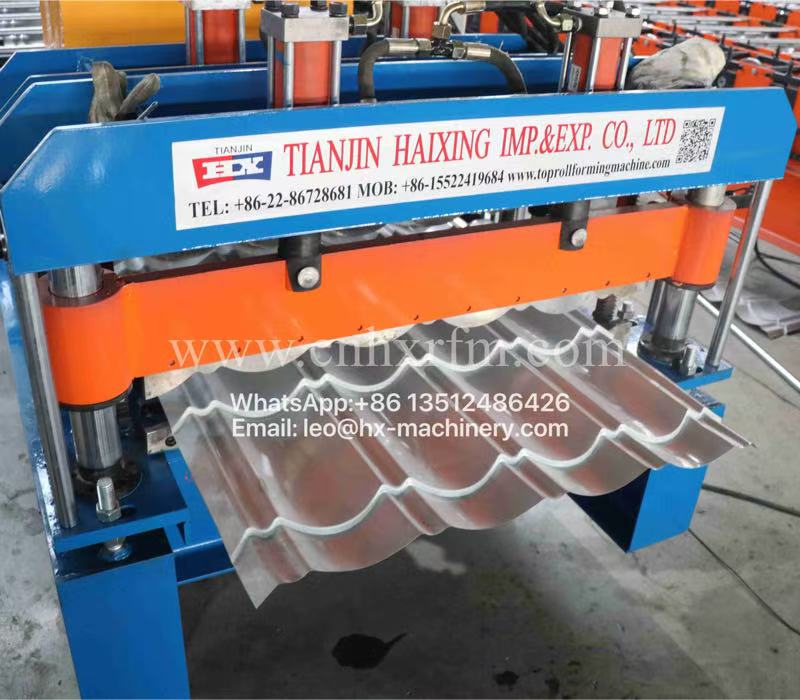

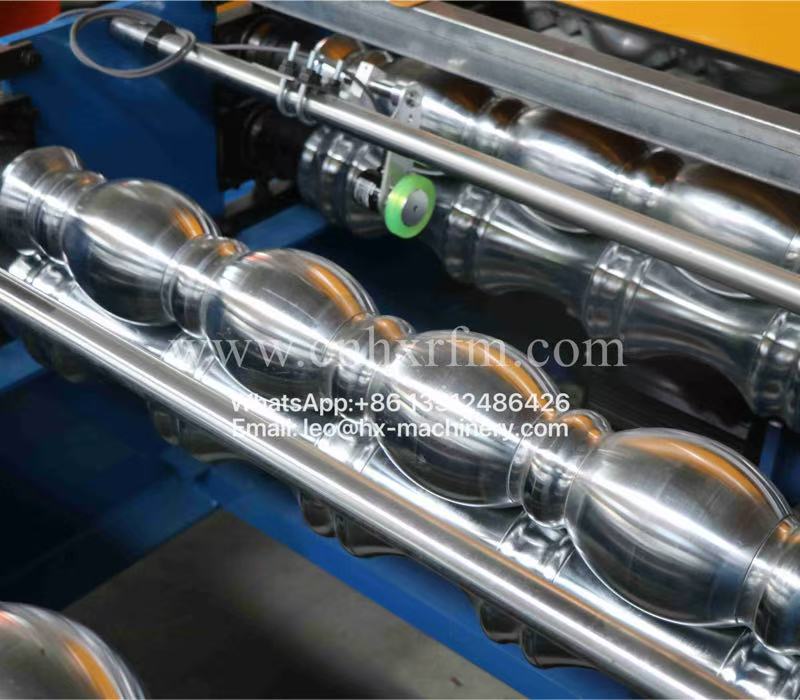

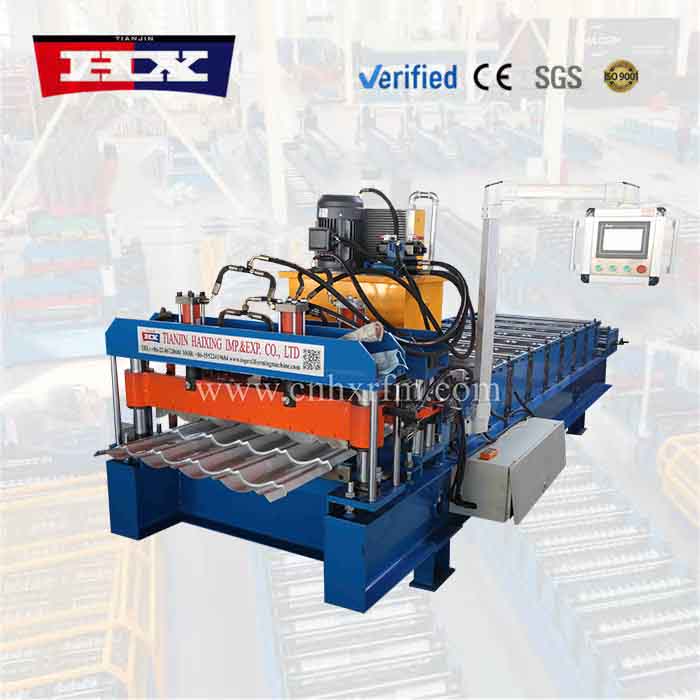

Our tile roll forming machine features a precision-engineered multi-stage forming system that creates detailed tile profiles, including classic Roman, Spanish, and flat interlocking designs, with consistent shape and depth across every sheet. It processes galvanized, pre-painted, and aluminum coils in thicknesses from 0.3mm to 0.7mm, and includes a hydraulic cutting unit with flying shear capability for accurate length control. Additional features such as embossing rollers for textured finishes, automatic stacking systems, and hole-punching units can be integrated to match specific architectural requirements.
What makes this tile roll forming machine a preferred solution in markets across Europe, Latin America, and Southeast Asia is its ability to combine traditional tile aesthetics with the durability and cost-efficiency of modern metal roofing. Users consistently note the machine's stable operation at speeds of 10–15 meters per minute, quick die changeover for different tile styles, and minimal maintenance needs thanks to its hardened roller construction. We support every installation with detailed manuals, remote commissioning assistance, and a readily available spare parts inventory to ensure uninterrupted production.

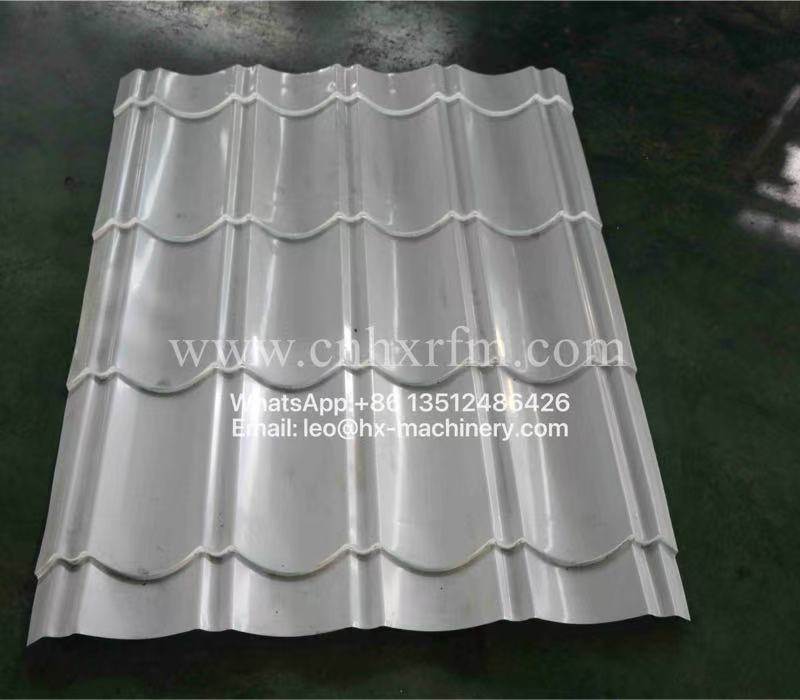

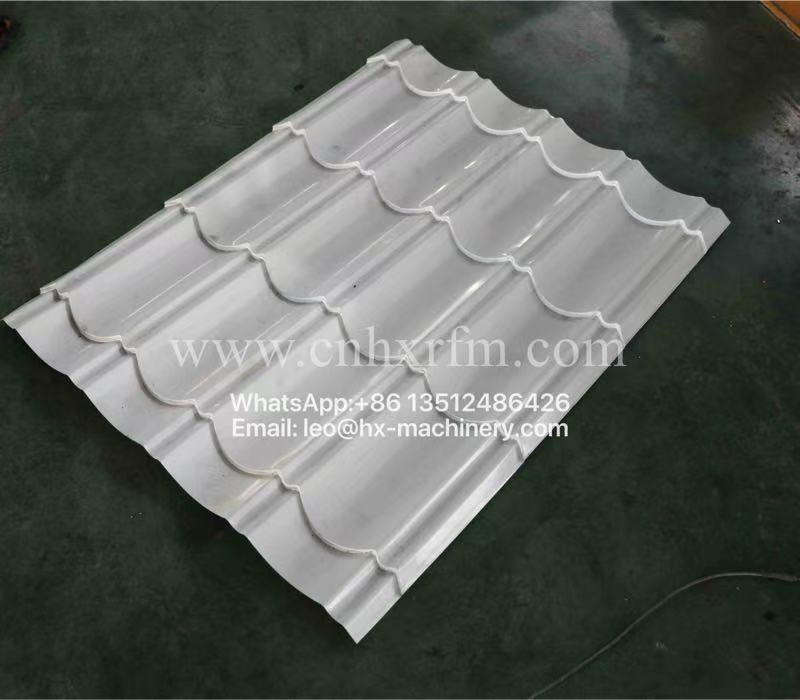

Below are the complete technical specifications of this tile roll forming machine, along with sample profile drawings and configuration options.
Machine parameters
| No. |
Tile roll forming machine |
|
| 1 |
Number of rollers |
13 rollers |
| 2 |
Overall dimensions
|
6.2 × 1.6 × 1.8 m |
| 3 |
Main motor power |
5.5 kW |
| 4 |
Hydraulic motor power |
4 kW |
| 5 |
Sheet thickness |
0.3–0.8 mm |
| 6 |
Production speed |
10–15 m/min |
| 7 |
Cutter blade material |
Cr12MoV |
| 8 |
Roller shaft diameter |
Φ70 mm |
| 9 |
Total weight |
Approx. 4500 kg |
| 10 |
Main frame structure |
350 mm H‑beam |
| 11 |
Side‑plate thickness |
16 mm |
| 12 |
Processing accuracy |
Within ±1.0 mm |
| 13 |
Chain & sprocket size |
1‑inch |
| 14 |
Voltage |
380V 50Hz three‑phase or as per customer’s requirement |
| 15 |
Control system |
PLC |
| 16 |
Frequency converter |
Domestic brand |
| 17 |
Roller material |
45# forged steel with chrome‑plated surface |
| 18 |
Length tolerance |
±2 mm |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
