Model: HX-glazed tile roll forming
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com

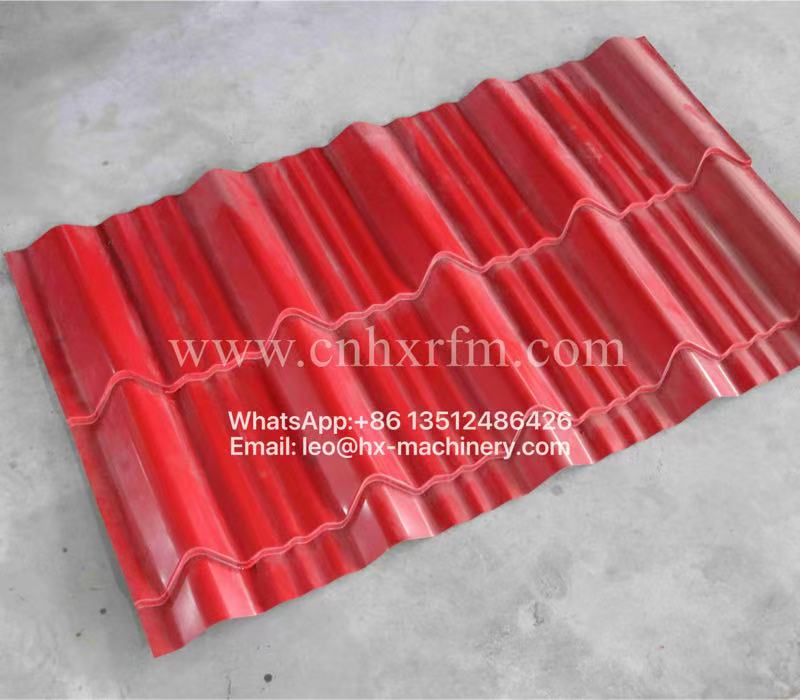

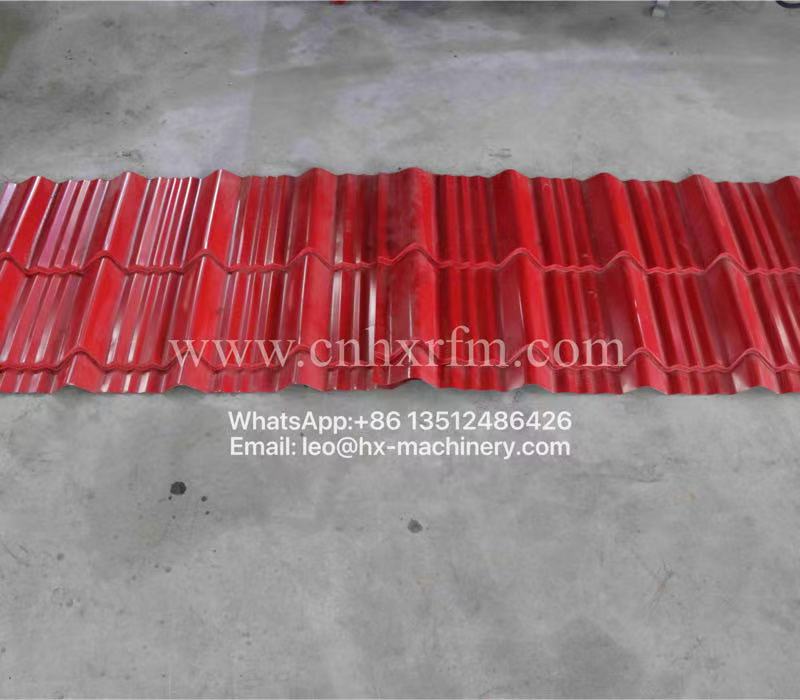

With over 20 years of specialized experience in the roll forming industry, Haixing Industrial Group Co., Ltd. offers a premium glazed tile roll forming machine that produces visually striking, high-performance roof tiles—combining the timeless elegance of traditional clay tiles with the strength and longevity of modern steel.

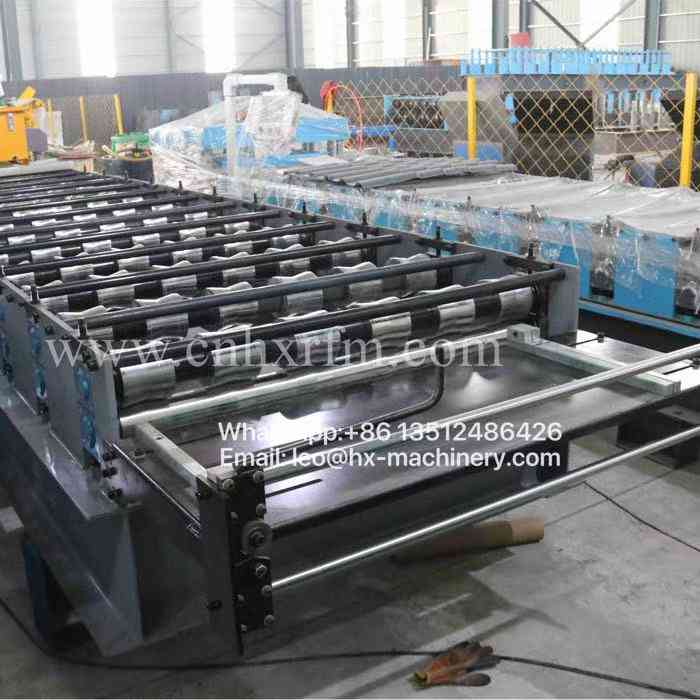

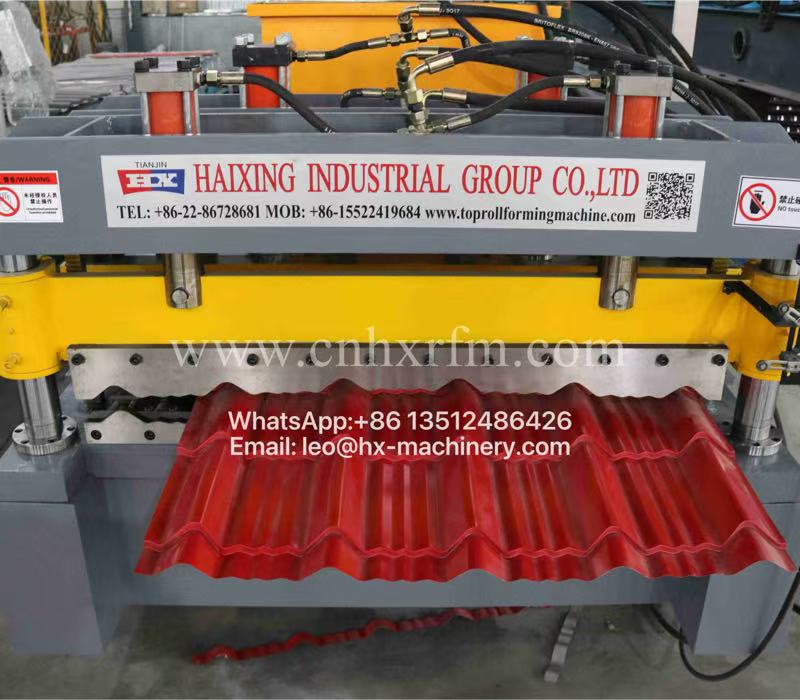

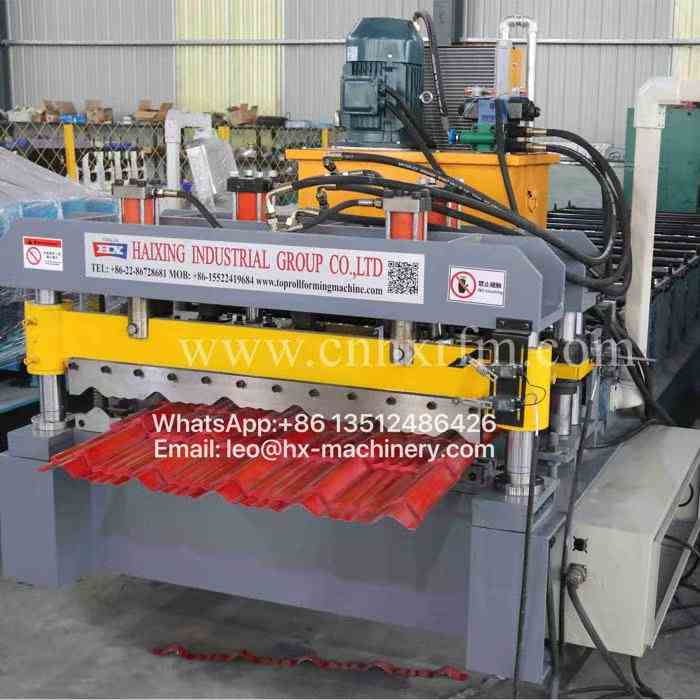

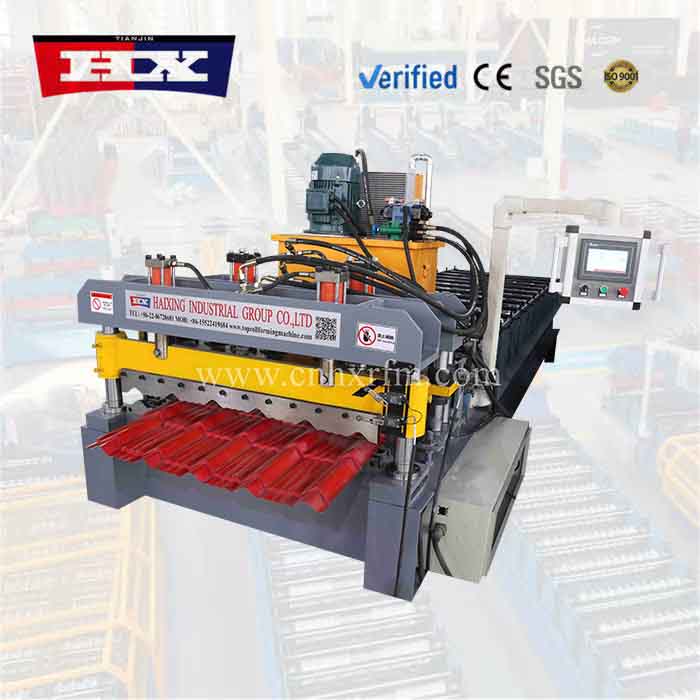

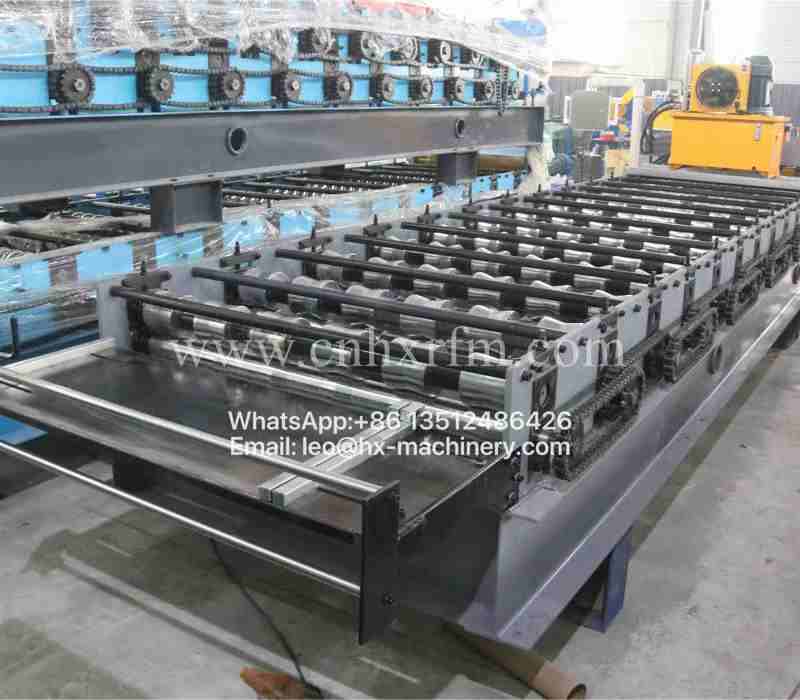

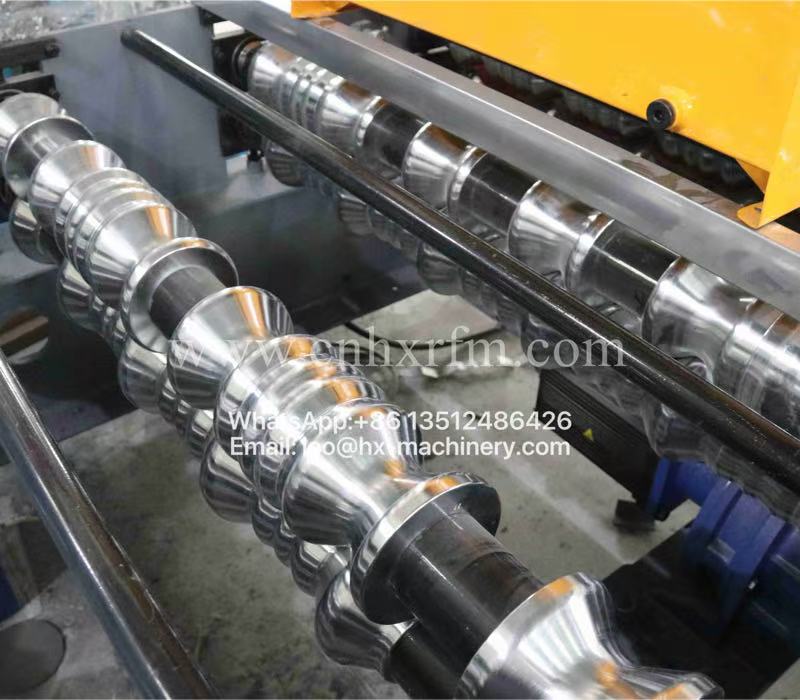

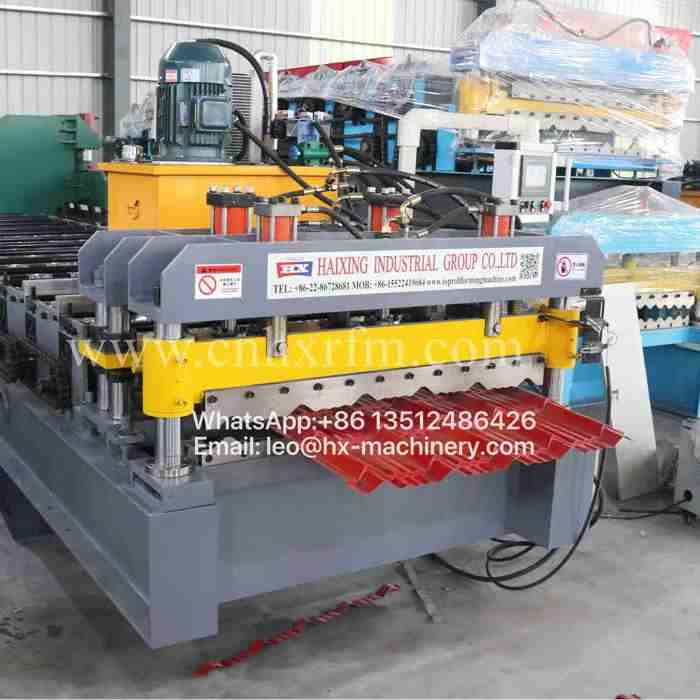

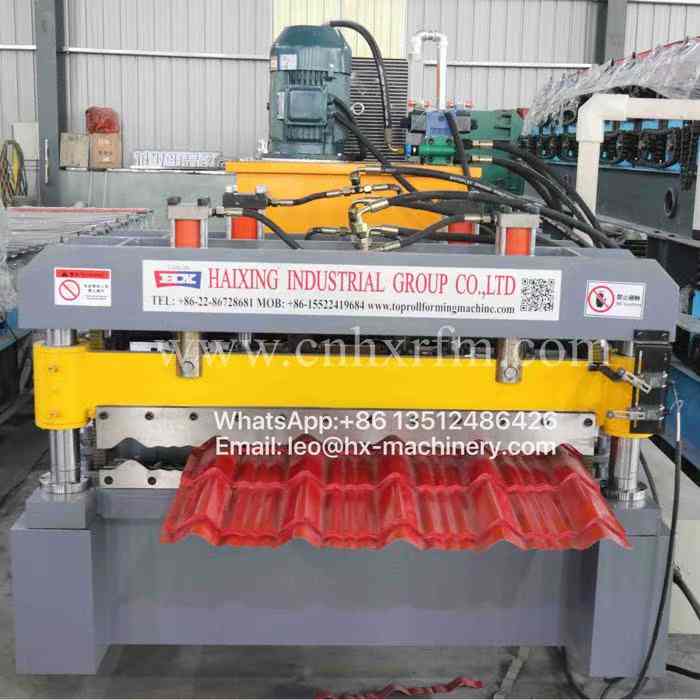

Our glazed tile roll forming machine is engineered to form detailed, curved profiles that replicate the distinctive look of glazed ceramic tiles, featuring precision roller stations that create consistent tile contours, smooth edges, and uniform surface texture. It handles a wide range of coil materials—including galvanized steel, pre-painted steel, and aluminum—with thicknesses from 0.3mm to 0.7mm. The machine integrates hydraulic cutting, automatic length control, and optional embossing units to produce textured finishes that enhance both aesthetic appeal and structural rigidity.
What sets this glazed tile roll forming machine apart in markets across Southeast Asia, the Middle East, and Europe is its ability to deliver high output without compromising on detail—operating at speeds of 8–12 meters per minute while maintaining tight tolerances on curve radius and overlap dimensions. Customers consistently highlight the machine’s user-friendly PLC interface, which allows quick switching between different tile profiles, as well as its low maintenance design and robust construction that ensures years of reliable service. We back each machine with comprehensive documentation, remote commissioning support, and a readily available supply of wear parts.
Below you will find the full technical specifications and optional configurations for our glazed tile roll forming machine.
Machine parameters
| No. |
Glazed tile roll forming machine |
|
| 1 |
Number of rollers |
13 rollers |
| 2 |
Overall dimensions
|
6.2 × 1.6 × 1.8 m |
| 3 |
Main motor power |
5.5 kW |
| 4 |
Hydraulic motor power |
4 kW |
| 5 |
Sheet thickness |
0.3–0.8 mm |
| 6 |
Production speed |
10–15 m/min |
| 7 |
Cutter blade material |
Cr12MoV |
| 8 |
Roller shaft diameter |
Φ70 mm |
| 9 |
Total weight |
Approx. 4500 kg |
| 10 |
Main frame structure |
350 mm H‑beam |
| 11 |
Side‑plate thickness |
16 mm |
| 12 |
Processing accuracy |
Within ±1.0 mm |
| 13 |
Chain & sprocket size |
1‑inch |
| 14 |
Voltage |
380V 50Hz three‑phase or as per customer’s requirement |
| 15 |
Control system |
PLC |
| 16 |
Frequency converter |
Domestic brand |
| 17 |
Roller material |
45# forged steel with chrome‑plated surface |
| 18 |
Length tolerance |
±2 mm |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
