Model: HX-ROOF
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: lily@hx-machinery.com

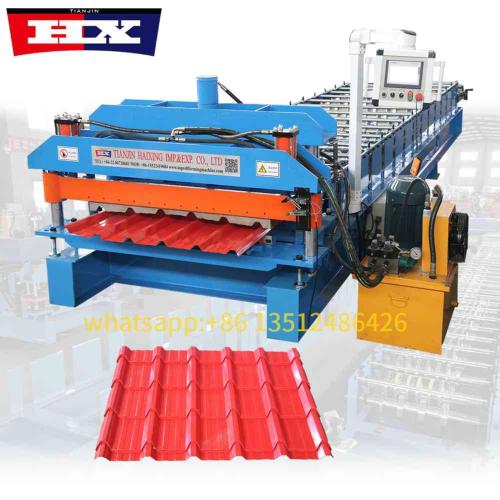

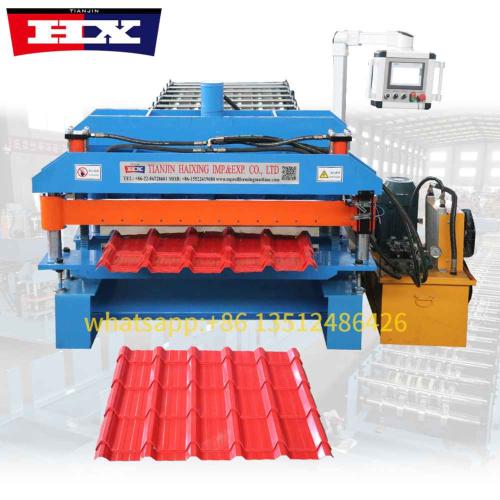

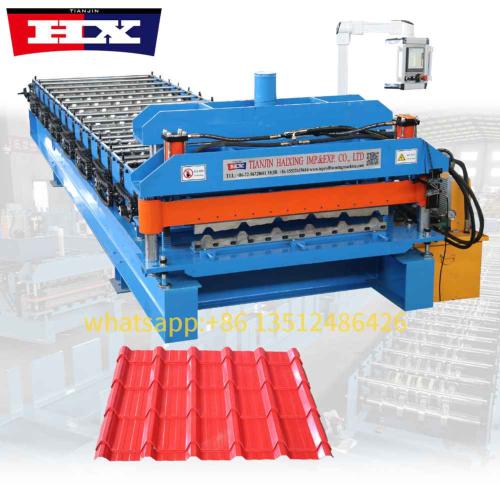

For over 20 years, Haixing Industrial Group Co., Ltd. , has been devoted to producing quality roll forming equipment. This particular unit is a Metal roofing machine, intended for manufacturing trapezoidal roof panels efficiently.
We offer design modifications according to your project. It is well received in South Africa, Cameroon, Zimbabwe, and Burkina Faso.

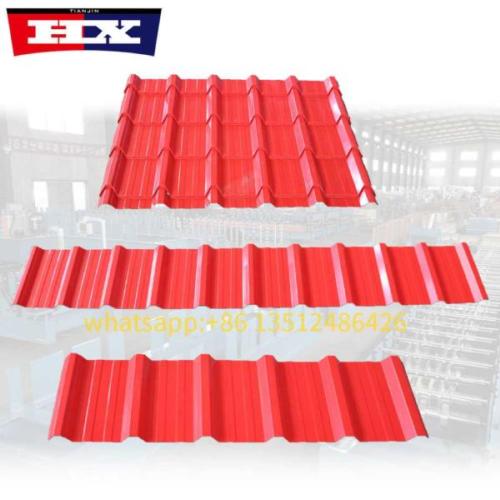

Find below the data of Metal roofing machine and trapezoidal sheet size information.
Machine parameters
| No. |
Metal roofing machine |
|
| 1 |
Suitable to process |
GI, GL, PPGI, PPGL |
| 2 |
Dimensions |
8.7*1.6*1.7m |
| 3 |
Weight |
About 5T |
| 4 |
Main structure of the machine |
350mm H-Beam |
| 5 |
Side panel of machine |
16 mm |
| 6 |
Thickness of the raw material |
0.3-0.8mm |
| 7 |
Width of the raw material |
Max Material Width:1220 mm |
| 8 |
Drive mode |
Chain Wheel and Cycle Chain; Thickness:1 Inch |
| 9 |
Productivity speed |
10-15m/min |
| 10 |
Rollers stations |
13 rows |
| 11 |
Rolling materials |
45# forging steel with chromium plate |
| 12 |
Diameter of the shaft |
Φ70mm (Solid shaft) |
| 13 |
Motor Power |
5.5 KW |
| 14 |
Pump Station Motor |
4 KW |
| 15 |
Material of the cutting blade |
Cr12,Quenched treatment 58℃-60℃ |
| 16 |
Control system |
PLC control |
| 17 |
Touch screen |
The touch screen 360 degrees |
| 18 |
Voltage |
380V three-phase power |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
