Model: HX-ibr sheet making machine
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com
With over 20 years of manufacturing excellence, Haixing Industrial Group Co., Ltd. presents a reliable ibr sheet making machine that delivers consistent performance for roofing contractors, steel distributors, and prefab building manufacturers across the globe.

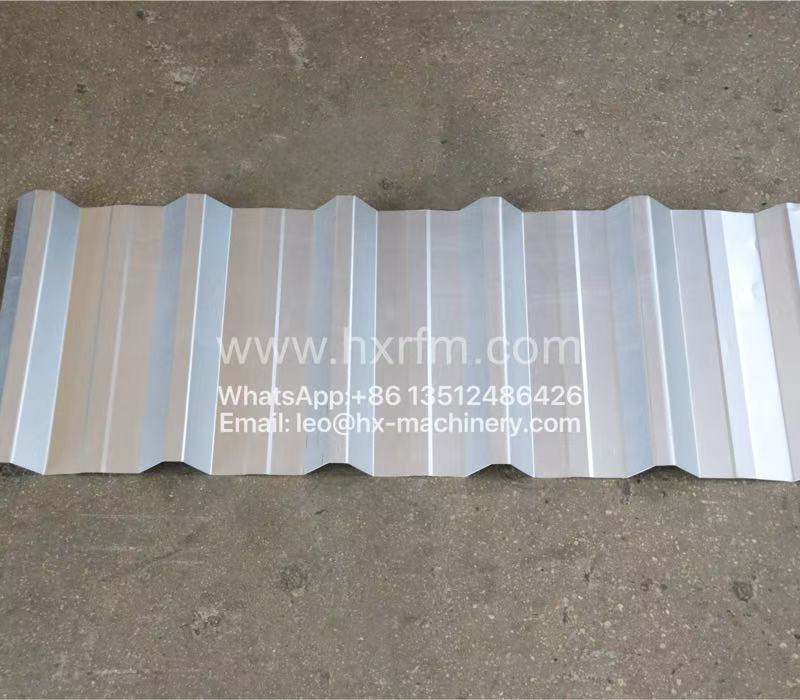

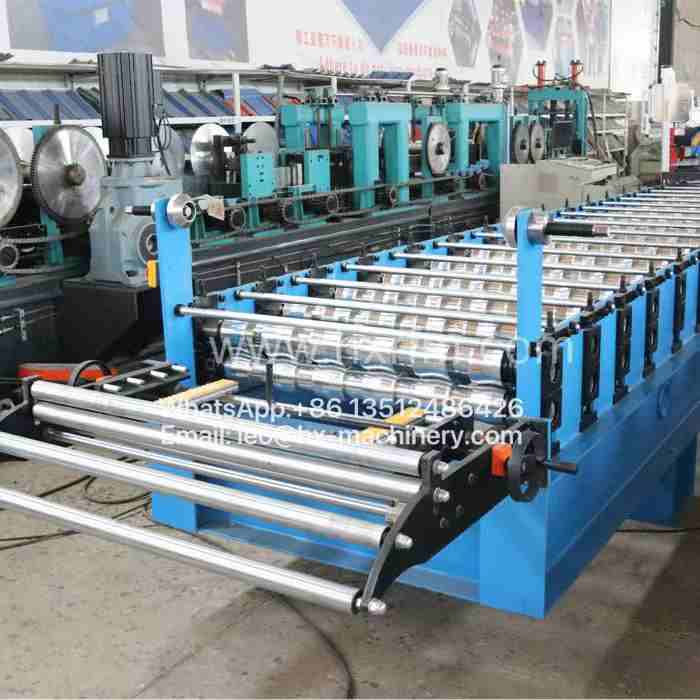

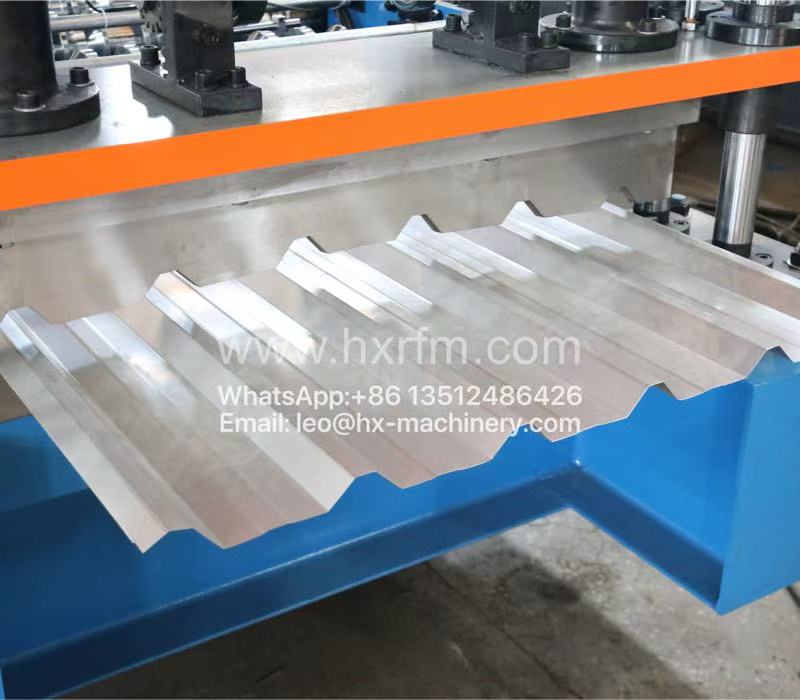

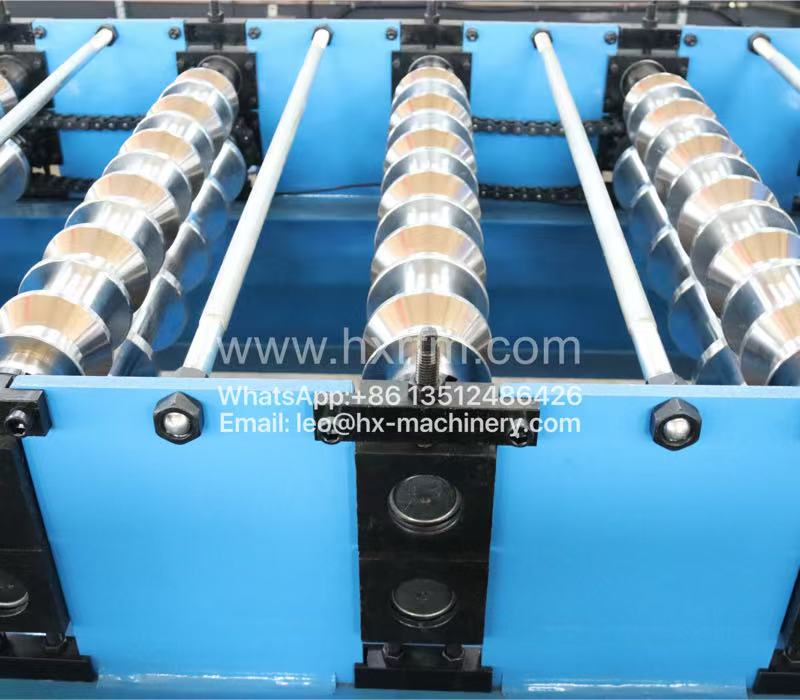

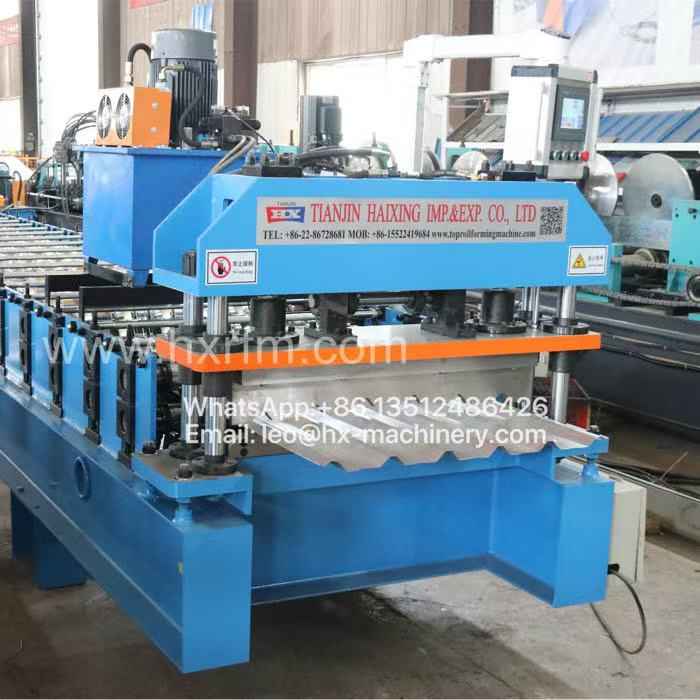

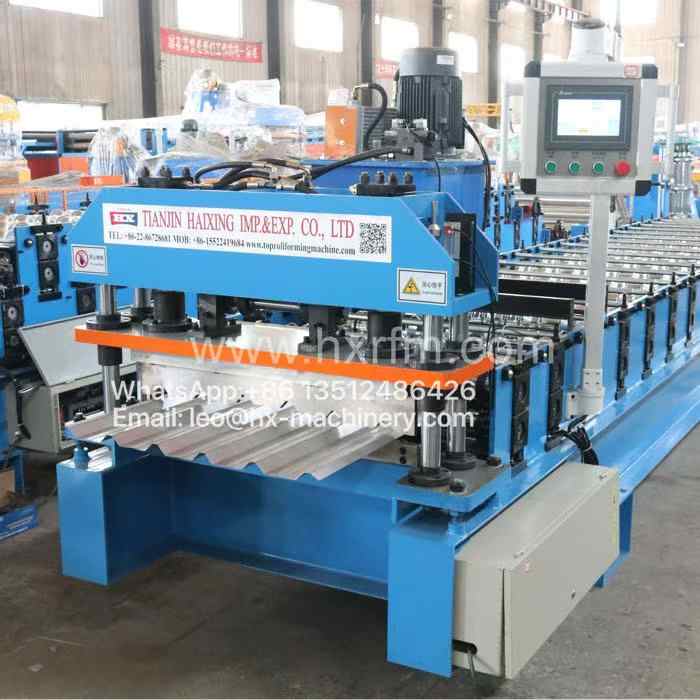

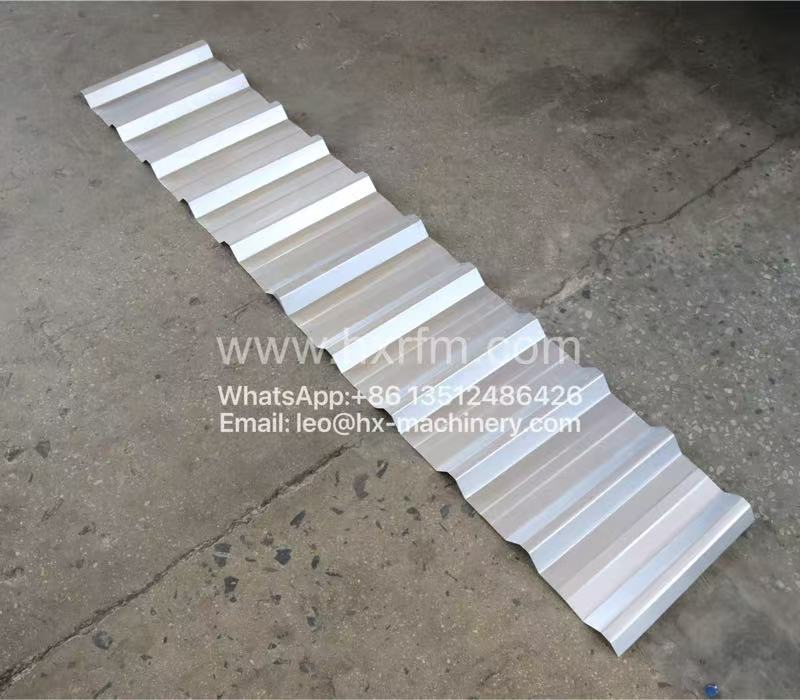

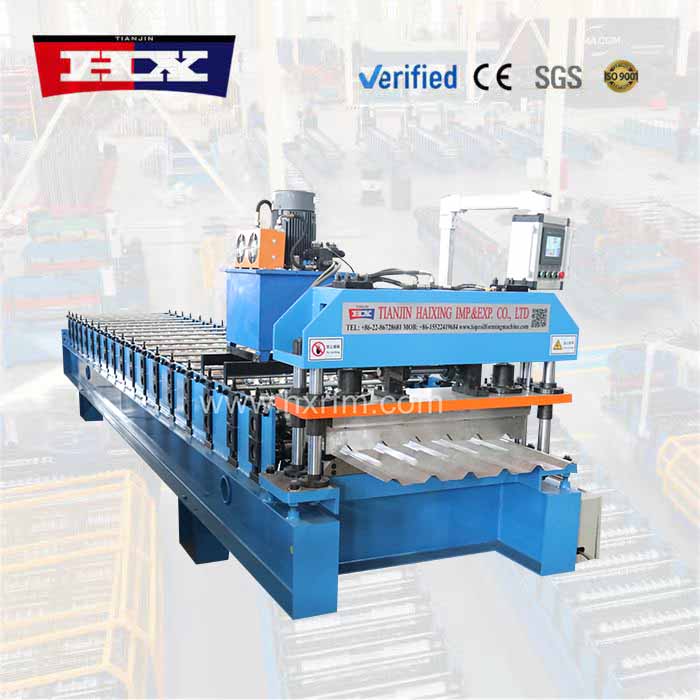

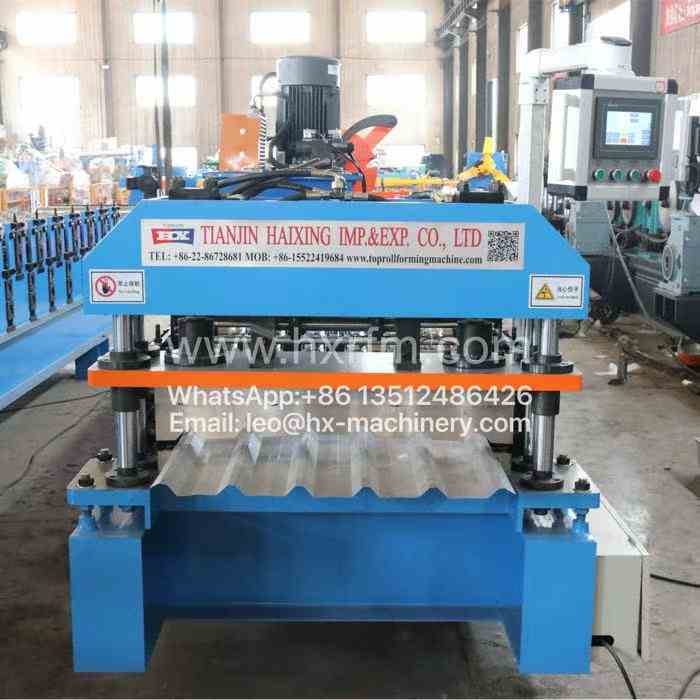

Our ibr sheet making machine is built around a rigid steel frame and precision-ground roller sets, ensuring each panel emerges with uniform rib height, straight edges, and a smooth surface finish. The hydraulic cutting system ensures burr-free edges, while the optional hole-punching unit allows for pre-drilled fastening points—saving time during installation.
What makes this ibr sheet making machine a favored choice in markets like Colombia, Kenya, Vietnam, and the Middle East is its straightforward design, low operational noise, and energy-efficient motor. Users report minimal material waste, fast changeovers between different sheet lengths, and consistent output quality even during extended production runs. We back every machine with detailed manuals, remote commissioning support, and a ready supply of wear parts to keep your line operating smoothly.
Below you will find the full technical specifications and available options for this ibr sheet making machine.
Machine parameters
| No. |
Ibr sheet making machine |
|
| 1 |
Number of rollers |
18 rollers |
| 2 |
Overall dimensions
|
8.7 × 1.6 × 1.8 m |
| 3 |
Main motor power |
5.5 kW |
| 4 |
Hydraulic motor power |
4 kW |
| 5 |
Sheet thickness |
0.3–0.8 mm |
| 6 |
Production speed |
10–15 m/min |
| 7 |
Cutter blade material |
Cr12MoV |
| 8 |
Roller shaft diameter |
Φ70 mm |
| 9 |
Total weight |
Approx. 4500 kg |
| 10 |
Main frame structure |
350 mm H‑beam |
| 11 |
Side‑plate thickness |
16 mm |
| 12 |
Processing accuracy |
Within ±1.0 mm |
| 13 |
Chain & sprocket size |
1‑inch |
| 14 |
Voltage |
380V 50Hz three‑phase or as per customer’s requirement |
| 15 |
Control system |
PLC |
| 16 |
Frequency converter |
Domestic brand |
| 17 |
Roller material |
45# forged steel with chrome‑plated surface |
| 18 |
Length tolerance |
±2 mm |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
Clients Showing
