Model: HX-ibr sheet making
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com
When evaluating ibr sheet making machine price, Haixing Industrial Group Co., Ltd. offers a transparent and competitive structure that reflects both our 20+ years of manufacturing heritage and our commitment to delivering long-term value—not just a competitive upfront quote.

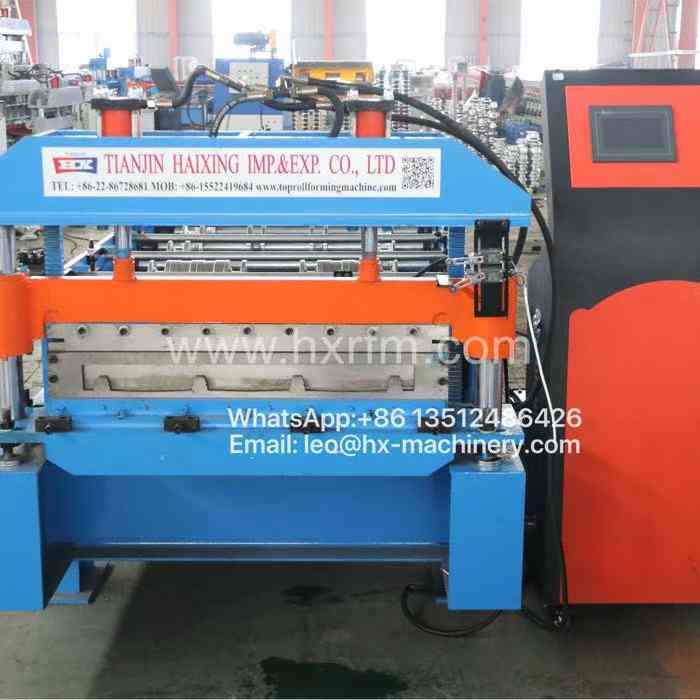

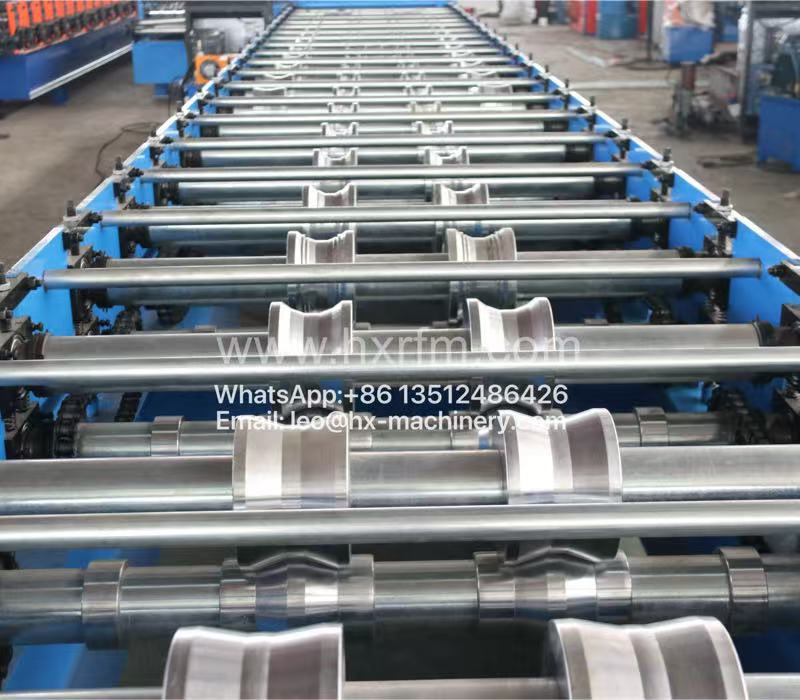

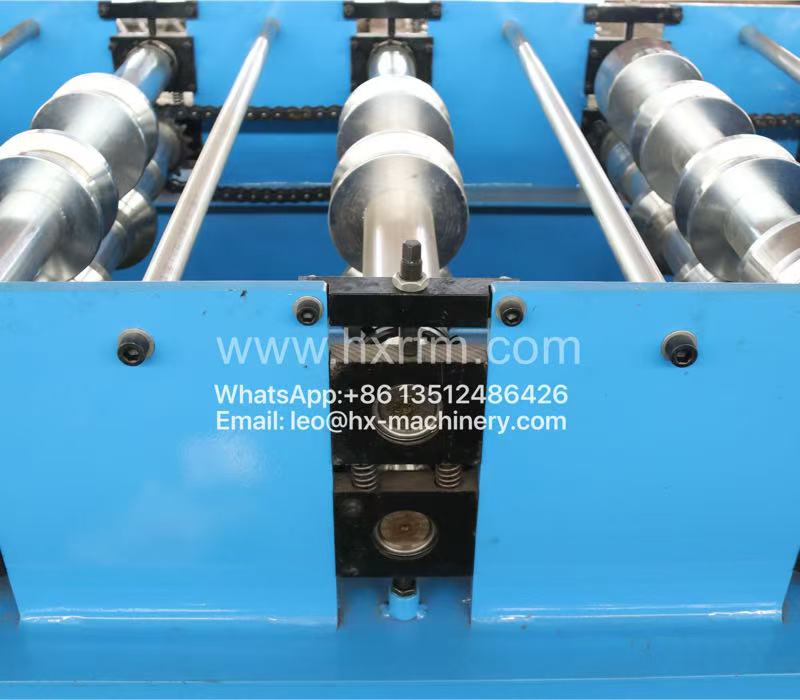

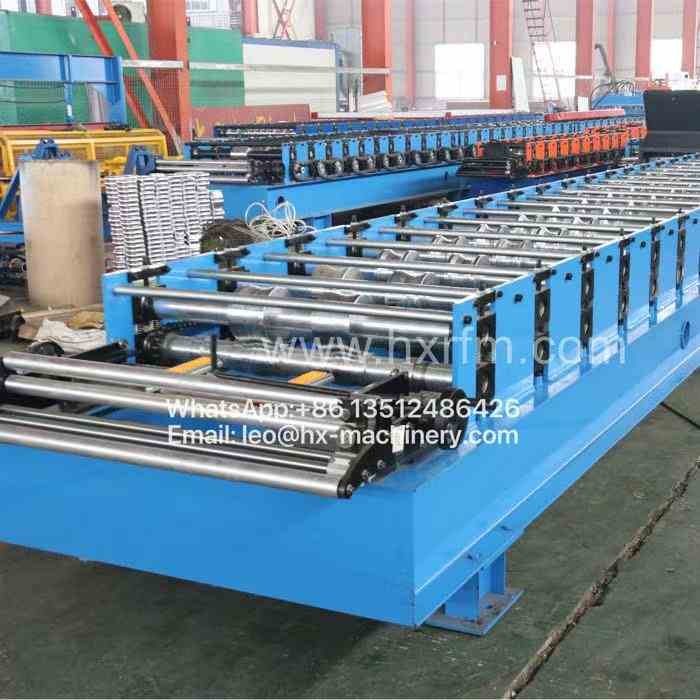

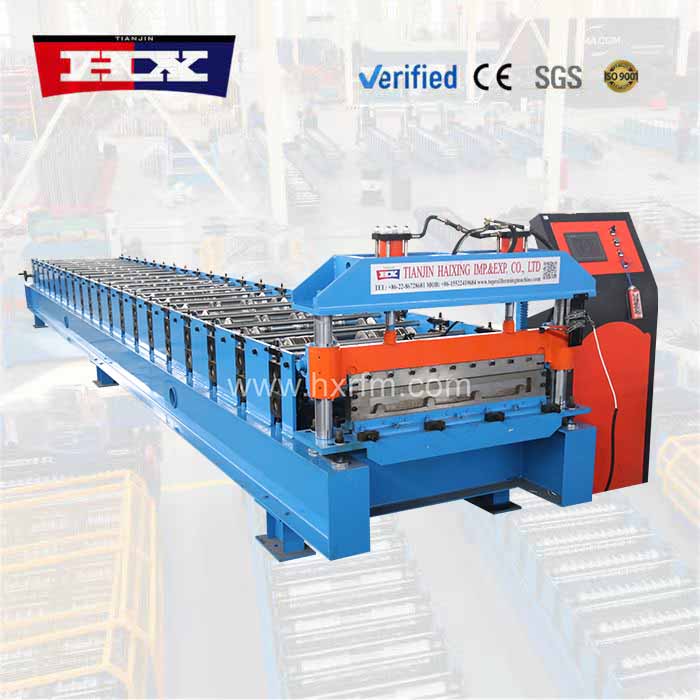

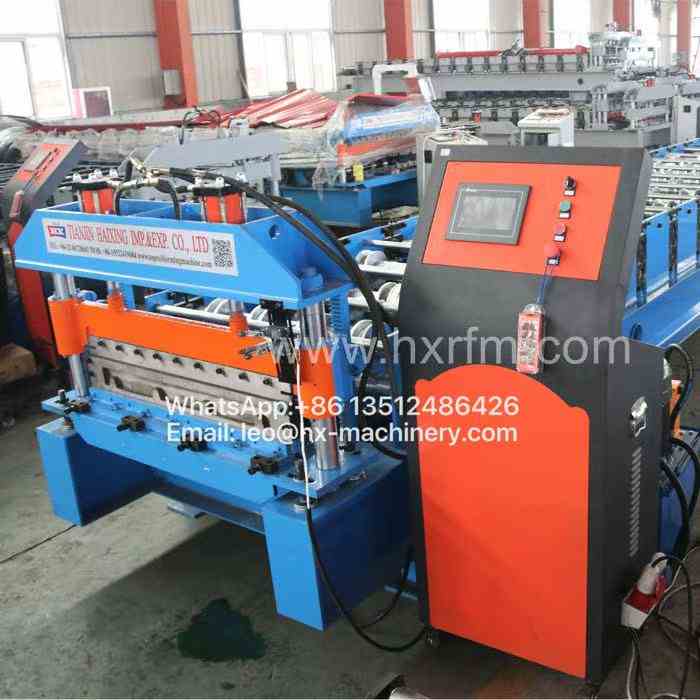

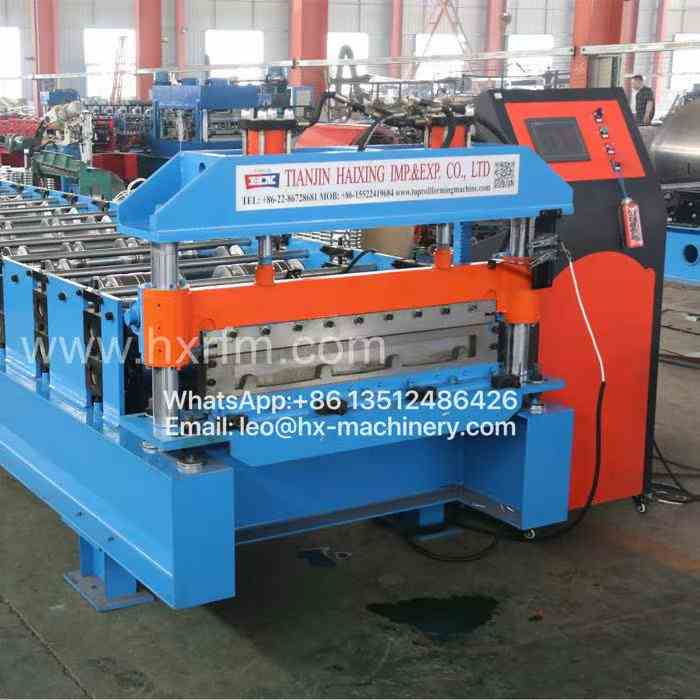

Our ibr sheet making machine price covers a complete production system, including a decoiler with manual or hydraulic expansion, 14 to 18 forming stations with hardened rollers, a hydraulic punching unit for hole or rib embossing, a flying cutoff saw, and a PLC control system with touchscreen interface. We provide a clear breakdown of base configuration costs versus optional upgrades—such as automatic stackers, coil carriages, and additional embossing rollers—so buyers can tailor the machine to their exact production needs without paying for unnecessary extras.
What makes our ibr sheet making machine price especially appealing to customers in Bangladesh, Nigeria, Peru, and the UAE is the inclusive after-sales package: on-site installation guidance, operational video manuals, a starter set of wear parts, and 12-month warranty coverage. Many clients report that the combination of competitive pricing, low energy consumption, and minimal maintenance costs results in a full return on investment within 12 to 18 months of operation. We also offer flexible shipping terms and container-loading optimization to help control freight expenses.
Below is a detailed price sheet for our ibr sheet making machine price, along with configuration options and a sample quotation for a typical production setup.
Machine parameters
| No. |
Ibr sheet making machine price |
|
| 1 |
Number of rollers |
18 rollers |
| 2 |
Overall dimensions
|
8.7 × 1.6 × 1.8 m |
| 3 |
Main motor power |
5.5 kW |
| 4 |
Hydraulic motor power |
4 kW |
| 5 |
Sheet thickness |
0.3–0.8 mm |
| 6 |
Production speed |
10–15 m/min |
| 7 |
Cutter blade material |
Cr12MoV |
| 8 |
Roller shaft diameter |
Φ70 mm |
| 9 |
Total weight |
Approx. 4500 kg |
| 10 |
Main frame structure |
350 mm H‑beam |
| 11 |
Side‑plate thickness |
16 mm |
| 12 |
Processing accuracy |
Within ±1.0 mm |
| 13 |
Chain & sprocket size |
1‑inch |
| 14 |
Voltage |
380V 50Hz three‑phase or as per customer’s requirement |
| 15 |
Control system |
PLC |
| 16 |
Frequency converter |
Domestic brand |
| 17 |
Roller material |
45# forged steel with chrome‑plated surface |
| 18 |
Length tolerance |
±2 mm |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
