Model: HX-ibr roof sheeting
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com

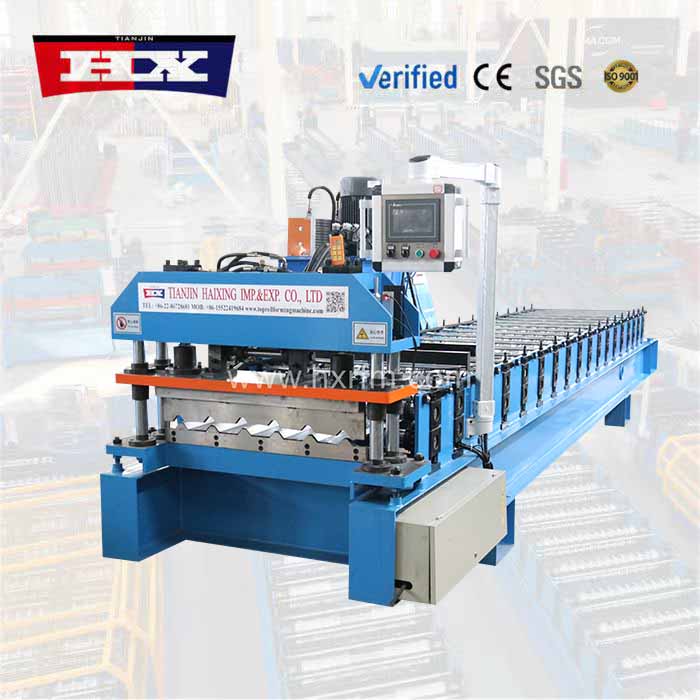

Haixing Industrial Group Co., Ltd. , backed by over 20 years of roll forming expertise, currently offers a high-quality ibr roof sheeting machine for sale that is engineered to deliver consistent, durable roofing panels for residential, commercial, and industrial construction projects worldwide.

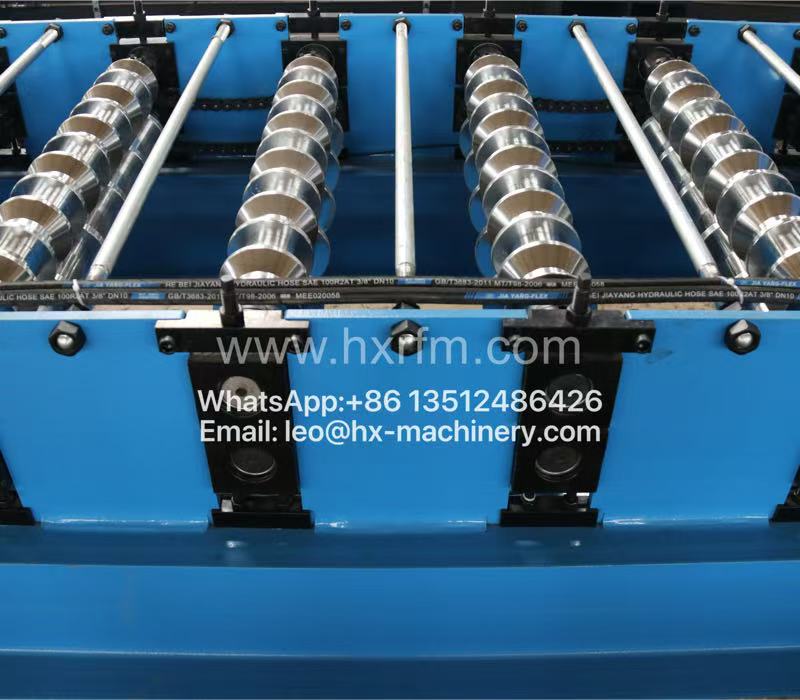

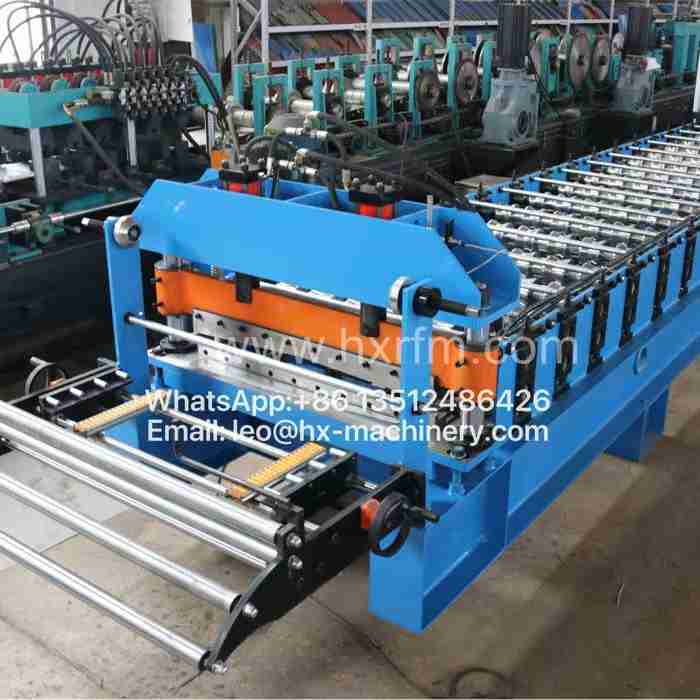

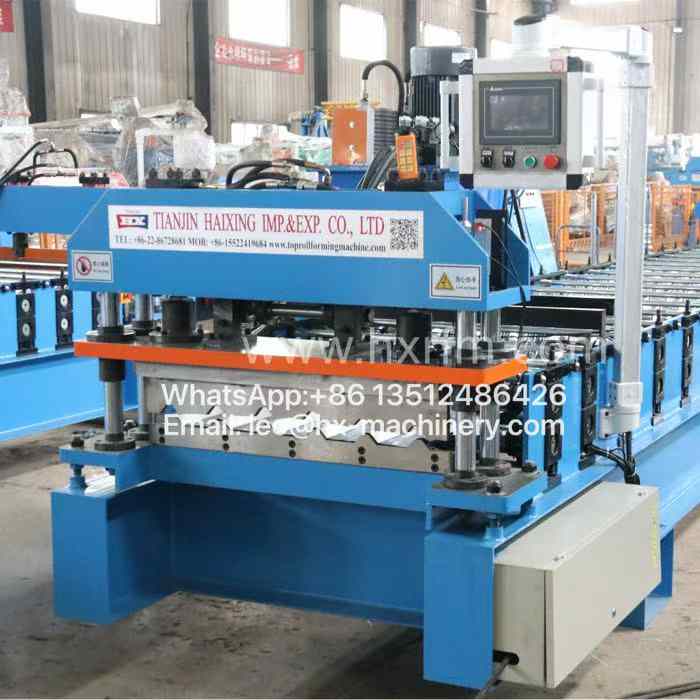

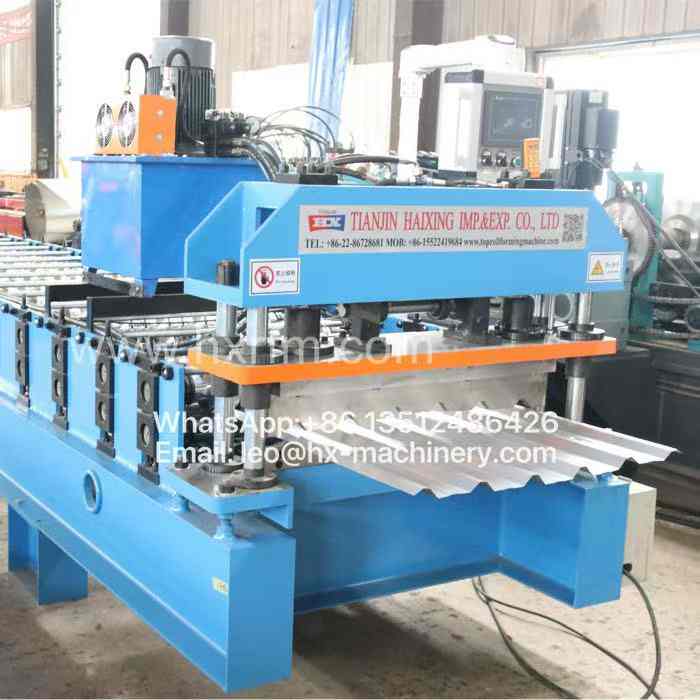

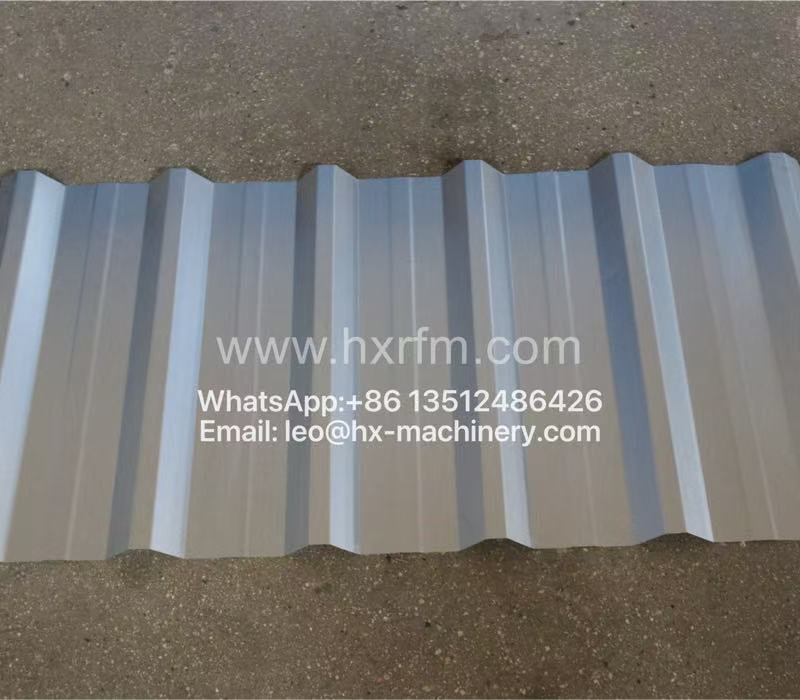

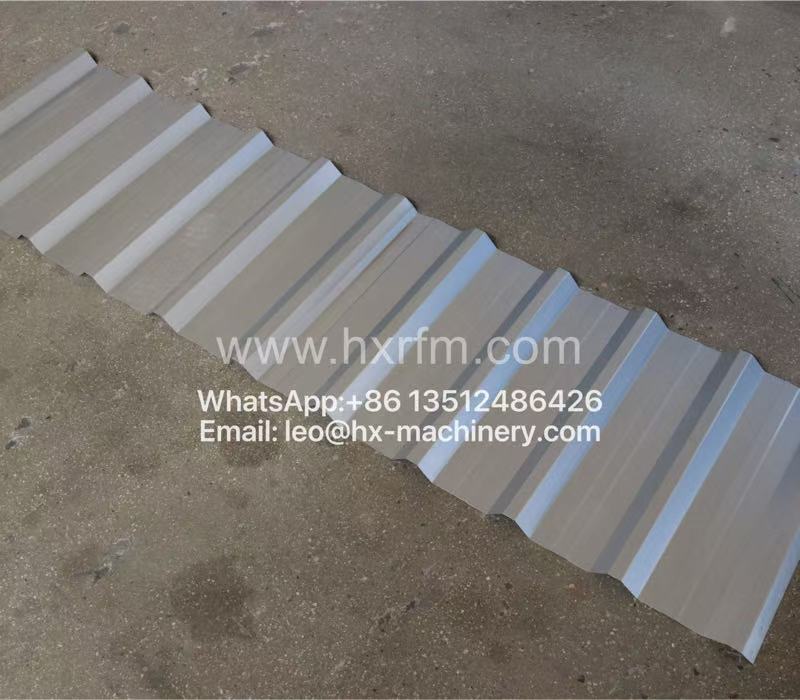

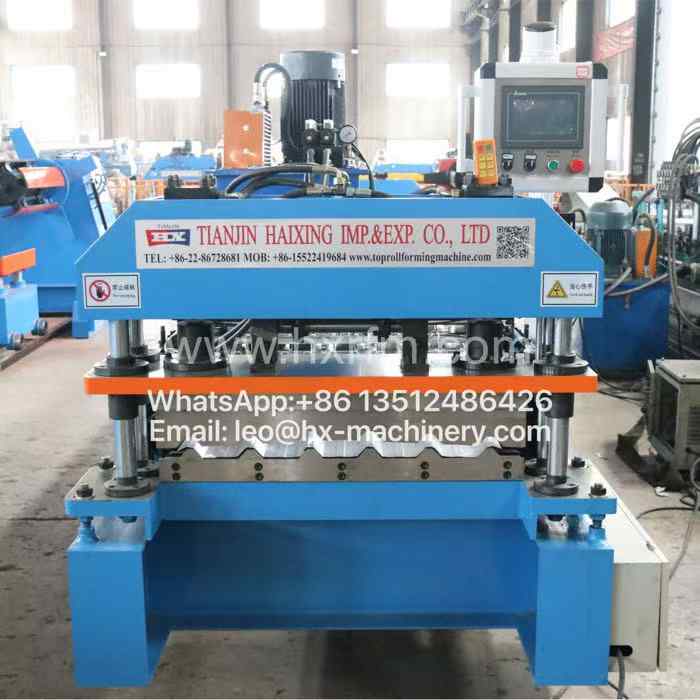

This ibr roof sheeting machine for sale features a robust forming system with 16 to 18 precision roller stations, a heavy-duty hydraulic cutting unit, and an advanced PLC controller that ensures accurate length control and hole punching. It processes galvanized, pre-painted, and corrugated steel coils with thicknesses ranging from 0.3mm to 0.8mm, producing standard IBR profiles with excellent flatness and rib definition. Customizations such as different wave patterns, embossing, and stacking systems are available to suit specific production needs.
What makes this ibr roof sheeting machine for sale particularly attractive to buyers in Latin America, Southeast Asia, and Africa is its competitive pricing, short delivery lead time, and comprehensive after-sales package—including installation guidance, video tutorials, and a full set of spare rollers. Customers frequently note that the machine's intuitive operation reduces training time, while its low maintenance design keeps downtime to a minimum, enabling them to meet tight project deadlines with confidence.
Below you will find the full technical specifications and pricing options for this ibr roof sheeting machine for sale, along with a list of available accessories.
Machine parameters
| No. |
Ibr roof sheeting machine for sale |
|
| 1 |

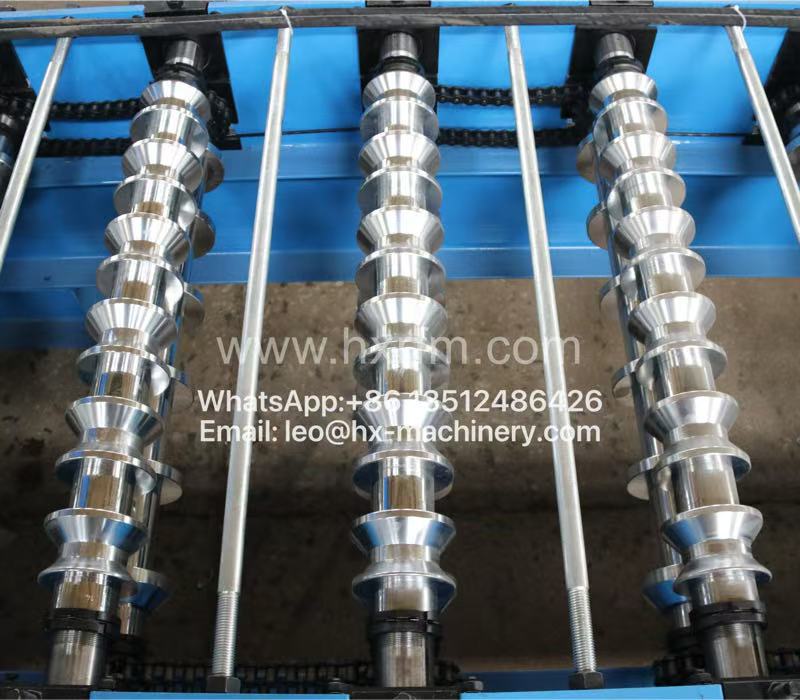

Number of rollers |
18 rollers |
| 2 |
Overall dimensions
|
8.7 × 1.6 × 1.8 m |
| 3 |
Main motor power |
5.5 kW |
| 4 |
Hydraulic motor power |
4 kW |
| 5 |
Sheet thickness |
0.3–0.8 mm |
| 6 |
Production speed |
10–15 m/min |
| 7 |
Cutter blade material |
Cr12MoV |
| 8 |
Roller shaft diameter |
Φ70 mm |
| 9 |
Total weight |
Approx. 4500 kg |
| 10 |
Main frame structure |
350 mm H‑beam |
| 11 |
Side‑plate thickness |
16 mm |
| 12 |
Processing accuracy |
Within ±1.0 mm |
| 13 |
Chain & sprocket size |
1‑inch |
| 14 |
Voltage |
380V 50Hz three‑phase or as per customer’s requirement |
| 15 |
Control system |
PLC |
| 16 |
Frequency converter |
Domestic brand |
| 17 |
Roller material |
45# forged steel with chrome‑plated surface |
| 18 |
Length tolerance |
±2 mm |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
Clients Showing
