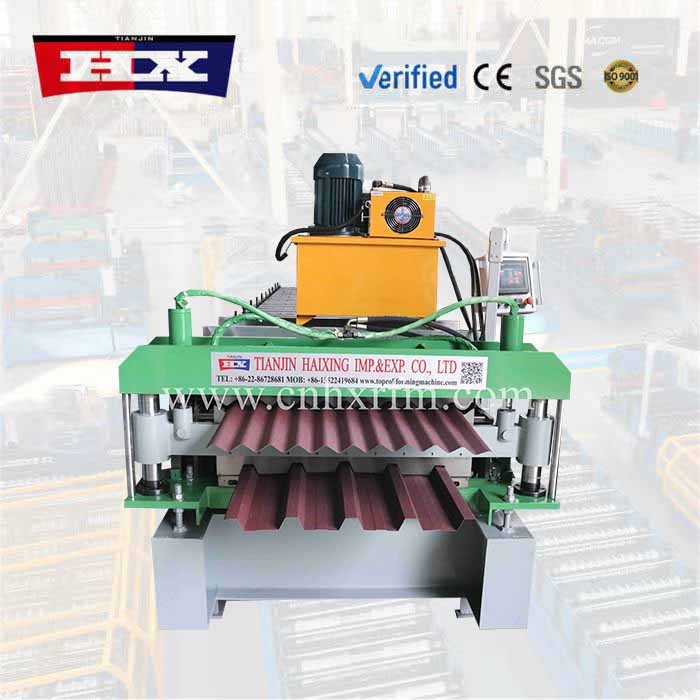

Model: HX-ibr roof sheet forming
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com
Haixing Industrial Group Co., Ltd. brings over 20 years of roll forming expertise to the design and production of our ibr roof sheet forming machine—a rugged, high-efficiency system that has become a preferred choice for roofing manufacturers across six continents.

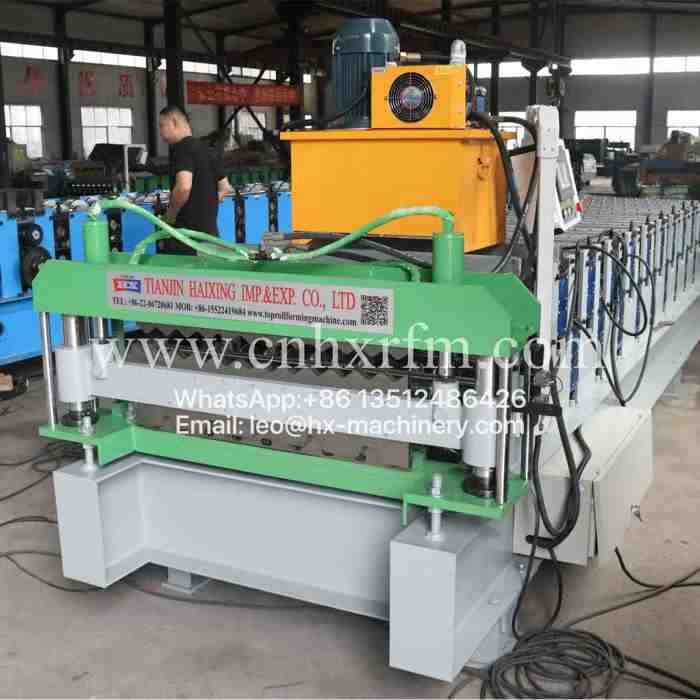

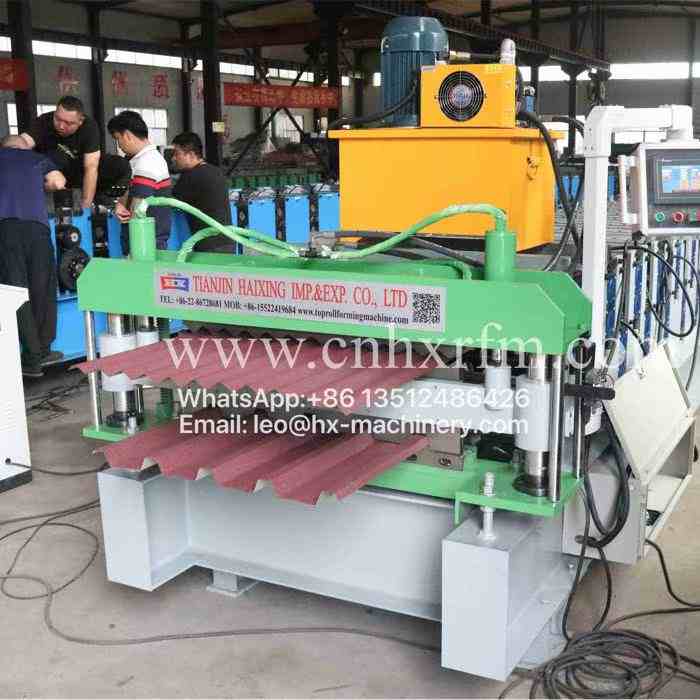

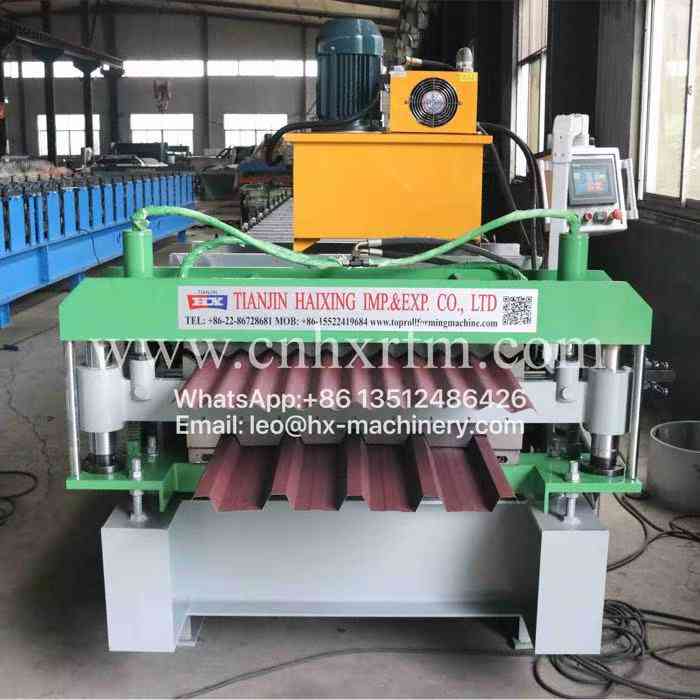

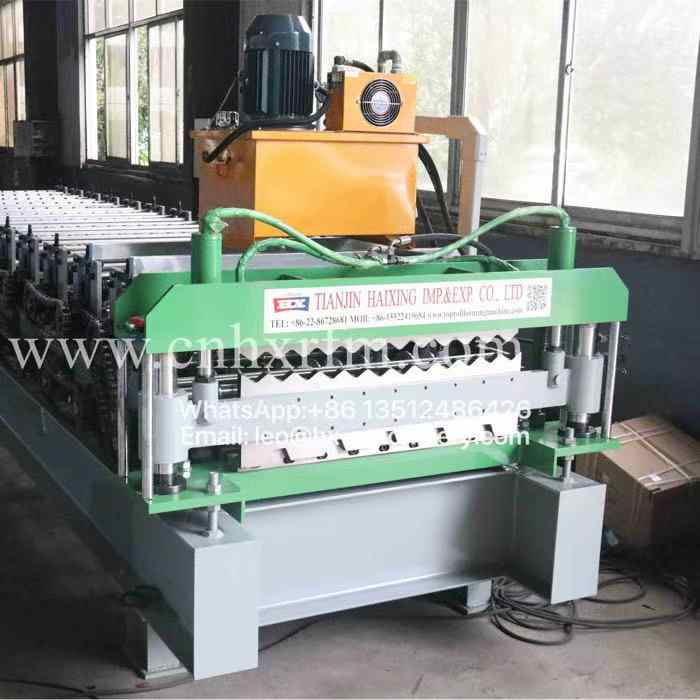

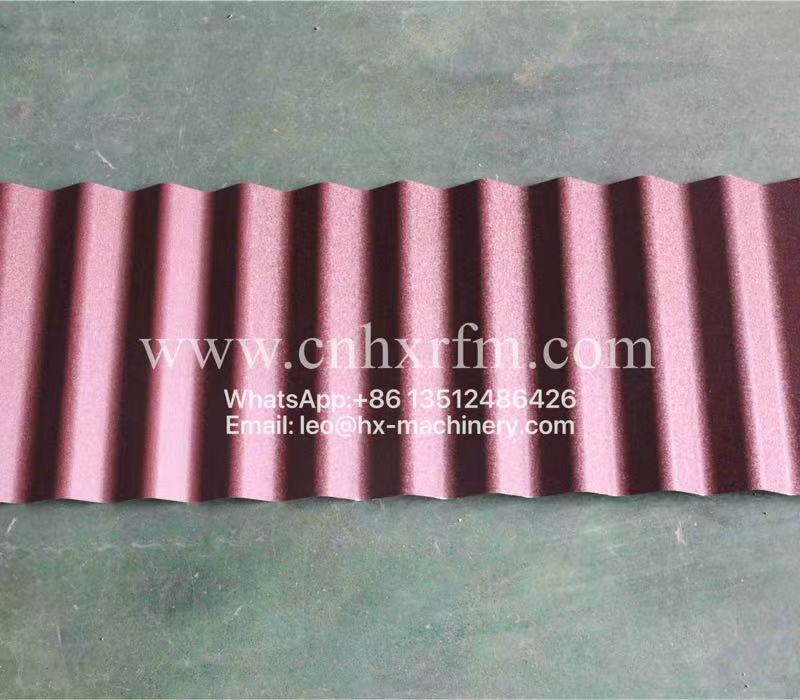

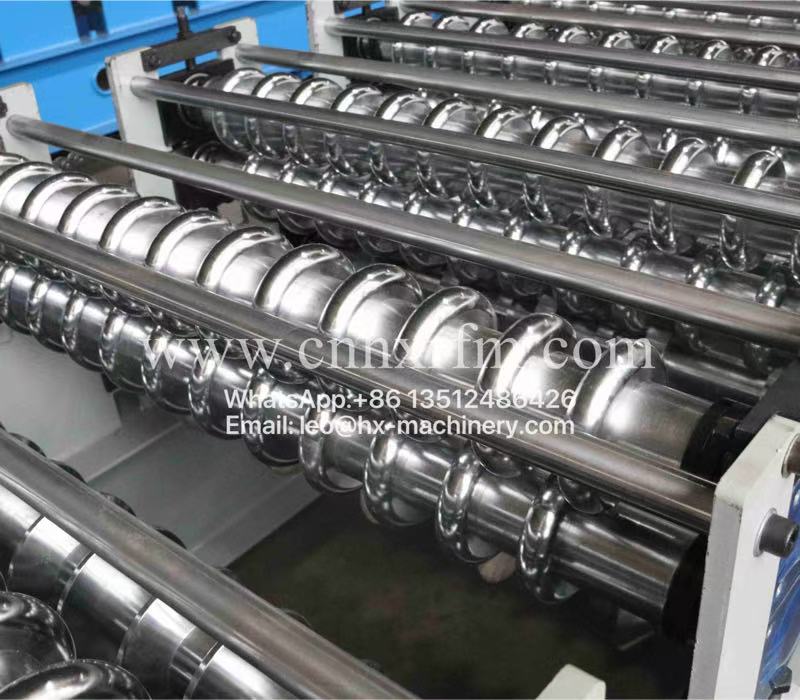

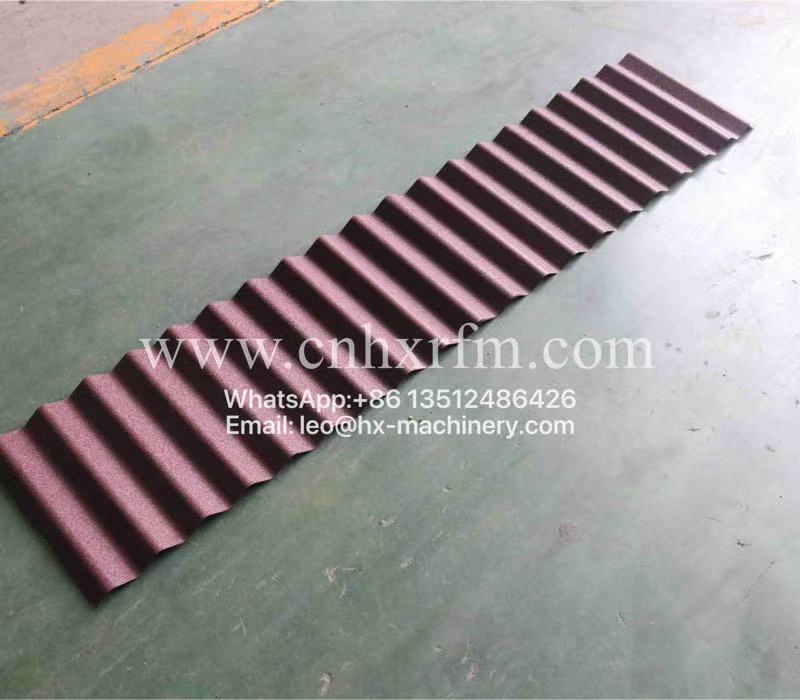

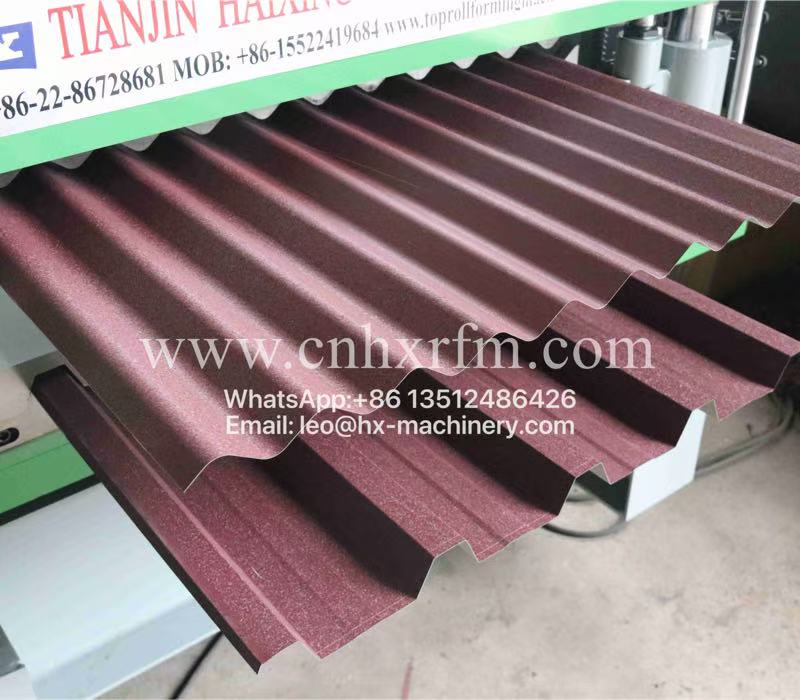

Our ibr roof sheet forming machine is built with a heavy-duty frame, precision-ground rollers, and a reliable hydraulic shearing system that ensures each panel is produced with clean cuts, uniform ribs, and consistent flatness. It accommodates coil thicknesses ranging from 0.25mm to 0.8mm and widths up to 1,250mm, producing IBR sheets in customizable lengths to suit various structural and architectural requirements. Options such as automatic punching units, stackers, and embossing rollers can be integrated to enhance production flexibility and streamline downstream handling.
What distinguishes our ibr roof sheet forming machine in markets like Argentina, Malaysia, Nigeria, and the UAE is its ability to combine high-speed operation with low energy consumption—delivering stable output at 10–14 meters per minute while minimizing material waste and power usage. The PLC-based control system simplifies operation, allowing workers to store up to 30 different sheet configurations and switch between orders quickly. Customers also appreciate our thorough pre-shipment testing, detailed installation guides, and responsive remote troubleshooting support, which together ensure a smooth startup and long-term reliability.
Below you will find the detailed technical specifications of this ibr roof sheet forming machine, along with layout suggestions and available customization packages.
Machine parameters
| No. |
Ibr roof sheet forming machine |
|
| 1 |

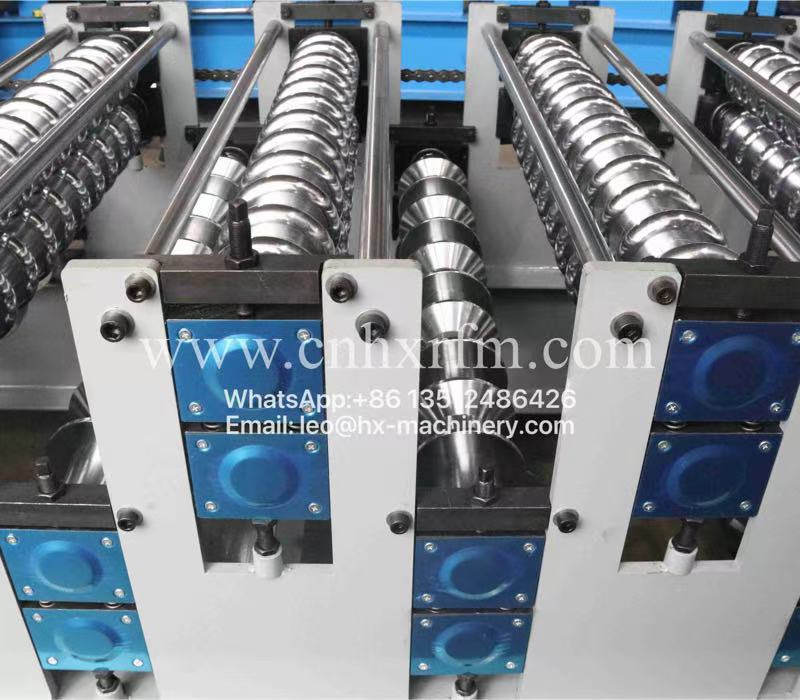

Number of rollers |
9 y 13 rollers |
| 2 |
Overall dimensions
|
6.2 × 1.6 × 1.8 m |
| 3 |
Main motor power |
5.5 kW |
| 4 |
Hydraulic motor power |
4 kW |
| 5 |
Sheet thickness |
0.3–0.8 mm |
| 6 |
Production speed |
10–15 m/min |
| 7 |
Cutter blade material |
Cr12MoV |
| 8 |
Roller shaft diameter |
Φ70 mm |
| 9 |
Total weight |
Approx. 4500 kg |
| 10 |
Main frame structure |
350 mm H‑beam |
| 11 |
Side‑plate thickness |
16 mm |
| 12 |
Processing accuracy |
Within ±1.0 mm |
| 13 |
Chain & sprocket size |
1‑inch |
| 14 |
Voltage |
380V 50Hz three‑phase or as per customer’s requirement |
| 15 |
Control system |
PLC |
| 16 |
Frequency converter |
Domestic brand |
| 17 |
Roller material |
45# forged steel with chrome‑plated surface |
| 18 |
Length tolerance |
±2 mm |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
Clients Showing
