Model: HX-ibr roll forming
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com
Haixing Industrial Group Co., Ltd. , with over 20 years of dedicated service in the roll forming industry, is proud to offer a premium ibr roll forming machine for sale that delivers precision, durability, and high productivity for roofing panel manufacturers across the globe.

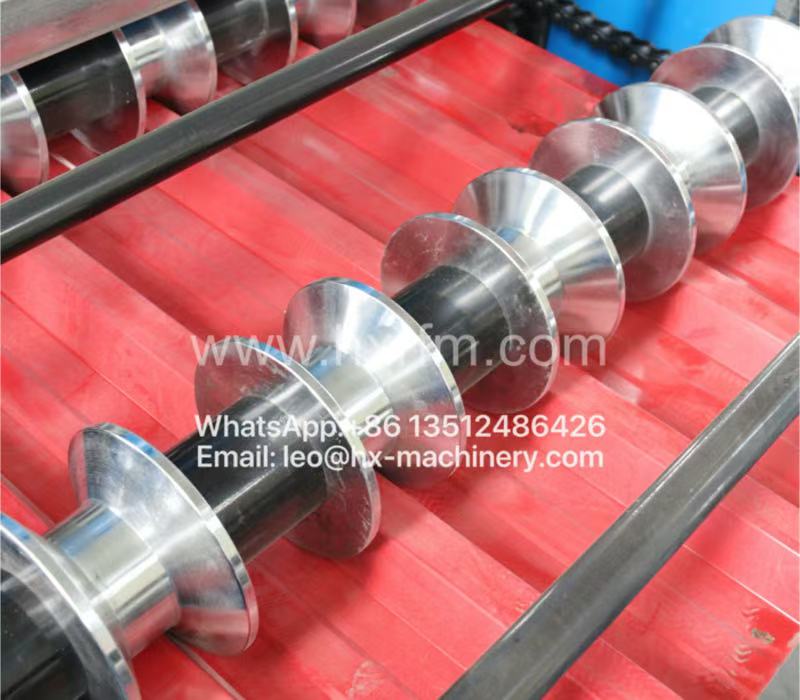

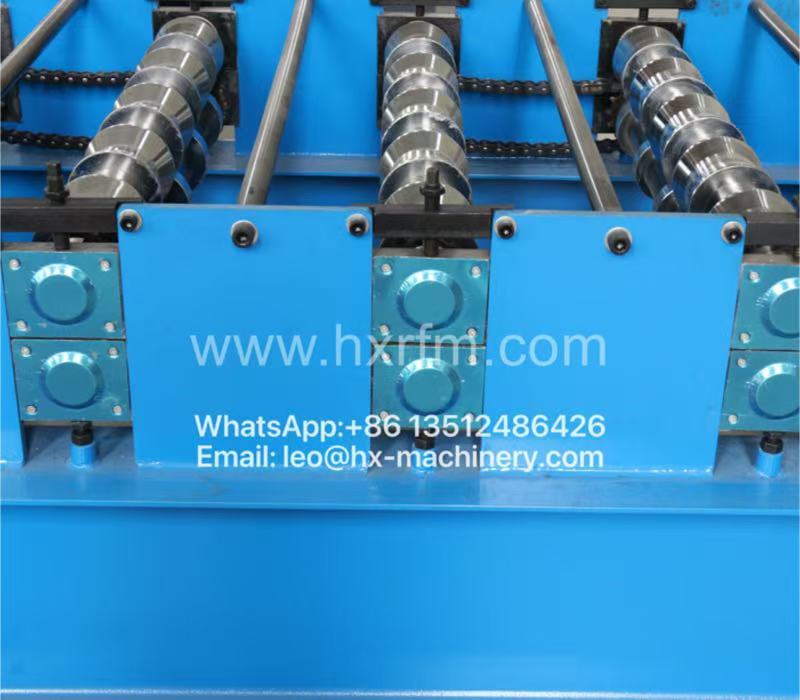

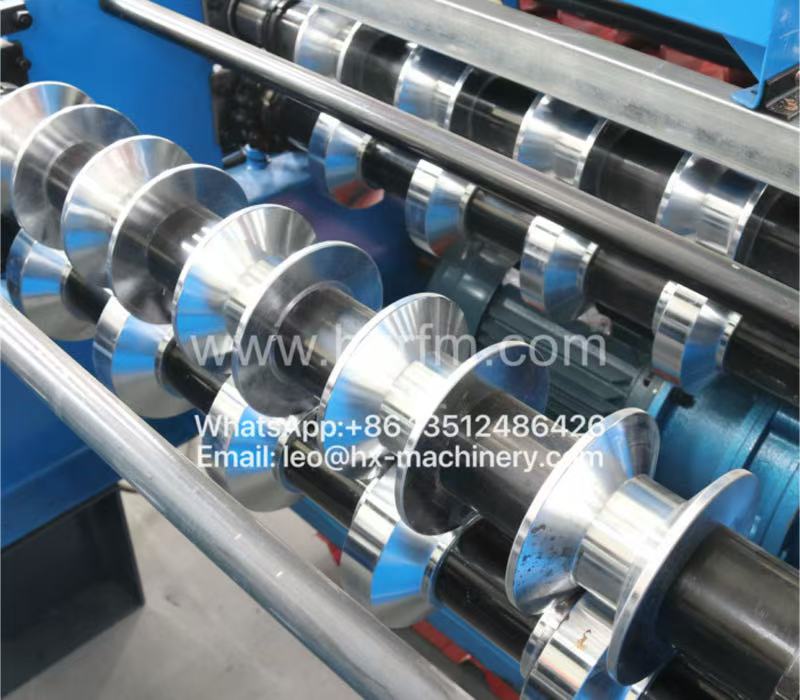

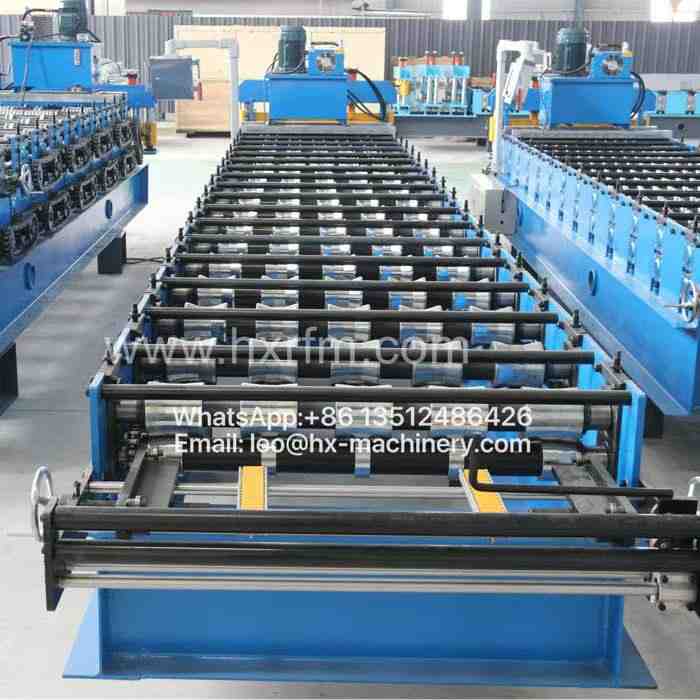

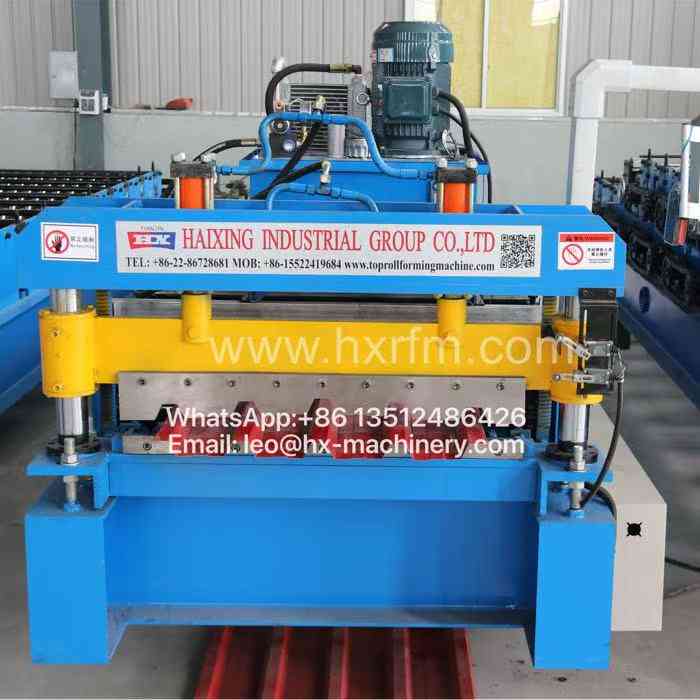

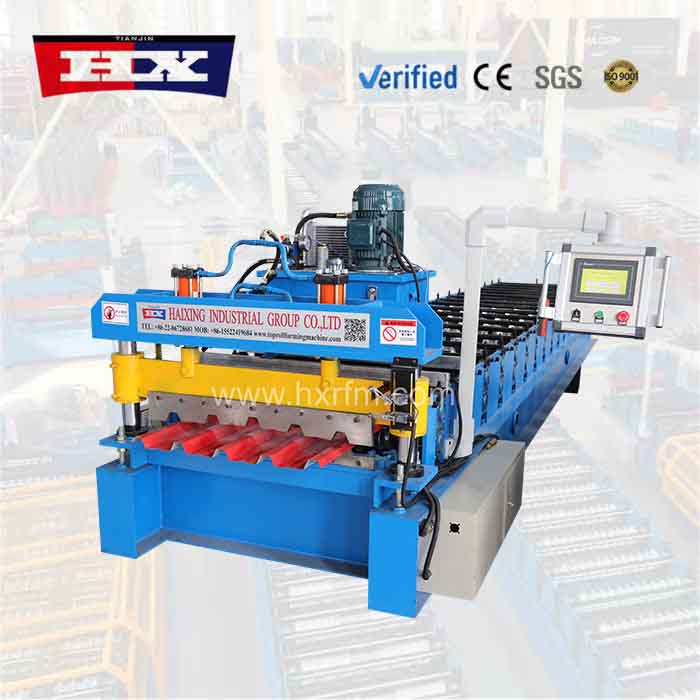

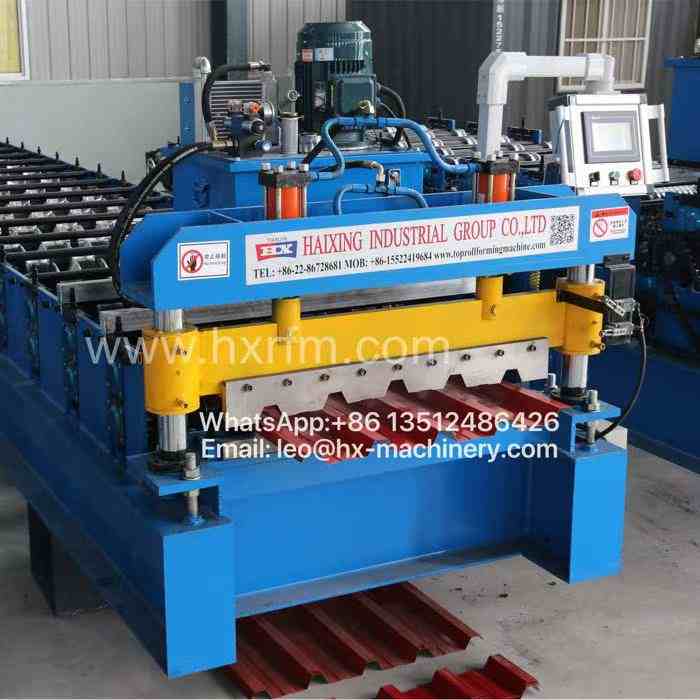

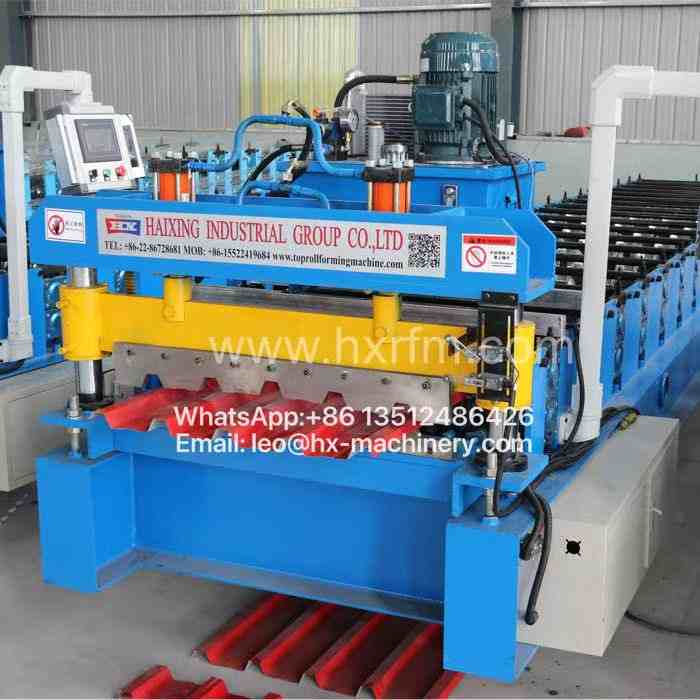

This ibr roll forming machine for sale features a robust construction with 16 to 18 precision roller stations, a heavy-duty hydraulic cutting system, and an advanced PLC controller for accurate length measurement and hole punching. Customizations—such as different wave profiles, embossing patterns, automatic stacking, and additional punch units—are available to meet varied project requirements.
What makes this ibr roll forming machine for sale especially attractive to buyers in markets like Peru, the Philippines, Egypt, and the UAE is its combination of competitive factory-direct pricing, fast delivery (typically 20–25 days), and comprehensive after-sales support. Our team provides installation blueprints, operational video guides, and remote technical assistance to ensure a smooth startup. Many customers have reported increased production efficiency and reduced material waste within weeks of operation, making this machine a solid long-term investment.
Below you will find the full technical specifications, configuration options, and a sample quotation for this ibr roll forming machine for sale.
Machine parameters
| No. |
Ibr roll forming machine for sale |
|
| 1 |
Number of rollers |
18 rollers |
| 2 |
Overall dimensions
|
8.7 × 1.6 × 1.8 m |
| 3 |
Main motor power |
5.5 kW |
| 4 |
Hydraulic motor power |
4 kW |
| 5 |
Sheet thickness |
0.3–0.8 mm |
| 6 |
Production speed |
10–15 m/min |
| 7 |
Cutter blade material |
Cr12MoV |
| 8 |
Roller shaft diameter |
Φ70 mm |
| 9 |
Total weight |
Approx. 4500 kg |
| 10 |
Main frame structure |
350 mm H‑beam |
| 11 |
Side‑plate thickness |
16 mm |
| 12 |
Processing accuracy |
Within ±1.0 mm |
| 13 |
Chain & sprocket size |
1‑inch |
| 14 |
Voltage |
380V 50Hz three‑phase or as per customer’s requirement |
| 15 |
Control system |
PLC |
| 16 |
Frequency converter |
Domestic brand |
| 17 |
Roller material |
45# forged steel with chrome‑plated surface |
| 18 |
Length tolerance |
±2 mm |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
Clients Showing
