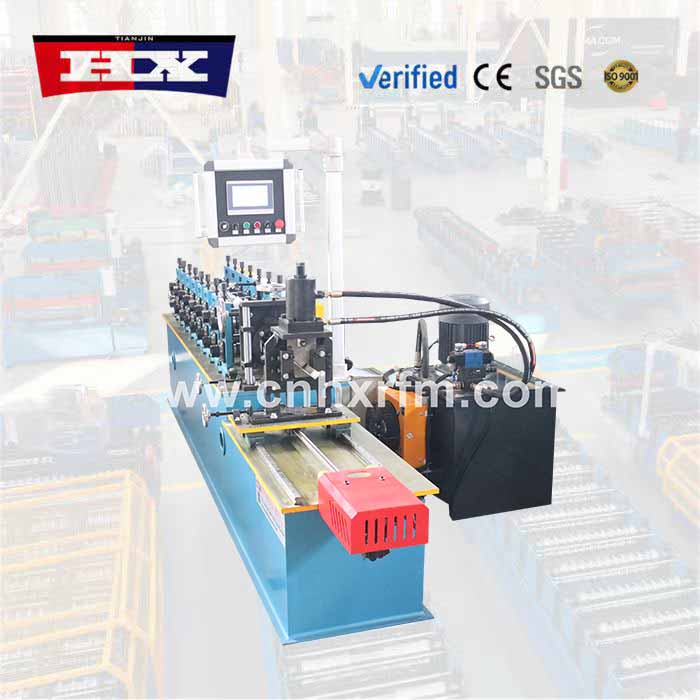

Model: HX-steel angle roll forming
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com
Angles are among the most basic yet essential profiles in metal fabrication—used for bracing, framing, supports, and countless structural applications. But producing them consistently, with sharp corners and straight legs, takes more than just a simple set of rolls. That’s the challenge our steel angle roll forming machine was designed to meet.

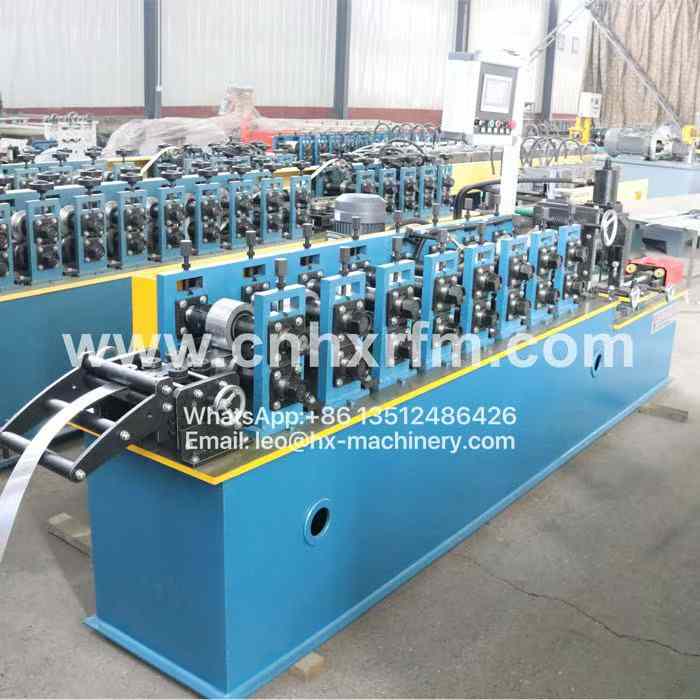

Our steel angle roll forming machine uses a carefully staged roll sequence that forms the material evenly, avoiding corner stretching or leg distortion—common issues when forming angles at speed. It handles equal and unequal leg configurations, with adjustable widths and thicknesses to suit a variety of specifications. The cutting system delivers clean, square ends, and the control interface makes setup straightforward so operators can switch between profiles without losing momentum.
What really sets this steel angle roll forming machine apart is its stability over long production runs. The frame is built to resist deflection, the rollers are hardened for extended tool life, and the drive system delivers consistent speed regardless of material variations. Customers also value the practical support we provide—from setup guidance to maintenance tips and fast parts access. With our steel angle roll forming machine, you get reliable output, lower scrap rates, and a machine that keeps performing shift after shift.
Machine parameters
| No. |
Steel angle roll forming machine |
|
| 1 |
Cutting blade |
Cr12MoV, heat‑treated to HRC 58‑60 |
| 2 |
Punching & cutting
|
Hydraulic cutting |
| 3 |
Shaft diameter |
50 mm solid shaft with anti‑back‑up washer, high‑quality 45# forged steel |
| 4 |
Running speed |
0‑50 m/min without punching |
| 5 |
Forming stations |
12 stations |
| 6 |
Roller shaft material |
45# steel |
| 7 |

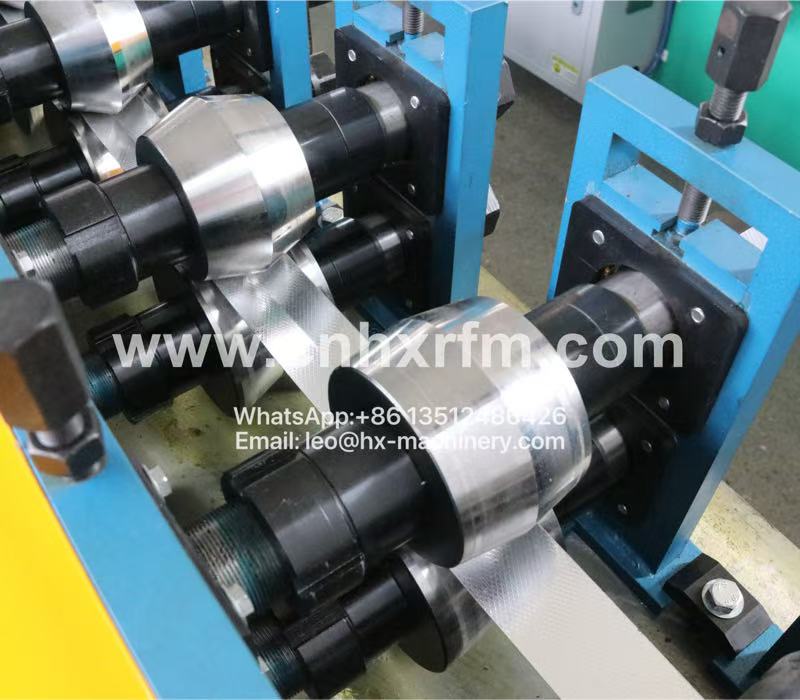

Forming roller |
Cr12, heat‑treated hardness HRC 58‑60 |
| 8 |
Transmission type |
Gear drive |
| 9 |
Control cabinet |
Domestic components |
| 10 |
Voltage |
380 V, 50 Hz, 3‑phase power supply |
| 11 |
Length tolerance |
±2 mm |
| 12 |
Cutting tolerance |
±1.0 mm |
| 13 |
PLC display languages |
Chinese, English, Spanish |
| 14 |
Hydraulic oil pipe |
2 pcs of 3‑meter pipe |
| 15 |
Precision counting wheel |
2 pcs |
| 16 |
Solenoid valve |
2 pcs(at least 6 extra solenoid valve plug connectors) |
| 17 |
Fuse |
2 pcs |
| 18 |
Bearing |
2 pcs |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.

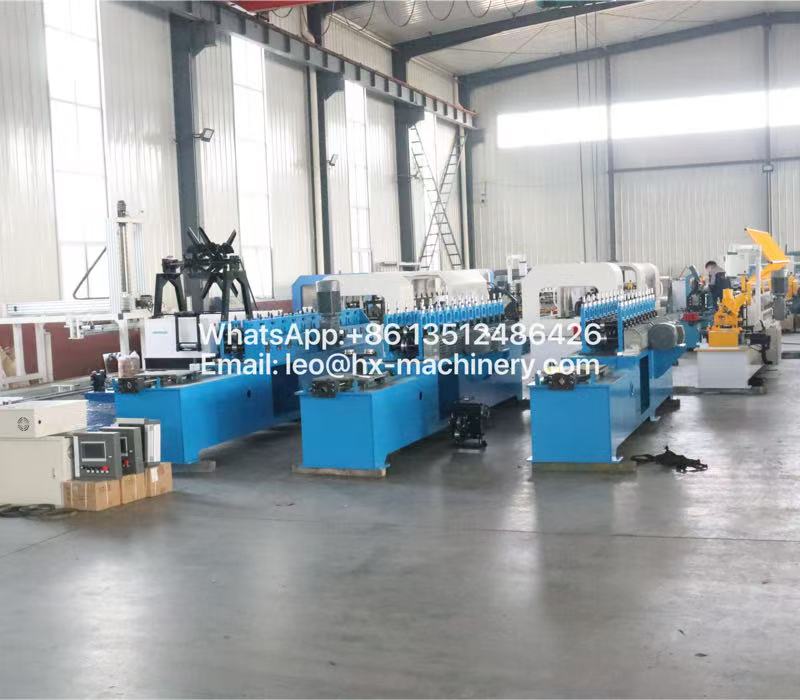

Clients Showing
