Model: HX-ibr sheeting
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com
Haixing Industrial Group Co., Ltd. , with over 20 years of experience in the roll forming industry, is currently offering a high-quality ibr sheeting machine for sale that delivers precision, durability, and production efficiency—ideal for manufacturers looking to expand their roofing product lines.

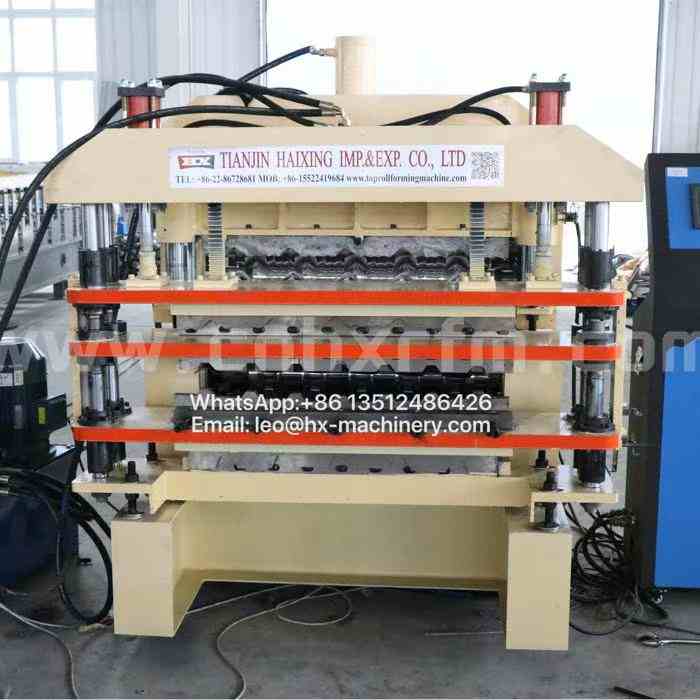

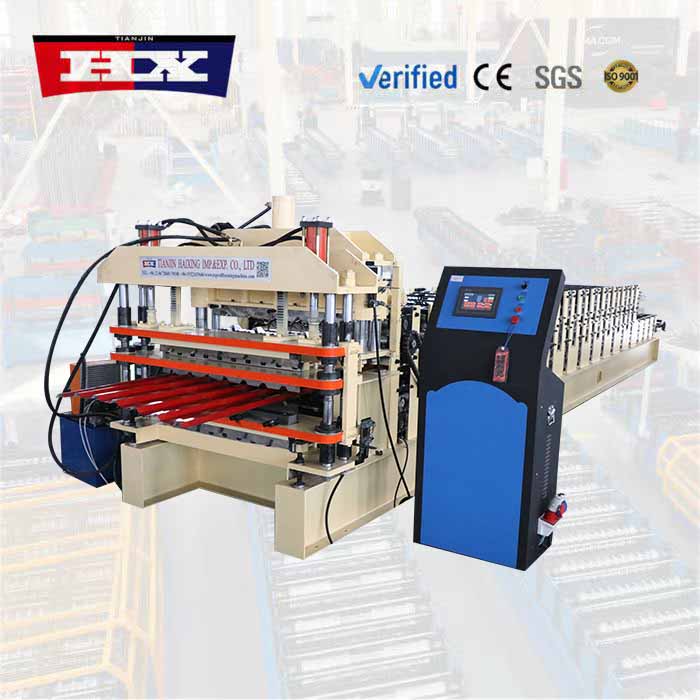

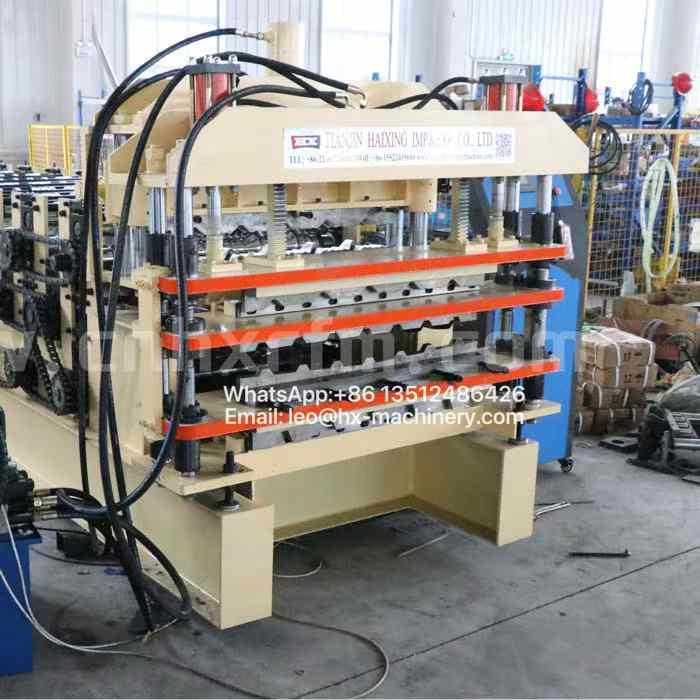

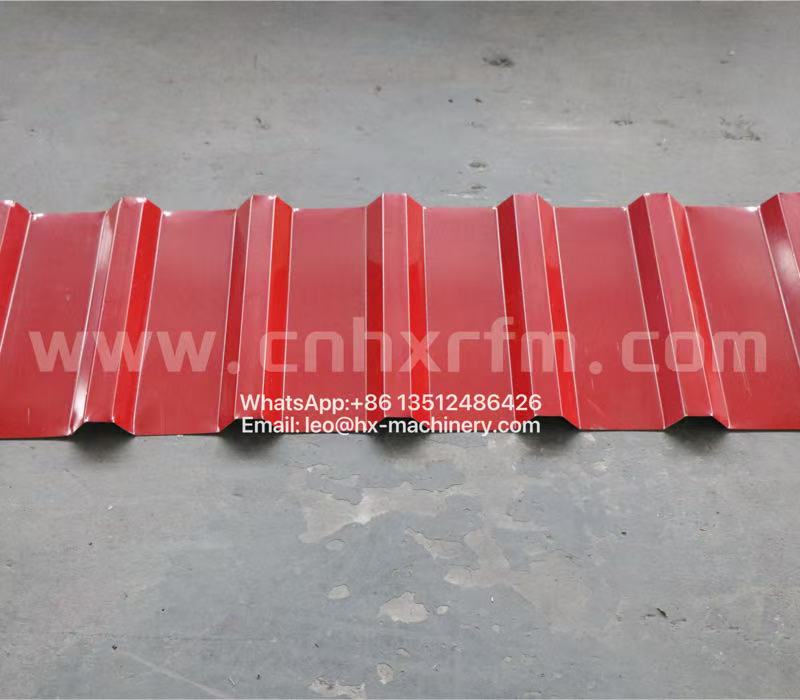

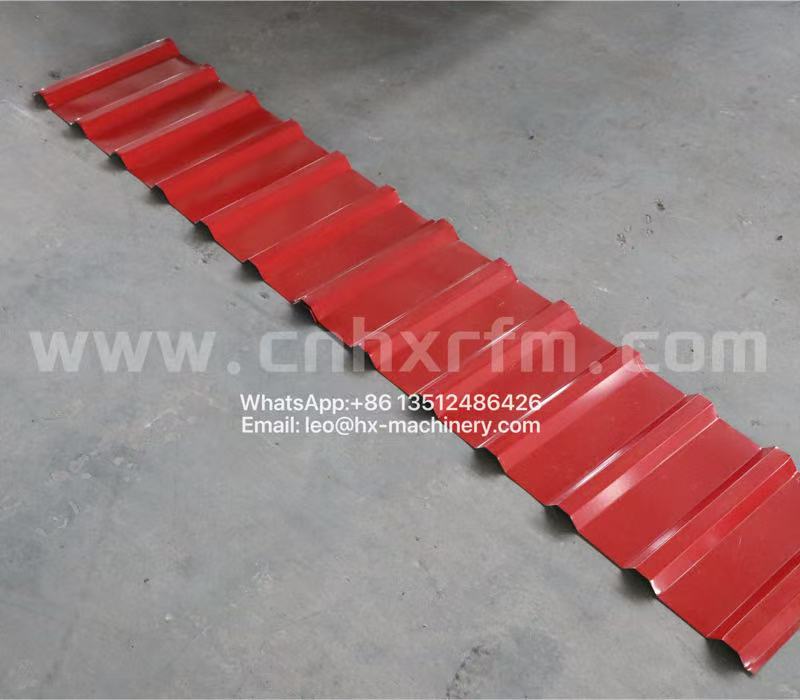

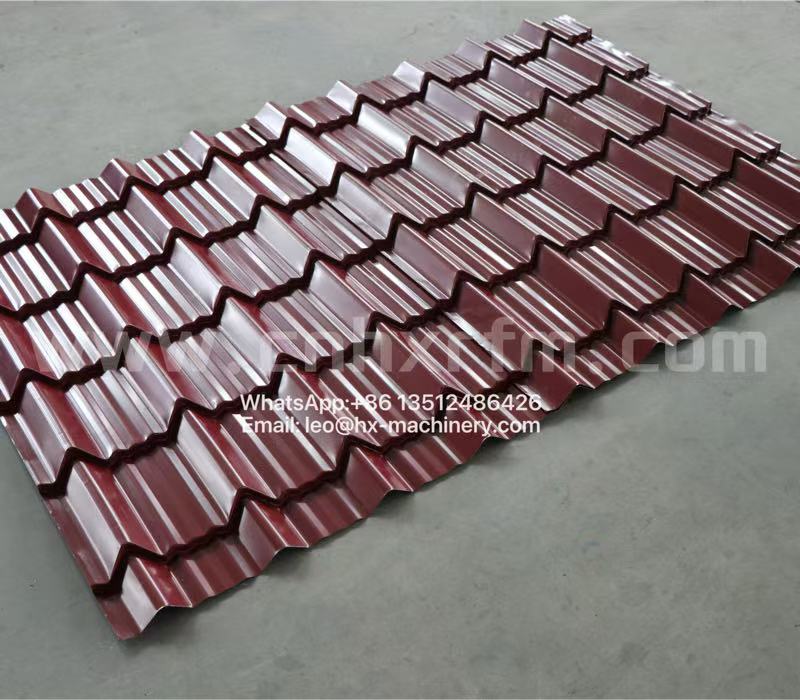

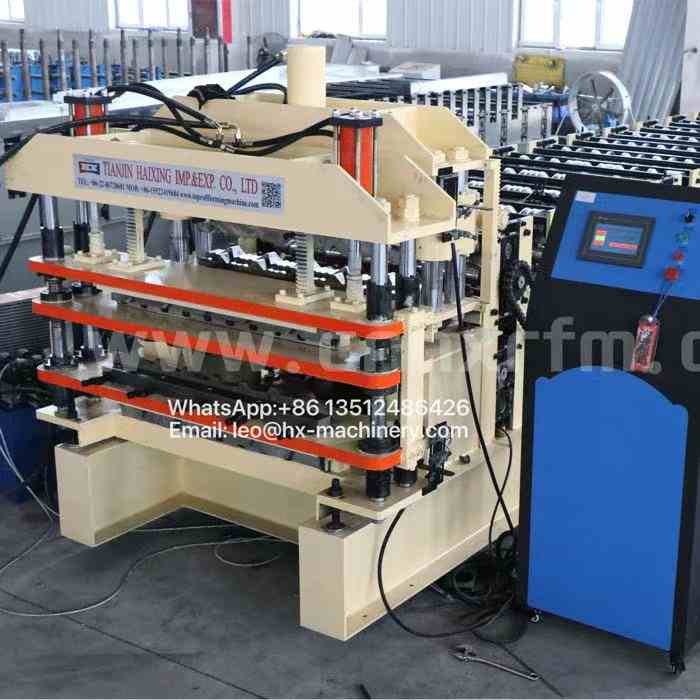

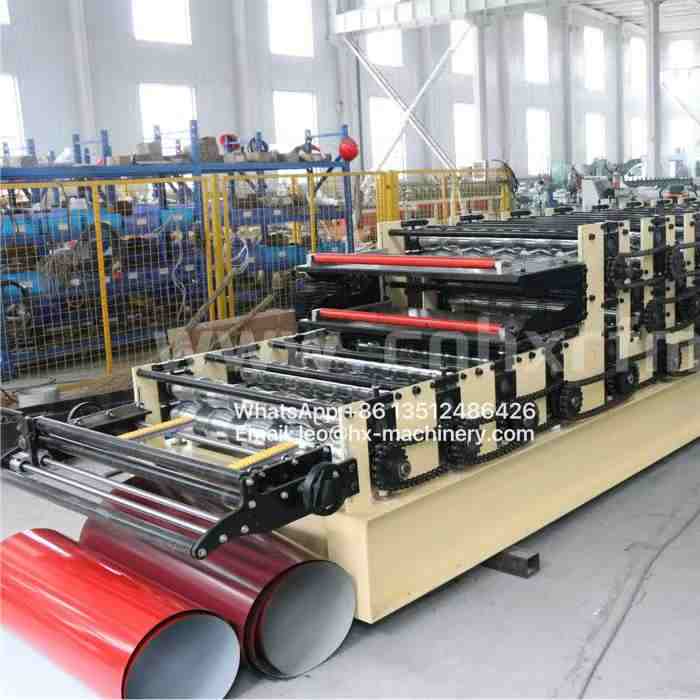

This ibr sheeting machine for sale is engineered to produce IBR (Inverted Box Rib) sheets with exceptional accuracy, featuring a heavy-duty frame, 16 precision forming stations, and a reliable hydraulic cutting system that ensures clean, burr-free edges. Additional options include automatic stacking, remote control operation, and pre-punching units to enhance production flexibility.
What makes this ibr sheeting machine for sale a standout choice in markets such as the Philippines, Ghana, the UAE, and Bolivia is its user-friendly design, low maintenance requirements, and fast changeover capabilities. The machine’s PLC control system allows operators to save multiple profile recipes, reducing downtime between order changes and ensuring consistent output quality. Many customers have reported a noticeable increase in production capacity and a reduction in material waste shortly after installation, helping them meet tight construction deadlines with ease.
For detailed specifications, configuration options, and a personalized quote for this ibr sheeting machine for sale, please refer to the information below or contact our export team directly.
Machine parameters
| No. |
Ibr sheeting machine for sale |
|
| 1 |
Number of rollers |
18 y 13 y 18 rollers |
| 2 |
Overall dimensions
|
8.7 × 1.6 × 1.8 m |
| 3 |
Main motor power |
5.5 kW |
| 4 |
Hydraulic motor power |
4 kW |
| 5 |
Sheet thickness |
0.3–0.8 mm |
| 6 |
Production speed |
10–15 m/min |
| 7 |
Cutter blade material |
Cr12MoV |
| 8 |
Roller shaft diameter |
Φ70 mm |
| 9 |
Total weight |
Approx. 4500 kg |
| 10 |
Main frame structure |
350 mm H‑beam |
| 11 |
Side‑plate thickness |
16 mm |
| 12 |
Processing accuracy |
Within ±1.0 mm |
| 13 |

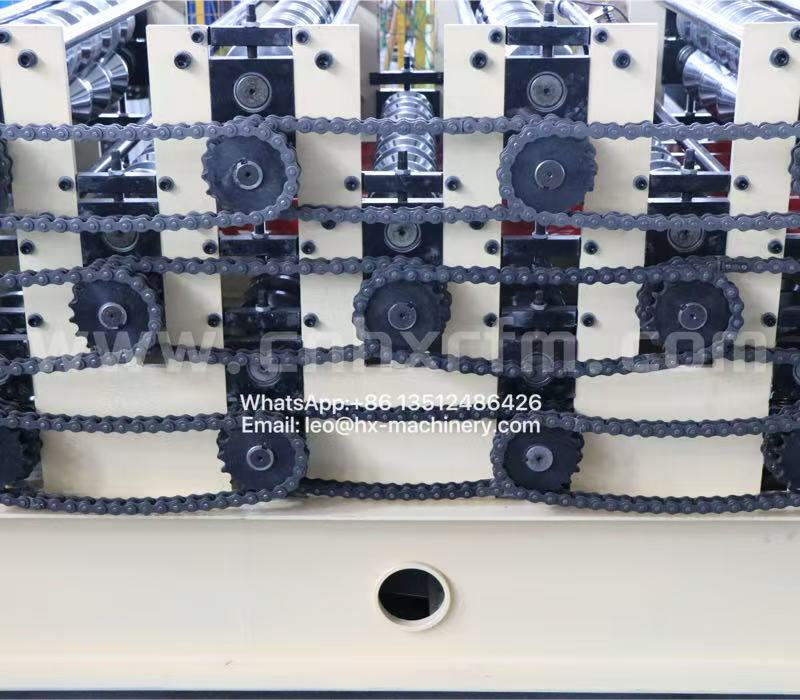

Chain & sprocket size |
1‑inch |
| 14 |
Voltage |
380V 50Hz three‑phase or as per customer’s requirement |
| 15 |
Control system |
PLC |
| 16 |
Frequency converter |
Domestic brand |
| 17 |

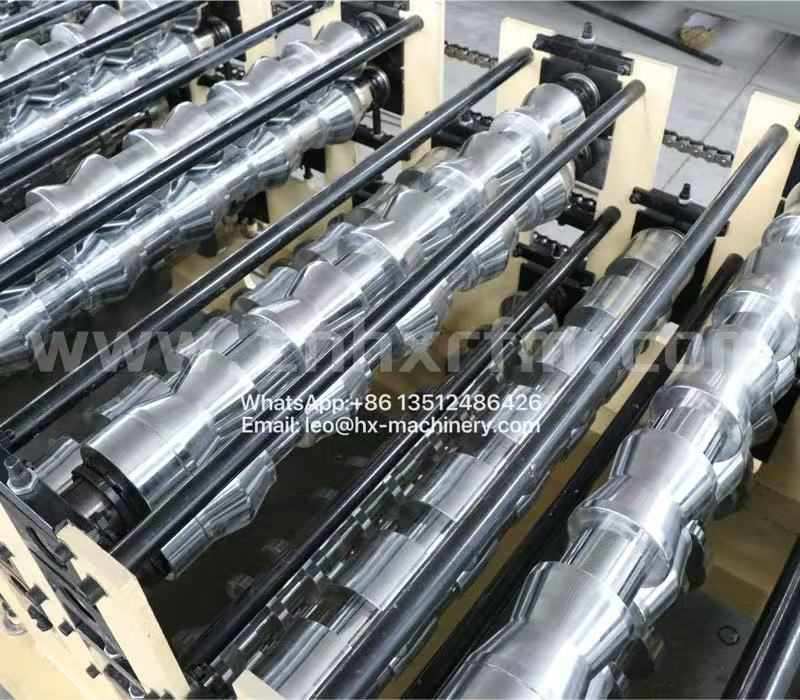

Roller material |
45# forged steel with chrome‑plated surface |
| 18 |
Length tolerance |
±2 mm |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
Clients Showing
