Model: HX-corrugated sheet
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com
Haixing Industrial Group Co., Ltd. , with over 20 years of experience in metal forming equipment, offers a robust corrugated sheet making machine designed to produce high-quality corrugated panels for roofing, fencing, and industrial cladding applications—delivering both strength and aesthetic appeal to building projects worldwide.

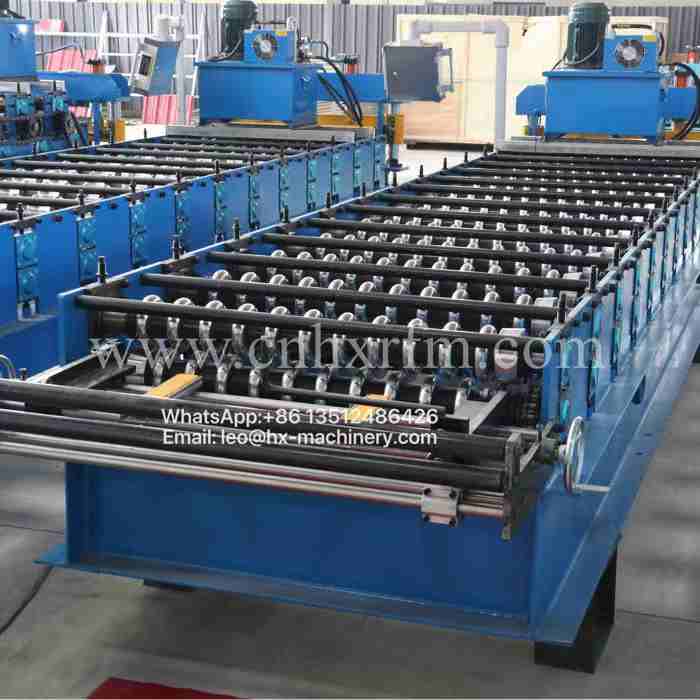

Our corrugated sheet making machine features a progressive roll forming system with 12 to 16 precision stations that gradually shape flat coil into deep, uniform corrugations without stressing the material surface. Optional add-ons include embossing rollers for additional rigidity, hole-punching units for pre-drilled fastening points, and automatic stacking systems for streamlined handling.
What sets this corrugated sheet making machine apart for buyers in Algeria, Myanmar, Ecuador, and Sri Lanka is its combination of high output speed, simple operation, and cost-effective maintenance. The user-friendly PLC interface allows operators to store multiple panel length and hole pattern recipes, reducing setup time significantly between production runs. Our clients appreciate the machine's stable performance, minimal scrap generation, and our reliable technical support—including commissioning assistance, operation guides, and prompt spare parts delivery.
Below are the complete technical specifications of this corrugated sheet making machine, along with profile drawings and recommended workshop layouts.
Machine parameters
| No. |
Corrugated sheet making machine |
|
| 1 |
Number of rollers |
13 rollers |
| 2 |
Overall dimensions
|
6.2 × 1.6 × 1.8 m |
| 3 |
Main motor power |
5.5 kW |
| 4 |
Hydraulic motor power |
4 kW |
| 5 |
Sheet thickness |
0.3–0.8 mm |
| 6 |
Production speed |
10–15 m/min |
| 7 |
Cutter blade material |
Cr12MoV |
| 8 |
Roller shaft diameter |
Φ70 mm |
| 9 |
Total weight |
Approx. 4500 kg |
| 10 |
Main frame structure |
350 mm H‑beam |
| 11 |
Side‑plate thickness |
16 mm |
| 12 |
Processing accuracy |
Within ±1.0 mm |
| 13 |
Chain & sprocket size |
1‑inch |
| 14 |
Voltage |
380V 50Hz three‑phase or as per customer’s requirement |
| 15 |
Control system |
PLC |
| 16 |
Frequency converter |
Domestic brand |
| 17 |
Roller material |
45# forged steel with chrome‑plated surface |
| 18 |
Length tolerance |
±2 mm |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
Clients Showing
