Model: HX-corrugated roll machine
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com
Haixing Industrial Group Co., Ltd. brings over 20 years of specialized experience to the design and production of the corrugated roll machine—a dependable solution for fabricators seeking consistent, high-quality corrugated sheeting for roofing, siding, and industrial cladding applications.

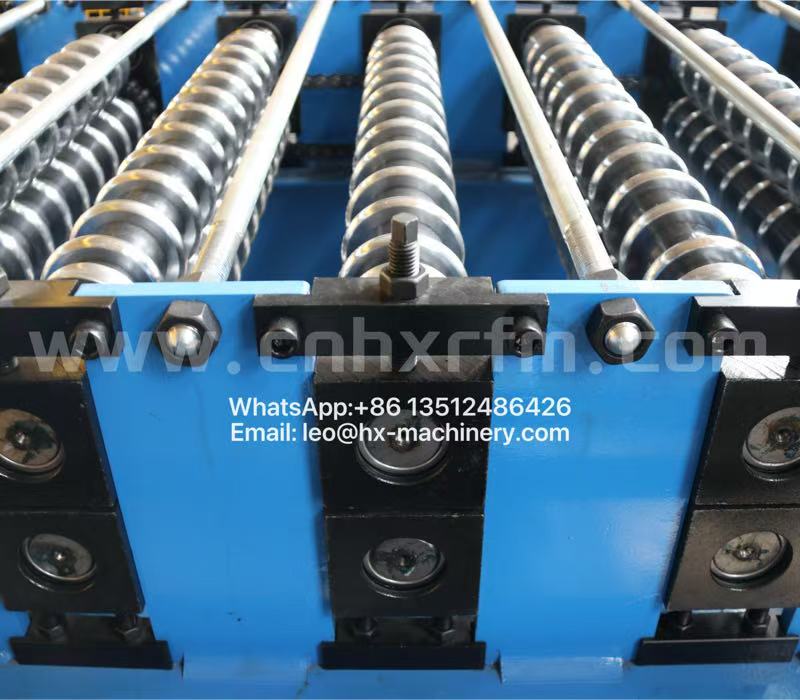

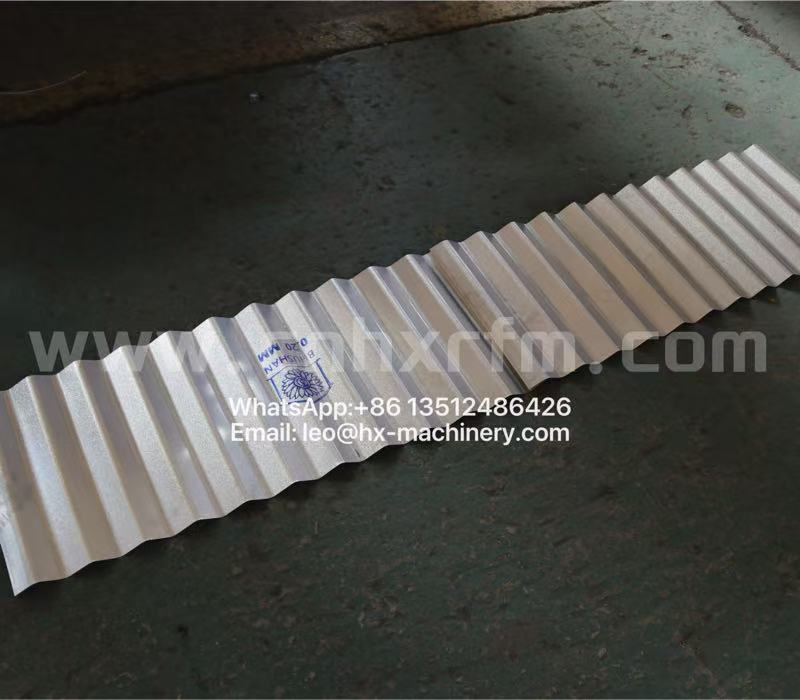

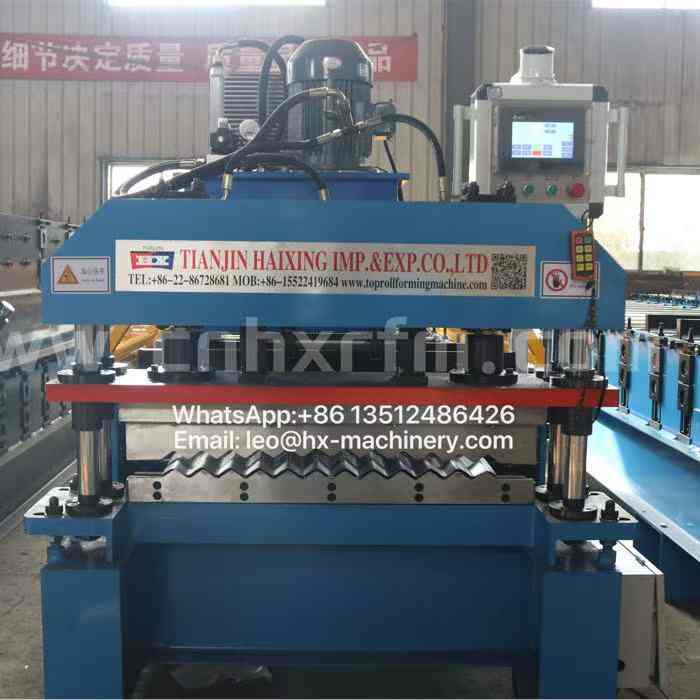

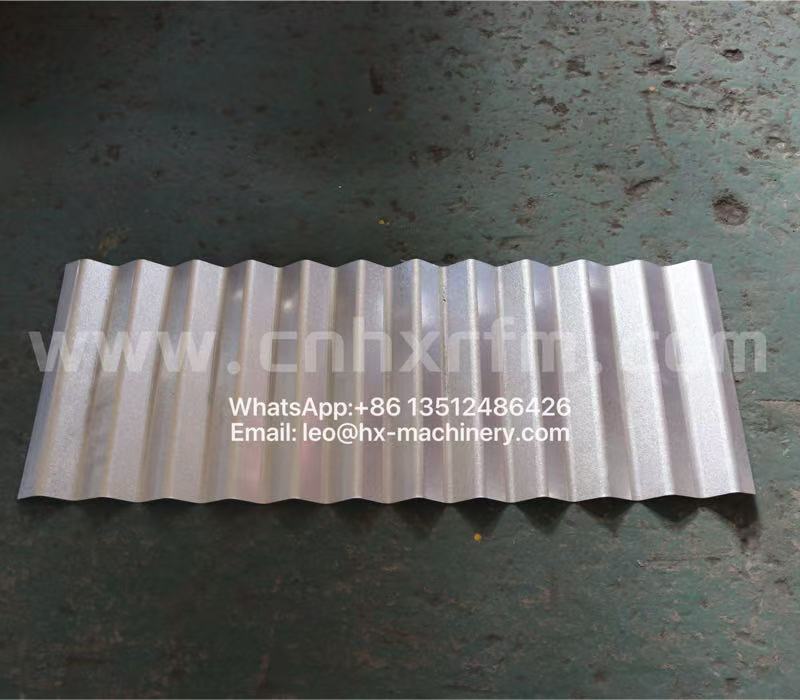

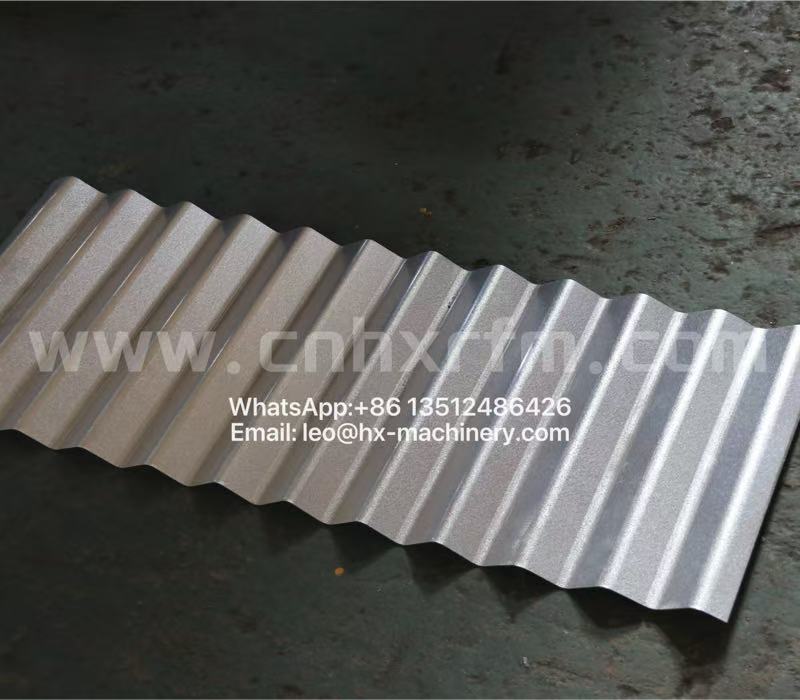

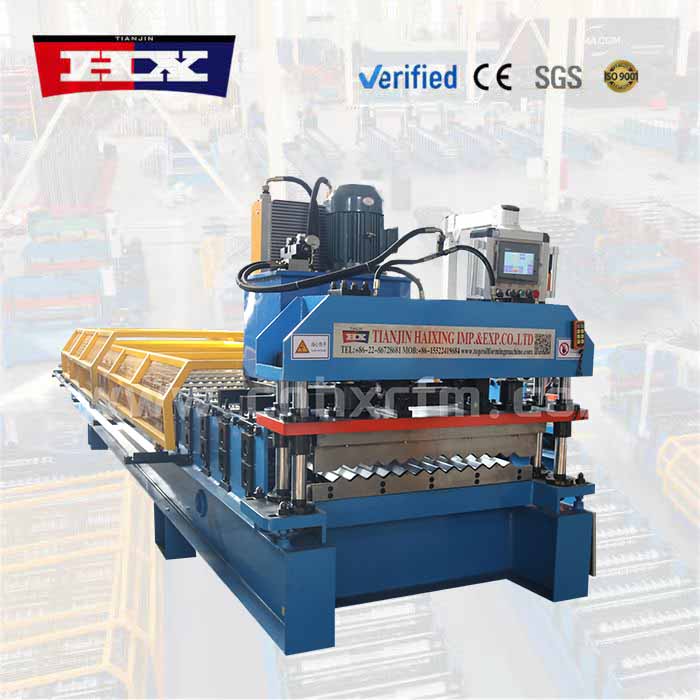

Our corrugated roll machine is engineered with a heavy-duty frame and precision-ground rollers that ensure uniform wave formation across the entire sheet length. It accommodates a variety of material thicknesses, from 0.3mm to 0.8mm, and supports multiple corrugation profiles, including classic wave patterns and deep-rib designs. The hydraulic cutting system delivers clean, burr-free edges, while the optional pre-punching unit allows for precise hole placement to match standard fastener layouts.
What makes this corrugated roll machine a preferred choice among contractors and building material suppliers in markets such as Indonesia, Egypt, Mexico, and Kenya is its straightforward operation—simple controls, quick roller changes, and minimal training requirements. The machine's robust construction ensures long service life even in high-volume production settings, and our after-sales support includes remote troubleshooting, spare parts availability, and detailed maintenance guides to keep your line running smoothly.
Below are the complete technical specifications of this corrugated roll machine, along with the profile dimensions and production capacity data.
Machine parameters
| No. |
Corrugated roll machine |
|
| 1 |
Number of rollers |
13 rollers |
| 2 |
Overall dimensions
|
6.2 × 1.6 × 1.8 m |
| 3 |
Main motor power |
5.5 kW |
| 4 |
Hydraulic motor power |
4 kW |
| 5 |
Sheet thickness |
0.3–0.8 mm |
| 6 |
Production speed |
10–15 m/min |
| 7 |
Cutter blade material |
Cr12MoV |
| 8 |
Roller shaft diameter |
Φ70 mm |
| 9 |
Total weight |
Approx. 4500 kg |
| 10 |
Main frame structure |
350 mm H‑beam |
| 11 |
Side‑plate thickness |
16 mm |
| 12 |
Processing accuracy |
Within ±1.0 mm |
| 13 |
Chain & sprocket size |
1‑inch |
| 14 |
Voltage |
380V 50Hz three‑phase or as per customer’s requirement |
| 15 |
Control system |
PLC |
| 16 |
Frequency converter |
Domestic brand |
| 17 |
Roller material |
45# forged steel with chrome‑plated surface |
| 18 |
Length tolerance |
±2 mm |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
